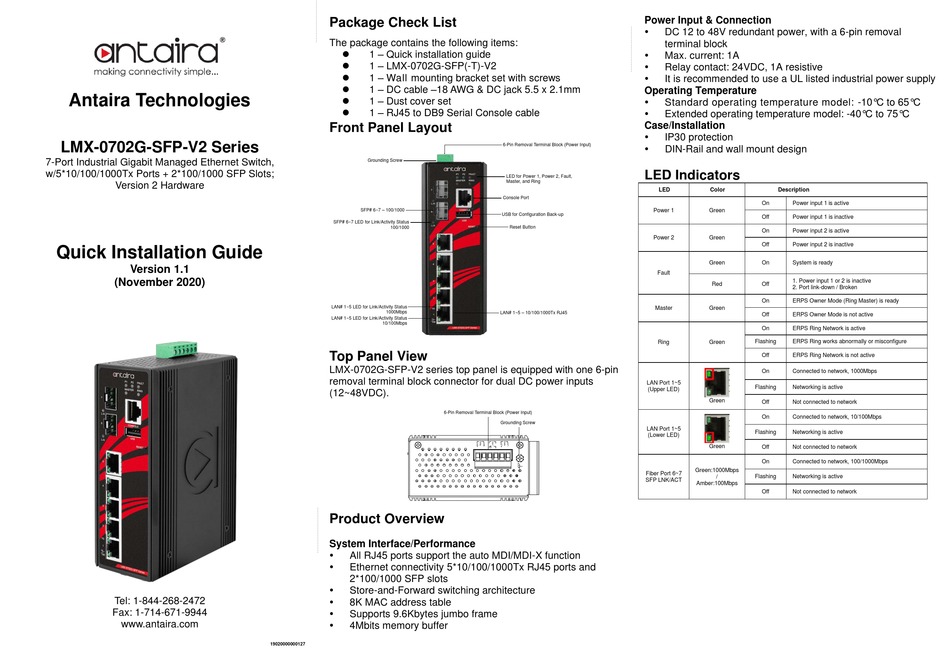

ANTAIRA LMX-0702G-SFP-V2 Series Quick Installation Manual

Antaira Technologies
LMX-0702G-SFP-V2 Series
7-Port Industrial Gigabit Managed Ethernet Switch,
w/5*10/100/1000Tx Ports + 2*100/1000 SFP Slots;
Version 2 Hardware
Quick Installation Guide
Version 1.1
(November 2020)
Tel: 1-844-268-2472
Fax: 1-714-671-9944
www.antaira.com
Package Check List
The package contains the following items:
⚫ 1 – Quick installation guide
⚫ 1 – LMX-0702G-SFP(-T)-V2
⚫ 1 – Wall mounting bracket set with screws
⚫ 1 – DC cable –18 AWG & DC jack 5.5 x 2.1mm
⚫ 1 – Dust cover set
⚫ 1 – RJ45 to DB9 Serial Console cable

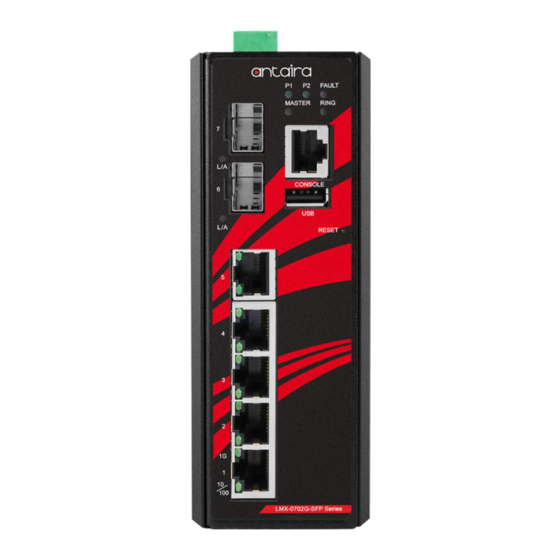

Front Panel Layout
Grounding Screw
SFP# 6~7 – 100/1000
SFP# 6~7 LED for Link/Activity Status
100/1000
LAN# 1~5 LED for Link/Activity Status
1000Mbps
LAN# 1~5 LED for Link/Activity Status
10/100Mbps
Top Panel View
LMX-0702G-SFP-V2 series top panel is equipped with one 6-pin
removal terminal block connector for dual DC power inputs
(12~48VDC).
6-Pin Removal Terminal Block (Power Input)
Product Overview
System Interface/Performance

All RJ45 ports support the auto MDI/MDI-X function

Ethernet connectivity 5*10/100/1000Tx RJ45 ports and
2*100/1000 SFP slots

Store-and-Forward switching architecture

8K MAC address table

Supports 9.6Kbytes jumbo frame

4Mbits memory buffer
19020000000127
Power Input & Connection

DC 12 to 48V redundant power, with a 6-pin removal
terminal block

Max. current: 1A

Relay contact: 24VDC, 1A resistive

It is recommended to use a UL listed industrial power supply
Operating Temperature

Standard operating temperature model: -10°C to 65°C

Extended operating temperature model: -40°C to 75°C
Case/Installation

IP30 protection
6-Pin Removal Terminal Block (Power Input) 
DIN-Rail and wall mount design
LED Indicators
LED for Power 1, Power 2, Fault,
Master, and Ring
LED
Console Port
Power 1
USB for Configuration Back-up
Reset Button
Power 2
Fault
Master
LAN# 1~5 – 10/100/1000Tx RJ45
Ring
LAN Port 1~5
(Upper LED)
Grounding Screw
LAN Port 1~5
(Lower LED)
Fiber Port 6~7
SFP LNK/ACT
Color Description
On Power input 1 is active
Green
Off Power input 1 is inactive
On Power input 2 is active
Green
Off Power input 2 is inactive
Green On System is ready
1. Power input 1 or 2 is inactive
Red Off
2. Port link-down / Broken
On ERPS Owner Mode (Ring Master) is ready
Green
Off ERPS Owner Mode is not active
On ERPS Ring Network is active
Green Flashing ERPS Ring works abnormally or misconfigure
Off ERPS Ring Network is not active
On Connected to network, 1000Mbps
Flashing Networking is active
Green
Off Not connected to network
On Connected to network, 10/100Mbps
Flashing Networking is active
Green Off Not connected to network
On Connected to network, 100/1000Mbps
Green:1000Mbps
/ Flashing Networking is active
Amber:100Mbps
Off Not connected to network
