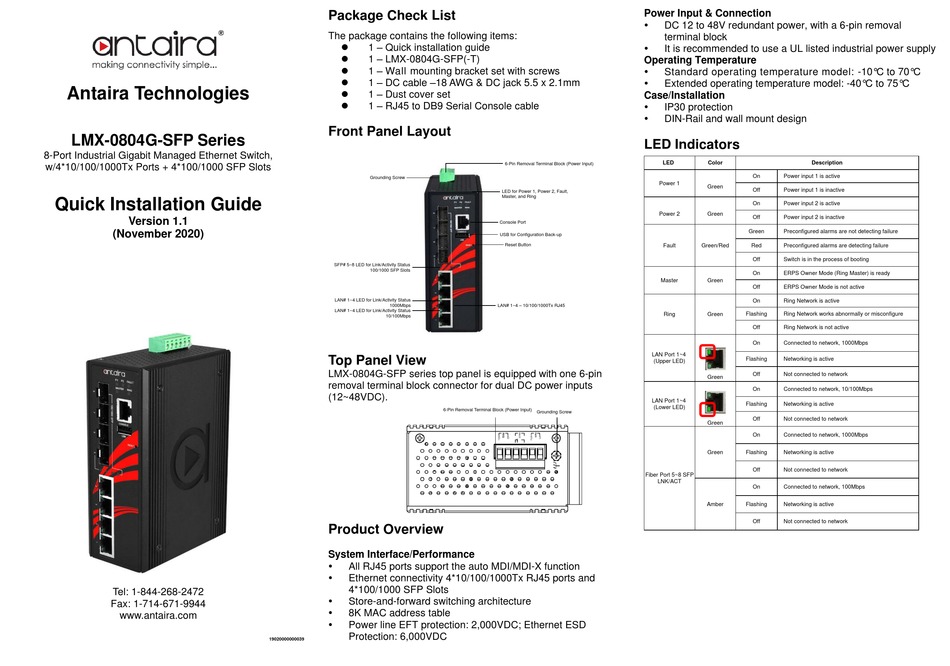

ANTAIRA LMX-0804G-SFP-T Quick Installation Manual

Antaira Technologies
LMX-0804G-SFP Series
8-Port Industrial Gigabit Managed Ethernet Switch,
w/4*10/100/1000Tx Ports + 4*100/1000 SFP Slots
Quick Installation Guide
Version 1.1
(November 2020)
Tel: 1-844-268-2472
Fax: 1-714-671-9944
www.antaira.com
Package Check List
The package contains the following items:
⚫ 1 – Quick installation guide
⚫ 1 – LMX-0804G-SFP(-T)
⚫ 1 – Wall mounting bracket set with screws
⚫ 1 – DC cable –18 AWG & DC jack 5.5 x 2.1mm
⚫ 1 – Dust cover set
⚫ 1 – RJ45 to DB9 Serial Console cable

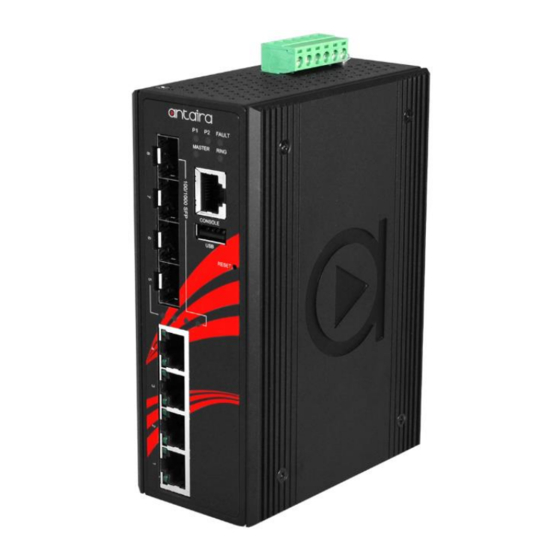

Front Panel Layout
Grounding Screw
SFP# 5~8 LED for Link/Activity Status
100/1000 SFP Slots
LAN# 1~4 LED for Link/Activity Status
1000Mbps
LAN# 1~4 LED for Link/Activity Status
10/100Mbps
Top Panel View
LMX-0804G-SFP series top panel is equipped with one 6-pin
removal terminal block connector for dual DC power inputs
(12~48VDC).
6-Pin Removal Terminal Block (Power Input)
Product Overview
System Interface/Performance

All RJ45 ports support the auto MDI/MDI-X function

Ethernet connectivity 4*10/100/1000Tx RJ45 ports and
4*100/1000 SFP Slots

Store-and-forward switching architecture

8K MAC address table

Power line EFT protection: 2,000VDC; Ethernet ESD
Protection: 6,000VDC
19020000000039
Power Input & Connection

DC 12 to 48V redundant power, with a 6-pin removal
terminal block

It is recommended to use a UL listed industrial power supply
Operating Temperature

Standard operating temperature model: -10°C to 70°C

Extended operating temperature model: -40°C to 75°C
Case/Installation

IP30 protection

DIN-Rail and wall mount design
LED Indicators
LED
6-Pin Removal Terminal Block (Power Input)
Power 1
LED for Power 1, Power 2, Fault,
Master, and Ring
Power 2
Console Port
USB for Configuration Back-up
Reset Button
Fault
Master
LAN# 1~4 – 10/100/1000Tx RJ45
Ring
LAN Port 1~4
(Upper LED)
LAN Port 1~4
(Lower LED)
Grounding Screw
Fiber Port 5~8 SFP
LNK/ACT
Color Description
On Power input 1 is active
Green
Off Power input 1 is inactive
On Power input 2 is active
Green
Off Power input 2 is inactive
Green Preconfigured alarms are not detecting failure
Green/Red Red Preconfigured alarms are detecting failure
Off Switch is in the process of booting
On ERPS Owner Mode (Ring Master) is ready
Green
Off ERPS Owner Mode is not active
On Ring Network is active
Flashing Ring Network works abnormally or misconfigure
Green
Off Ring Network is not active
On Connected to network, 1000Mbps
Flashing Networking is active
Off Not connected to network
Green
On Connected to network, 10/100Mbps
Flashing Networking is active
Off Not connected to network
Green
On Connected to network, 1000Mbps
Green Flashing Networking is active
Off Not connected to network
On Connected to network, 100Mbps
Amber Flashing Networking is active
Off Not connected to network
