ITEM NO:77500256

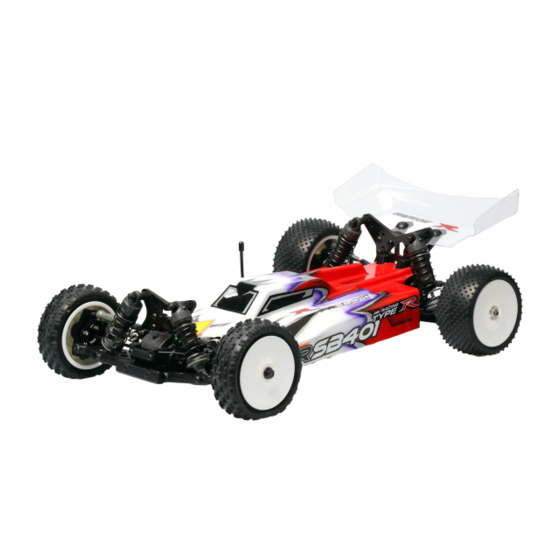

PR SB401-R 1/10 Electric 4wd Off Road Buggy Kit Lightweight Edition
(Slipper Clutch Version)
PR racing have been hard at work developing the next generation of the successful
SB401 platform and have made the SB401-R faster, quieter and easier to maintain and
tune. A number of key components have been totally redesigned to produce a better handling
and more forgiving car to drive. The main focus has been on the all new narrow 2mm 7075-T6
滾滾長江東逝水
chassis and plastic side-pods, which utilizes a carbon fibre re-enforced spine to control
torsional and longitudinal flex. The additional flex has proved to increase grip, and make the
car feel more balanced and easier to drive leading to faster, more consistent laps.
w w w. p r- rc . c o m

Advertisement

loading
Need help?

Need help?

Do you have a question about the PRSB401-R and is the answer not in the manual?

Questions and answers

Related Manuals for PR RACING PRSB401-R

Summary of Contents for PR RACING PRSB401-R

  • Page 1 PR SB401-R 1/10 Electric 4wd Off Road Buggy Kit Lightweight Edition (Slipper Clutch Version) PR racing have been hard at work developing the next generation of the successful SB401 platform and have made the SB401-R faster, quieter and easier to maintain and tune.

  • Page 2: Health Warning

    Name: PR SB401-R 1/10 Electric 4wd Off Road Buggy Kit PR racing have been hard at work developing the next generation of the successful SB401 platform and have made the SB401-R faster, quieter and easier to maintain and tune.

  • Page 3: Specifications

    Suspension and Steering • 12.75mm Type R shocks • Lower towers for ultra-low CofG • Suspension hangers with inserts for toe and anti-squat adjustment • Revised Ackerman geometry for improved steering feel • New shock seal caps and seals for ultra-smooth operation •...
  • Page 4 03-07 19-21 A1-Main Chassis Assembly- Chassis Brace Installation E1-Front & Rear Shock Assembly-R A2-Gear Diff Assembly E2-Front & Rear Shock Installation A3-Slipper Assmebly E3-Motor Installation A4-Gear Box Assembly E4-Mounting Tires, Wheel Installation A5 Rear Central Transmission 08-11 B1-Suspension Mount Installation B2-Front Hub Carrier Assembly(Left Side) B3-Suspension Mount Installation-Sway Bar Installation B4-Front Upper Turnbuckle Assembly...
  • Page 5 Screw Cement Round Cutter & Sander Grease Needle Nose Pliers Sharp Hobby Knife Ware Cutters For trimming bodies Cutting along curved lines was never so easy! SP Knife Edge Reamer Hex Wrench Ball Differential Grease 1.5mm Do not pre-drill as precise drilling of 1mm to 15mm holes can be performed after 2.0mm...
  • Page 6 Main Chassis Assembly Chassis Brace Installation M3X6mm Flat Head Screws 82400016 M3X8mm Flat Head Screws Sponge 82400026 M3X8mm Button Head Cap Screw 80400036 77480026 M3X8mm Carbon 77500086 2.5mm 82400026 Lateral Plate 54430028-Sponge Set R 10x99x 1mmor3 mm 77500096 54430028-Sponge 10x99x1 or3 mm 77480016 Carbon 2.5mm...
  • Page 7 Gear Diff Assembly 66481366 +1.6mm M2.6X8mm Flat Head Screw 請照順序對角鎖緊差速上蓋螺絲 82400066 → → → 82400166 M2.6x10mm 5X8x0.8mm Shim 85440170 3.5mm 4X10x0.15mm Shim 85400016 77500246(39T) R 85440160 66480336 31450016-O-ring-5x1.5mm 85440170-5x8x0.8washer 85400016 85400016 Tighten equally in the order of (5x8x0.8)washer 77500226 85440170 →...
  • Page 8 Slipper Assmebly ITEM NO:77500256 PR SB401-R 1/10 Electric 4wd Off Road Buggy Kit Lightweight Edition (Slipper Clutch Version) M3X3mm Set Screw 87400016 M3X6mm Flat Head Screw 82400016 Tighten the slipper nut until the spring is completely compressed, Pin - 2 x 7.8mm -79400096 to break it in first.
  • Page 9 Front Gear Box Assembly Front Front Shock Tower nstallation 4.8x8mm Ball Studs-68430046 組裝時請注意齒輪方向 Please notice the direction M3 Lock Nut -83400106 of gear. M3X10mm Button Head Cap Screw 80400046 M4X3mm Set Screw-78400016 5x8x0.1mm-Shim-85440090 68480986 ↙ 10X12.5X0.1-Shim-85440230 68480336 Front 66401096 79400086(2x9.8mm) 5x10x4mm 78400016 zz Ball Bearing-89430010...
  • Page 10 Rear Gear Box Assembly Front Rear Shock Tower Installation 組裝時請注意齒輪方向 4.8x8mm Ball Studs-68430046 Please notice the direction of gear. M3 Lock Nut -83400106 M3X10mm Button Head Cap Screw 80400046 M4X3mm Set Screw-78400016 5x8x0.1mm-85440090 M3X10mm Front 10x15x4mm zz 10X12.5X0.1-85440230 Ball Bearing 10X12.5X0.1 5x10x4mm 68480986...
  • Page 11 Suspension Mount Installation FRONT HANGER INSERTS Numbering SQUAT M3X6mm Flat Head Screw +0.7 82400016 +1.4 -0.7 M3X10mm Flat Head Screw 82400106 +0.7 -1.4 77500156 Suspension Hanger Insert M3X15mm Flat Head Screw -0.7 82400176 77500116 Suspension Mount F-10 Suspension Mount placement direction F-11 -0.9 F-12...

  • Page 12: Left Side

    Front Hub Carrier Assembly (Left Side) Left Side 68480346 79400086 Button Head Cap-80400206 75mm Pin2x9.8mm 68430036 Screw M3x12mm 4.8x6mm Ball Studs 68481246 Aluminum 11 Degree 77500266 4.8mmx6mm-68430036 66401096 Front Spindle Carrie 2.3mm Ball Studs Brown Note position 68480976 5x10x4mm 68480336 5x10x4mm zz Ball Bearing 89430010 85440310-3x6x1mm...
  • Page 13 Suspension Mount Installation- Sway Bar Installation M3X6mm Flat Head Screw 82400016 Set Screw 68480756 M3X10mm 2.1mm M2.5X5.5mm Shim 3X4.6X0.1mm 87400026 80400016 85440220 77430036 gray M3X8mm Button Head Cap Screw Assemble 80400036 2 sway bar rod. M3X3mm Set Screw 87400016 M3X6mm Set Screw 78400026 M3X10mm Set Screw 87400026...
  • Page 14 Front Upper Turnbuckle Assembly One side is reverse threaded. 36mm Turnbuckles 77430016 " Assemble 2 front links and 2 steering rod links" 15.50 One side is reverse 28.2mm threaded. 28.2mm 28.2 15.50 77430016 77430036 36mm gray 28.2 Gearbox-Reinforcement - Front 77500026 3x15mm Flat Head Screws 82400176...
  • Page 15 RF Suspension Mount Suspension Mount placement direction M3X10mm Button Head Cap Screw 80400046 68480106 Wing Mount M3X6mm Flat Head Screw 82400016 77500156 Suspension Hanger Insert M3X10mm Flat Head Screw 82400106 80400046 M3x10mm Suspension 77500036 M3X15mm Flat Head Screw Gearbox Reinforcement Block - Rear Bushing 82400176 77500156...
  • Page 16 Rear Left Hub Carrier Assmebly Assemble the right left side in the same manner. m3x6mm Flat Head Screws 82400016 M2.5X4mm Button Head Screw 66401096 80400016 65mm 5x13x4mm zz 2 x 10.8mm Ball Bearing OP-914400010 Brass 12x4.2mm KIT-68440080 10x15x4mm zz Ball Bearing 12x5.2mm 2 x 9.8mm 89430030...
  • Page 17 Rear Left Hub Carrier Assmebly Note position REAR HANGER INSERTS 1.95mm Numbering SQUAT +1.6 +1.6 +0.7 3x52mm +1.6 +1.4 +1.6 -0.7 +1.6 M3X6mm +1.6 +0.7 +1.6 -1.4 +1.6 -0.7 +1.6 R-10 +1.6 R-11 +0.8 R-12 R-13 +2.5 1.95mm R-14 +1.6 R-15 +0.8 R-16...
  • Page 18 Rear Upper Rod -Turnbuckle Assembly 68430036 36mm Turnbuckles 4.8x6mm Ball Studs-68430036 4.8x6mm 77430016 77500036 M3X15mm Flat Head Screw 82400176 85440310 77430036 Silver Aluminum 31mm Spacer -1mm 36mm Turnbuckles One side is reverse 77430016 threaded. 85440310 Silver Aluminum 31mm Silver Aluminum Spacer -1mm Spacer -1mm 3x6.6x1mm-85440310 68430036...
  • Page 19 Bell Crank Installation 66402256 80400046 4.8x6mm Ball Studs 68430046 M3x10mm 68430036 80400046 4.8x8mm 83400106 M3x10mm Ball Studs 4.8x8mm Ball Studs 00430025 68430046 77480046 Steering Knuckle Bushing 3*6mm 68480036 2019-NEW 85440310 M3 Lock Nut-83400106 85440026 3x6.6x1mm 68430036 3x10x0.8mm Spacer 4.8x6mm Ball Studs shim-3x10x0.8mm-85440026 68480036 68430036...
  • Page 20 Turnbuckle Assembly-Steering Rod -Servo Rod One side is reverse threaded. 28.2 36mm Turnbuckles 77430016 15.40 Steering Rod Servo Rod 15.5 77430016 36mm Steering Rod 28.2 Servo Rod Assemble 2 front 2 sway bar rod 77430016 36mm Steering Rod Steering Servo 3x6.6x1mm-85440310 68430036 83400106...
  • Page 21 Center Mount Plate M3 x6mm-80400026 Button Head Cap Screw 80400026 M3x6mm 10x15x4mm zz Ball Bearing 77480066 89430030 Center Mount Plate 89430030 10x15x4mm zz Ball Bearing Battery Plate Installation 80400026 2.5x1.5mm oring 3x6mm M3 x6mm-80400026 Button Head Cap Screw 66481446 68480956 BatteryHolder Nut M3 x8mm-80400046 M3x16mm Set Screw...
  • Page 22 Front & Rear Shock Assembly-R Rear Buildx2 Front Buildx2 83400066 17430116-2.0mm 17430096 x2 hole 68410066 1.8mmx2 hole Plastic 85440070 1.5mm*1 pcs CORRECT INCORRECT 74480016 74480026 68410066 Plastic Ti Coated 1.5mm*2 pcs Ti Coated KIT-3.08*42mm EXTREMELY After first drive 66400666 IMPORTANT 66400656 3.08*49mm adjust...
  • Page 23 Front & Rear Shock Installation Before using the plastic nut, drive the screw in and out a M3 x 25mm Button Head Cap Screw M3 x 25mm couple times before securing 80400076 M3 x 28mm the nut onto the shock seat. 68410066 Flat Head Screws M3x14mm 82400046...
  • Page 24 Mounting Tires Wheel Installation M3x8mm Flat Head Screws 82400026 M4 Serrated flange nut 7mm Hex-83400076 Pull the sidewall of the tire slightly away Place the tire insert into the tire form the rimand apply CA(Cyanoacrylate) and tire onto the weel. M5 Aluminum Nut 7mm Hex glue in between the tire bead and rim 83000020...
  • Page 26 CIRCUIT INDOOR OUTDOOR DIRT ASTROTURF CARPET PR SB401-R 1/10 Electric 4wd Off Road Buggy Kit Lightweight Edition GLASS WOOD DUSTY SMOOTH (Slipper Clutch) ITEM NO:77500256 BUMPY HARD PACKED CLAY BIUE GROOVE DRIVER DATE LOW TRACTION MED TRACTION HIGH TRACTION CAMBER FRONT REAR TOE IN OUT...
  • Page 27 NOTE...
  • Page 28 PR SB401-R 1/10 Electric 4wd Off Road Buggy Kit Lightweight Edition (Slipper Clutch Version) EMAIL / infoprracing@gmail.com 1.7.1Version...

This manual is also suitable for:

77500256
