PR RACING PR SB401R-T Manual

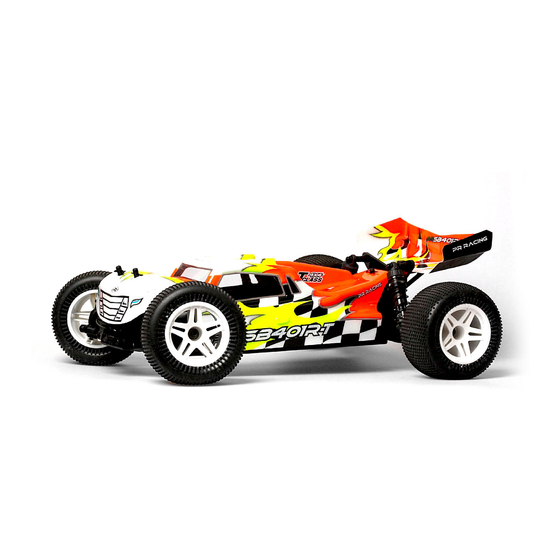

1/10 electric 4wd off-road stadium truck / truggy
Hide thumbs

Advertisement

Quick Links

Download this manual
w w w. p r- rc . c o m
PR SB401R-T 1/10 ELECTRIC 4WD OFF-ROAD STADIUM TRUCK / TRUGGY
ITEM NO:77500346
PR racing has taken all the refinements and changes from the 401R buggy,
and applied them to create the 401R-T! On top of that we have made further
changes specifically for this vehicle to be the most capable, adjustable, durable
competition ST 4x4/ Truggy on the market out of the box!From the aggressive
"Low Center of gravity" truggy body. To the "Type R" style shocks and towers.
The 401R-T is ready to dominate on the very first lap!

Advertisement

loading
Need help?

Need help?

Do you have a question about the PR SB401R-T and is the answer not in the manual?

Questions and answers

Related Manuals for PR RACING PR SB401R-T

Summary of Contents for PR RACING PR SB401R-T

  • Page 1 PR SB401R-T 1/10 ELECTRIC 4WD OFF-ROAD STADIUM TRUCK / TRUGGY ITEM NO:77500346 PR racing has taken all the refinements and changes from the 401R buggy, and applied them to create the 401R-T! On top of that we have made further...

  • Page 2: Health Warning

    Name:PR SB401R-T 1/10 ELECTRIC 4WD OFF-ROAD STADIUM TRUCK / TRUGGY Pr racing has taken all the refinements and changes from the 401R buggy, and applied them to create the 401R-T! On top of that we have made further changes...

  • Page 3: Suspension And Steering

    TRANSMISSION Top loading Center gear differential with ultra hard cups Updated gear ratio Longer front and rear gear diff out drives for more droop SUSPENSION AND STEERING 12.75mm "LCG" Type R Shocks Type R "Low mount" Carbon fiber towers Insert style suspension blocks 5 Degree caster blocks Composite rear hubs with extra pin location for added width adjustability Gullwing rear arms...
  • Page 4 03-07 19-21 A1-Main Chassis Assembly- Chassis Brace Installation E1-Front & Rear Shock Assembly-R A2-Gear Diff Assembly E2-Front & Rear Shock Installation Center Diff E3-Motor Installation A4-Gear Box Assembly E4-Mounting Tires, Wheel Installation A5 Rear Central Transmission 08-11 B1-Suspension Mount Installation B2-Front Hub Carrier Assembly(Left Side) B3-Suspension Mount Installation-Sway Bar Installation B4-Front Upper Turnbuckle Assembly...
  • Page 5 Screw Cement Round Cutter & Sander Grease Needle Nose Pliers Sharp Hobby Knife Ware Cutters For trimming bodies Cutting along curved lines was never so easy! SP Knife Edge Reamer Hex Wrench Ball Differential Grease 1.5mm Do not pre-drill as precise drilling of 1mm to 15mm holes can be performed after 2.0mm...
  • Page 6 Main Chassis Assembly Chassis Brace Installation Sponge M3X6mm Flat Head Screws 82400016 M3X8mm M3X8mm Flat Head Screws Button Head Cap Screw 82400026 80400036 M3X8mm Button Head Cap Screw 80400036 77480026 Carbon 77500086 2.5mm Lateral Plate 54430028-Sponge Set R 10x99x1mm 77500096 54430028-Sponge 10x99x1mm 77500286...
  • Page 7 Gear Diff Assembly 66481366 +1.6mm M2.6X8mm Flat Head Screw 請照順序對角鎖緊差速上蓋螺絲 → → → 82400166 82400166 M2.6x10mm 5X8x0.8mm Shim 85440170 3.5mm 90500046-SB401R-T 4X10x0.15mm Shim 85400016 (39T) 85440160 66480336 31450016-O-ring-5x1.5mm 85440170-5x8x0.8washer 85400016 85400016 Tighten equally in the order of (5x8x0.8)washer 77500226 85440170 →...
  • Page 8 Center Diff 77500316 M2.6X10mm Flat Head Hex Screw 82400166 5X8x0.8mm Washer M2.6X10mm 85440170 68481006 4X8x0.25mm Washer 31450016 85440150 O-ring 5x1.5mm 85440170 Shim 5x8mm 85400016 66480336 3.5mm 66480336 Shim 4X8x0.25mm 66480356 請照順序對角鎖緊差速上蓋螺絲 3 → → Tighten equally in the order of 66480366 →...
  • Page 9 Front Gear Box Assembly Front Front Shock Tower nstallation 4.8x8mm Ball Studs-68430046 組裝時請注意齒輪方向 M3 Lock Nut -83400106 Please notice the direction of gear. M3X10mm Button Head Cap Screw 80400046 M3X12mm Button Head Cap Screw 80400206 68480986 5x8x0.2mm-85440010 ↙ 10X12.5X0.1-85440230 Front 68480336 66401096 79400086(2x9.8mm)
  • Page 10 Rear Gear Box Assembly Front Rear Shock Tower Installation Gear Box Assembly ！ 4.8x8mm Ball Studs-68430046 Front Shock Tower Installation Rear Shock Tower Installation M3 Lock Nut -83400106 REAR 組裝時請注意齒輪方向 M3X10mm Button Head Cap Screw Please notice the 80400046 direction of gear.
  • Page 11 Suspension Mount Installation FRONT HANGER INSERTS Numbering SQUAT M3X6mm Flat Head Screw +0.7 82400016 +1.4 -0.7 M3X10mm Flat Head Screw 82400106 +0.7 -1.4 M3X15mm Flat Head Screw -0.7 82400176 Note position-77500156 Suspension Bushing F-10 77500116 77500156 F-11 -0.9 FR Suspension Mount F-12 -1.7 F-13...

  • Page 12: Left Side

    Front Hub Carrier Assembly (Left Side) Left Side 67000040 79400086 Button Head Cap-80400206 84.5mm Pin2x9.8mm 68430036 Screw M3x12mm 4.8x6mm Ball Studs 68480976-11Degree 90500036 66401096 4.8mmx6mm-68430036 68480866-8Degree 77500216 Ball Studs 68480666-5Degree 0.8mm(Silver) 89430010 Aluminum 5x10x4mm zz 684810336 Ball Bearing 2019-68480046 5x10x4mm zz Ball Bearing 80400206 89430010 87400066...
  • Page 13 Suspension Mount Installation- Sway Bar Installation M3X6mm Flat Head Screw 85440320-Shim - 3 x8 x0.15mm 82400016 Set Screw 68480756 M3X10mm 2.1mm M2.5X5.5mm Button Head Cap Screw 87400026 80400016 77430036 gray M3X8mm Button Head Cap Screw Assemble 80400036 2 sway bar rod. M3X3mm Set Screw 87400016 M3X6mm Set Screw...
  • Page 14 Front Upper Turnbuckle Assembly One side is reverse threaded. " Assemble 2 front links 36mm Turnbuckles and 2 steering rod links" 77430016 One side is reverse 31.3mm threaded. 31.30 31.3mm 77430016 36mm 77430036 gray 31.30 Note the direction.
  • Page 15 RF Suspension Mount B-BAG Suspension Mount placement direction 80400046 M3X10mm Button Head Cap Screw M3x10mm 80400046 M3X6mm Flat Head Screw 82400016 77500156 Note position- M3X10mm Flat Head Screw 82400106 80400046 68480106 Wing Mount M310mm M3X15mm Flat Head Screw 82400176 Suspension Bushing 77500156-B 77500156-B...
  • Page 16 Rear Left Hub Carrier Assmebly 87400066 M2X5 89430020 79400016 90440020-12x7.2mm 5x13x4mm zz 2 x 10.8mm m3x6mm Flat Head Screws 66402636 90440030-12x8.2mm Ball Bearing 82400016 66401096 78mm 2019 M2.5X4mm Button Head Screw 68480056 80400016 79400086 2 x 9.8mm 16.90 67410266 2019 10x15x4mm zz Ball Bearing 85440090 89430030...
  • Page 17 Rear Left Hub Carrier Assmebly REAR HANGER INSERTS Numbering SQUAT +1.6 +1.6 +0.7 +1.6 +1.4 +1.6 -0.7 +1.6 +1.6 +0.7 +1.6 -1.4 +1.6 -0.7 +1.6 R-10 +1.6 R-11 +0.8 R-12 R-13 +2.5 R-14 +1.6 R-15 +0.8 +3.0 R-16 R-17 +2.5 R-18 +1.5 R-19...
  • Page 18 Rear Upper Rod -Turnbuckle Assembly 4.8x6mm Ball Studs-68430036 77430056 50mm 50mm Turnbuckles 77430056 Note the direction. 68430036 4.8x6mm 31.30 23.70 Note the direction. Sway Bar Installation M3X8mm Button Head Cap Screw-87400016 M3X3mm Set Screw-87400016 Adjust the M3x6 Set Screws and stopper to remove any play , but M3X6mm Set Screw-78400026 allow the sway bar to swivel smoothly...
  • Page 19 Bell Crank Installation Bell Crank Installation 4.8x6mm Ball Studs 66402256 85440216 68430036 80400046 80400046 83400106 M3x10mm M3x10mm 68430046 4.8x8mm Ball Studs 4.8x8mm 68430046 Ball Studs 77480046 00430025 68480036 2019-NEW 85440310 M3 Lock Nut-83400106 3x6.6x1mm 68430036 85440210 Spacer 4.8x6mm 3x8x0.8mm Ball Studs shim-3x8x0.8mm-85440210 68480036 or Spring...
  • Page 20 Turnbuckle Assembly-Steering Rod -Servo Rod One side is reverse threaded. 27.80mm 36mm Turnbuckles 77430016 14.6mm Servo Rod 17mm Steering Rod Steering Rod 31.30mm Servo Rod Assemble 2 front 2 sway bar rod Steering Rod Steering Servo 68430036 3x6.6x1mm-85440310 4.8x6mm M3X6mm Button Head Screw 80400046 80400026 Ball Studs...
  • Page 21 Center Mount Plate 80400036 M3x8mm M3 x8mm-8040036 Button Head Cap Screw 77480086 80400036 M3x8mm 66430200 80400036 Servo Spacer 10x15x4mm zz Ball Bearing M3x8mm 89430030 66430200 10x15x4mm zz Ball Bearing Servo Spacer 89430030 Battery Plate Installation 2.5x1.5mm oring M3x16mm Set Screw 66481446 BatteryHolder Nut 87400036...
  • Page 22 Front & Rear Shock Assembly-R Rear Buildx2 Front Buildx2 83400016 17430076-1.7mmx3 17430046 (Black) 1.5mmx3(White) 85440070 Front Shock Shaft 66400656 KIT-3.08*42mm 66400656 74480026 Ti Coated 74480016 Rear Shock Shaft 66400676 66400666 68410066 Ti Coated POM1-4mm P3 O-Rings 66400666 55430076B-White Adjust according to 3.08*49mm road conditions 55430076A-Black...

  • Page 23: Motor Installation

    Front & Rear Shock Installation Before using the plastic nut, 80400126 drive the screw in and out a M3 x 28mm 80400126 M3 x 28mm couple times before securing the 69440010 nut onto the shock seat. 82400176 83480016 M3x15mm M3 Nut 80400076 M3 x 25mm 68410066 66400706 Aluminium...
  • Page 24 Mounting Tires Wheel Installation (Sold sepsrstely) (Sold sepsrstely) 67410086 67410226 32430526 PR ST 1 Wheel White M3x8mm Flat Head Screws 82400026 83400076 M5 Serrated flange nut 7mm Hex *Pull the sidewall of the tire slightly away *Place the tire insert into the tire form the rimand apply CA(Cyanoacrylate) and tire onto the weel.
  • Page 25 CIRCUIT INDOOR OUTDOOR DIRT ASTROTURF CARPET PR SB401-R 1/10 Electric 4wd Off Road Turggy Kit GLASS WOOD DUSTY SMOOTH ITEM NO:77500346 BUMPY HARD PACKED CLAY BIUE GROOVE DRIVER DATE LOW TRACTION MED TRACTION HIGH TRACTION REAR FRONT Ride Height Ride Height 18.5mm 18.5mm 22.2mm...
  • Page 26 PR SB401R-T 1/10 ELECTRIC 4WD OFF-ROAD STADIUM TRUCK / TRUGGY ITEM NO:77500346 EMAIL / infoprracing@gmail.com 1.4Version...
