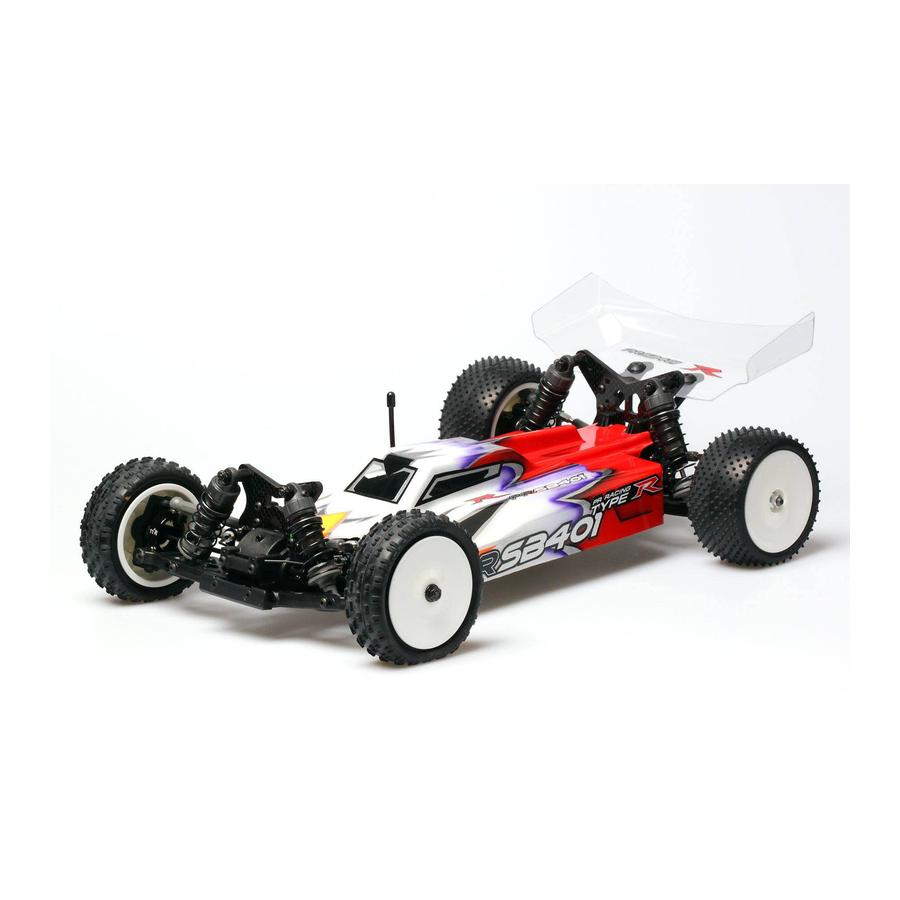

PR RACING SB401 Manual

1/10 electric 4wd off road buggy
Hide thumbs Also See for SB401:

Advertisement

Quick Links

Download this manual

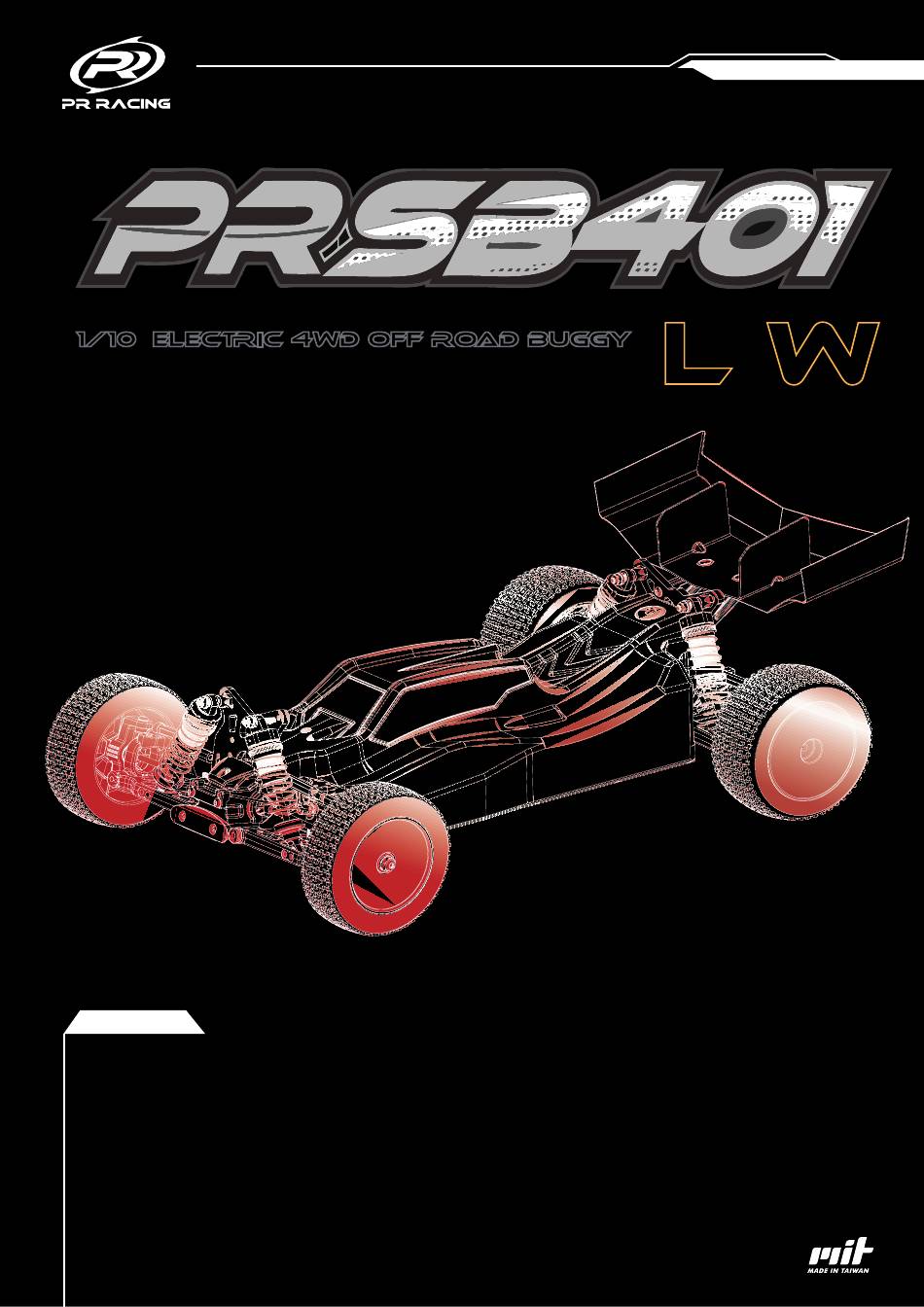

w w w. p r- rc . c o m
L W
1/10 ELECT RIC 4WD OFF ROAD BUGGY
WARNING!
Thank you for purchasing this PR product. This kit is not a toy! It will require periodic maintenance & effort to keep it in top
running condition. There are many extremely dangerous moving parts, such as the metal gears, motors and etc. Coming in
contact with these during operation of the car may cause serious injury! Always check your radio operation system before
running the car. Always switch off the car first before turning off the radio to avoid losing control. Safe operation will ensure
great fun and enjoyment.

Advertisement

loading
Need help?

Need help?

Do you have a question about the SB401 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for PR RACING SB401

Summary of Contents for PR RACING SB401

  • Page 1 w w w. p r- rc . c o m 1/10 ELECT RIC 4WD OFF ROAD BUGGY WARNING! Thank you for purchasing this PR product. This kit is not a toy! It will require periodic maintenance & effort to keep it in top running condition.
  • Page 2 Gear Case whether in front or rear end, can be disassembled quickly and easy to maintain or change. Quality can be found throughout in the SB401 kit. All parts in the kits is made from composites or aluminum materials. The SB401 Chassis is produced with high grade CNC Hard anodized aluminum.

  • Page 3: Specifications

    PR Racing SB401 1/10 Electric 4WD Off Road Buggy Specifications • Motor: Electric • Shock Type: Oil Filled Aluminum • Wheelbase: 284mm Shocks • 12 degree chassis Kick up • with bladders (Adjustment range:20 degree) • Body: Unpainted clear body •...
  • Page 4 Deploy 在馬達擺設方式,可以選擇前置與後置兩種。 The way of Motor furnishings, you can choose in two ways(Front&Rear). Shorty Battery...
  • Page 5 Deploy 在中置傳動系統可選擇紐線與齒輪差速兩種 (選擇紐線傳動要另外購買) 。 In Mid Drivetrain system can choose Differential and Gear Diff two ways. (It will cost extra if ones choose differential drivetrain.) Shorty Battery Gear Diff Slipper...
  • Page 6 Deploy 在伺服機擺設方式,可選擇左邊與右邊。 The way of Servo furnishings, you can choose left & right. Shorty Battery Gear Diff Slipper...
  • Page 7 Deploy 在後避震器的擺設位置,因應不同場地特性,可選擇擺設置前方與後方。 (如選擇後方,尾翼必須裁剪) The Rear suspension’s furnishings place, with different features of place, can choose to put Front & Rear. (If you choose Rear, wings have to be cut.) Shorty Battery Gear Diff OR OR Slipper...
  • Page 8 Deploy 在電池選擇上,可以選擇短版電池與分置電池兩種。 The selection of battery, can choose in two ways (Shorty battery & saddle battery.) Shorty Battery Gear Diff Shorty Battery Saddle Battery...
  • Page 9 Deploy 在六角輪座可選擇12mm或14mm。 In Hexagonal Wheel Stand, can choose 12mm or 14mm. 12mm 14mm...
  • Page 10 04-10 24-30 Chassis Guard Installation Shock Assembly Front&Rear Differential Shock Spring Center Diff Front Suspension Front Central Transmission Rear Suspension Rear Central Transmission Motor 11-14 Battery Cradle Front Assembly Wheels Front Spindle(Left Side) Body Mounting Front Spindle(Right Side) Body Shell Front Suspension 15-17 Rear Assembly...
  • Page 11                                         ...
  • Page 12 Deploy 在組裝前,請先選擇好電池種纇(短版電池/分置電池),將會影響組裝方式。 Before assembling, please choose the battery type(Shorty battery/Saddle battery), it will impact the assemble way!! Shorty Battery Saddle Battery...
  • Page 13 PR SB401-lw Side Plate 68480116 Shortly Battery 68480116 M2.6X6mm Flat Head Hex Screw M3X6mm Flat Head Hex Screw 68400016 68480426 M3X6mm M2.6x6mm 82400016 82400096 M2.6x6mm 82400096 M2.6x6mm 82400096   ...
  • Page 14 A Front&Rear Differential 5X8x0.8mm Washer 82400066 4X10x0.25mm Washer 66480336 請照順序對角鎖緊差速上蓋螺絲 → → 66480346 66480346 → → 66480346 31450016 O-ring 66480336 66480336 85440160 85440160 68480596 According to the different 66480356 track, you can choose to use 2 gears or4 gears 66481106 SILICON DIFF OIL ＃5000 將差速油注入差速殼內至8分滿...
  • Page 15 PR SB401-lw Center Diff M3X3mm Set Screw M3X8mm Flat Head Hex Screw M3x8mm 2x7.8mm 82400026 79400096 M3x3mm 87400016 1.4X10mm 68480196 68480276 68480776 2x11mm 68480766 79400016 66400786(10x15x4mm) 組裝培林座時連同培林一起組裝 please install bearing hub with bearing. 68400216(81t) 68480186 66480306 2x11mm 79400016 68480266 66400786(10x15x4mm) 1~1.5mm...
  • Page 16 Front A Front Central Transmission ！ 組裝時請注意齒輪方向 Please notice the direction Shortly Battery of gear. M3X10mm Button Head Hex Screw M4X3mm Set Screw Light Weight-7075 ↙ "Please inspect the condition of this light weight component regularly" Front 68480336 66401096 79400066(9.8mm) 5x10x4mm Ball Bearing 78400016 M4X3mm...
  • Page 17 PR SB401-lw Front Front Central Transmission ！ 組裝時請注意齒輪方向 Please notice the direction Saddle Battery of gear. M3X10mm Button Head Hex Screw Light Weight-7075 "Please inspect the condition of this ↙ light weight component regularly" M4X3mm Set Screw Front 68480336 79400066(9.8mm)
  • Page 18 Rear A Rear Central Transmission ！ 組裝時請注意齒輪方向 Please notice the direction of gear. Shortly Battery M3X10mm Button Head Hex Screw ↙ M3X10mm M4X3mm Set Screw 80400046 Front 66400786 10x15x4mm Ball Bearing 10X12.5X0.1 68480066 85440230 5x10x4mm Ball Bearing Please add it or not according to the loose-tight.
  • Page 19 PR SB401-lw Rear Rear Central Transmission ！ 組裝時請注意齒輪方向 Please notice the direction of gear. Saddle Battery M3X10mm Button Head Hex Screw ↙ M4X3mm Set Screw M3X10mm Front 80400046 10X12.5X0.1 85440230 5x10x4mm Ball Bearing 68480066 66400786 10x15x4mm Ball Bearing 10X12.5X0.1 85440230...

  • Page 20: Front Assembly

     Front Assembly M2.6X16mm Flat Head Hex Screw M3X6mm Flat Head Hex Screw M3X10mm Flat Head Hex Screw M3X14mm Flat Head Hex Screw 68480176(RF) M3X6mm 82400016 M3X14mm 82400046 M3X10mm 82400106 M2.6X16mm 82480016   ...

  • Page 21: Left Side

    PR SB401-lw Front Spindle(Left Side) Left Side Left Side M3X12 Button Head Hex Scrw 66401096 68480336 68480156(2.2mm) M4.8X6mm Ball Studs M4.8X6mm 68480346(75mm) 66401036 79400066(10mm) 68480306 5X10X4mm Ball Bearing M3X12mm 80400206 68481036(5 ) 66400766 5X13X4mm Ball Bearing 5X10X4mm Ball Bearing 68481036 M4.8X6mm...
  • Page 22 B Front Suspension M3X6mm Flat Head Hex Screw M3X3mm 87400016 68480476 M3X8mm Flat Head Hex Screw 66400066 M3X10mm 87400026 M2.6X4mm Button Head Hex Screw M3X3mm Set Screw M3X10mm Set Screw 79400036(36.8mm) M2.6X4mm (5.6mm) 80400016 68410066 79480036(3x52m) 68480016 68410066 68480166(FF) 68480036 M3X6mm 82400016 68480036...
  • Page 23 PR SB401-lw Front Suspension M4.8X8mm Ball Studs 83400046 M3 Lock Nut 66401046(4.8x8mm) 68480456(28mm) 8.0mm 66400066 Front Suspension M3X8mm Button Head Hex Screw M3X6mm Set Screw 68481276 (1.3mm) M3X6mm 78400026 68480036 M3X8mm 80400036 ...

  • Page 24: Rear Assembly

    M3X14mm Flat Head Hex Screw M3X10mm 80400046 M3X10mm M3X10mm Button Head Hex Screw 80400046 因應不同場地需求增加或減少墊片 With different requirement of 68480206(RF) places,increase or decrease washer. 1pcs=1° 68480036 2pcs=2° 76480036 68480096 SB401 SB401-LW  M3X8mm 82400026 M3X14mm 82400046 M3X10mm M2.6X16mm 82400106 82480016   ...
  • Page 25 PR SB401-lw Rear Suspension 79400016 66401096 (2X11mm) M3X6mm Flat Head Hex Screw 66400776 5x13x4mm Ball Bearing 68480356(64.20mm) M2.6X4mm Button Head Hex Screw M3x10mm Set Screw 79400066(2x10mm) M2X5mm 87400066 67410266 66400786 10x15x4mm Ball Bearing 68480056 5X8X0.1 85440110 5x13x4mm Ball Bearing Please add it or not according to the loose-tight.

  • Page 26: Front Suspension

     Front Suspension 7.60mm 4.8X6 Ball Studs 66400066 66401046 4.8x8mm 68480456(28mm) 4.8X8 Ball Studs 66401036 4.8X6mm M3 Lock Nut 注意!!如使用B孔位 請自行裁切塑膠球頭3mm Notice!If you use B hole, please cut the plastic ball 3mm by yourself! 8.50mm  Front Suspension M3X8mm Button Head Hex Screw M3X6mm Set Screw 68480036 M3X6mm...
  • Page 27 PR SB401-lw Steering Saddle Battery M3X8mm 80400036 66402256 3x8x0.5mm 68480036 85000010 83480016(m3) 5x8x0.1mm 68400226 85440090 M4.8X6mm Ball Studs 66400316 66401036 M3 Lock Nut 4.8x6mm 68480526 66401036 4.8x6mm M3X8mm 66402266 shim-3x8x0.5mm 3x8x0.5mm 85000010 68480036 26.5～27.0mm 5x8x0.1mm 85440090 Steering M3X8mm 66402256 80400036 Shortly Battery 3x8x0.5mm...
  • Page 28  Steering M3X6mm 80400026 68480966-2 3X4.6X0.1mm 85440220 Plewse add it or not according to the loose-tight. 66400756 依據鬆緊,請加它或不加它。 5X8X2.5mm Ball Bearing Saddle Battery M3X6mm Button Head Hex Screw 66400756 5X8X2.5mm Ball Bearing 5X8X0.1mm 5X8X2.5mm Ball Bearing 85440110 Plewse add it or not according to the loose-tight.
  • Page 29 PR SB401-lw Steering Servo 85000010 M3X10mm 3X8X0.5mm 66430200(1.0&15mm) 80400046 請依照各品牌伺服機 來決定是否要墊此墊片 Please according to each brand's servo to decide to use this spacer or not 85000010 3X8X0.5mm Saddle Battery M3X10mm 66400116 83480016(M3) 87400026 4.8X6mm 66400066 66401036 M3X10mm Button Head Hex Screw...
  • Page 30  Steering 66400066 68480456 (28mm) 7.20mm  Body Mounts M3X8mm Button Head Hex Screw M3X8mm M2.6X6mm Flat Head Hex Screw 80400036 68480106 將伺服機電源線穿過整線夾, 避免伺服機電源線被中央傳動系統夾斷 Servo power cord through the cable clips. To avoid servo power cord pinched off mid drivetrain system. M2.6X6mm 82400096 ...
  • Page 31 PR SB401 Gear Piff Assembly Assembly note that corner M4.8X6mm location! M3X8mm 66401036 組裝時請注意此處缺角的位 80400036 置! M3X8mm 68480946 80400036 Corner 68480056 below 83480016 (M3) Saddle Battery 68480936 M3X8mm Button Head Hex Screw M3X10mm Flat Head Hex Screw M4.8X6mm Ball Studs 68480786 在中置傳動系統可選擇紐線與齒輪差速兩種...
  • Page 32 Top Deck Buid M3X8mm M3X8mm Button Head Hex Screw 80400036 M4.8X6mm 66401036 M4.8X6mm Ball Studs 68480956 83480016 (M3) M3X8mm 80400036 Front 66400066 67410026 (50mm) 35.5 mm Rear 66400066 66481166 (70mm) 49mm  ...

  • Page 33: Shock Assembly

    PR SB401-lw Shock Assembly 83400016 1.8X1 83400016  67410186 1.6X2   85440070 67410186  85440070 66401666   66401656  (1mm) 66430200 以照場地調整來決定是否安裝此墊片  (1mm)  66430090 66430200 以照場地調整來決定是否安裝此墊片   66430090    66400626   ...

  • Page 34: Rear Suspension

     Front Suspension M3X18mm Button Head Hex Screw M3X25mm Button Head Hex Screw M3X25mm 80400076 83480016 (M3) 69440010 68410066 83400026 M3X18mm 80400196  Rear Suspension M3X14mm Flat Head Hex Screw M3X28mm Button Head Hex Screw M3X28mm 80400126 83480016(M3) 69440010 3X6.6X1.0mm 68410066 66430200 M3X14mm...
  • Page 35 PR SB401-lw Breech-loading shock combination M3X14mm Flat Hex Sxrew M3X28mm 80400126 M3X28mm Button Head Hex Screw 69440010 3X6.6X1mm (M3) 66430200 83480016 68410066 M3X14mm 82400046 66400286      ...
  • Page 36  Motor Shortly Battery 68480936 M3X10mm 82400106 M3X10mm Flat Head Hex Screw M3X8mm Button Head Hex Screw M3X10mm Button Head Hex Screw M3X10mm 80400046 M3X8mm 80400036 Front M3X8mm 80400036  Motor Saddle Battery M3X8mm 80400036 M3X10mm 80400046 M3X8mm Flat Head Hex Screw M3X8mm Button Head Hex Screw M3X10mm Button Head Hex Screw M3X8mm...
  • Page 37 PR SB401 Battery Cradle M3X10mm 80400046 68480116 Shorty Battery 66481146 M3X16mm 87400036 M2.6X6mm Flat Head Hex Screw 68400236 M2.6X16mm Flat Head Hex Screw 68480116 M3X10mm ButtonHead HexScrew M3X16mm Set Screw M2.6X16mm 82480016 M2.6X6mm 82480016 Battery Cradle M3X14mm 80400056 68480116 Saddle Battery...
  • Page 38 Wheels M3X8mm 82400026 M3X8mm Flat Head Hex Screw 68480036 71430046 66400286 Tires M4 Lock Nut M5 Lock Nut 12mm 68400076 83000020 12mm 68400066 83400036   ...

  • Page 39: Body Shell

    PR SB401-lw Body Shell M2.6X4mm Button Head Hex Scrw 66400946 68480906 0.5mm 68480906 M2.6X4mm 80400176  ...
  • Page 41 PR SB401-lw SETUP SHEET...
  • Page 42 PART LIST 68480016 68480036 68481036 68480056 1PCS 2PCS 2PCS 1PCS 1PCS 2PCS 1PCS 5*10mm 1PCS 2PCS 3PCS 2PCS 66400066 68480986 68480106 68480116 2PCS 1PCS 2PCS 1PCS 2PCS 1PCS 2PCS 2PCS 1PCS 2PCS 2PCS 2PCS 66400176 66400186 76480016 68480086 1PCS 2PCS 2PCS 1PCS 68480126...
  • Page 43 74.5mm 89mm 81mm 68mm 1PCS 2PCS 2PCS 1PCS     steel 64mm 1PCS SB401 FRONT CVD SET*2PCS SB401 COUPLER CVD SET*2PCS SB401 REAR CVD SET*2PCS   68481016 71400286 Light Weight-7075 steel 59mm 68mm 1.6mm 1PCS 1PCS 1PCS ...
  • Page 44 2PCS 67410026 66481106 68400116 66401726 #300 50mm 1.2mm 2PCS 2PCS 1PCS 66401976 31450016 66401986 68000010 4PCS 1PCS SB401 FRONT SUSPENSION SET*2PCS 68480176 SB401 REAE SUSPENSION SET*2PCS 1.0mm 66480356 79400036 79480036 79400066 2x10mm 3x52mm 3x36.8mm 4PCS 2PCS 4PCS 2PCS 68480876 80000010...
  • Page 45 Option Parts 66481216    55mm Ti 53mm Ti 46mm 70mm 2PCS 2PCS 150mm 68400096 68400106 66480866  White 14mm Mental C-hubs Mental C-hubs White 14mm (5 degrees)L/R (8degrees)L/R 2PCS 2PCS 1PCS 1PCS     Mental C-hubs Splipper cabon (11degrees)L/R...
  • Page 46 1/10 ELECT RIC 4WD OFF ROAD BUGGY COMPETITION LIGHTWEIGHT VERSION EMAIL / info@prengine.com.tw 10F., No.68, Zhongzheng Rd. Xinzhuang Dist., New Taipei City 24243, Taiwan (R.O.C.)
