ITEM NO:77500256

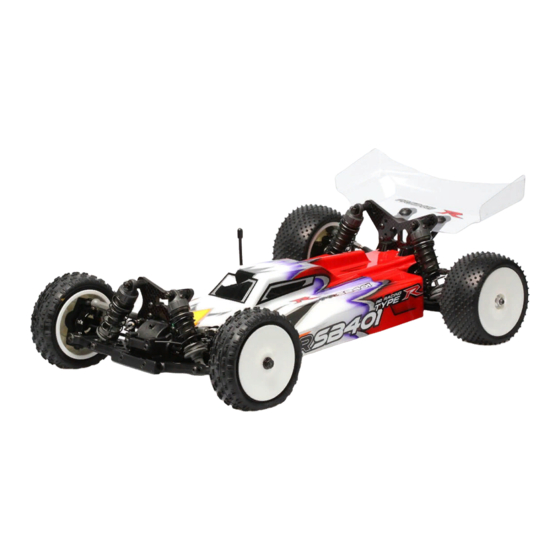

PR SB401-R 1/10 Electric 4wd Off Road Buggy Kit Lightweight Edition
(Slipper Clutch)
PR racing have been hard at work developing the next generation of the successful
SB401 platform and have made the SB401-R faster, quieter and easier to maintain and
tune. A number of key components have been totally redesigned to produce a better handling
and more forgiving car to drive. The main focus has been on the all new narrow 2mm 7075-T6
滾滾長江東逝水
chassis and plastic side-pods, which utilizes a carbon fibre re-enforced spine to control
torsional and longitudinal flex. The additional flex has proved to increase grip, and make the
car feel more balanced and easier to drive leading to faster, more consistent laps.
w w w. p r- rc . c o m
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for PR RACING PR SB401-R
Summary of Contents for PR RACING PR SB401-R

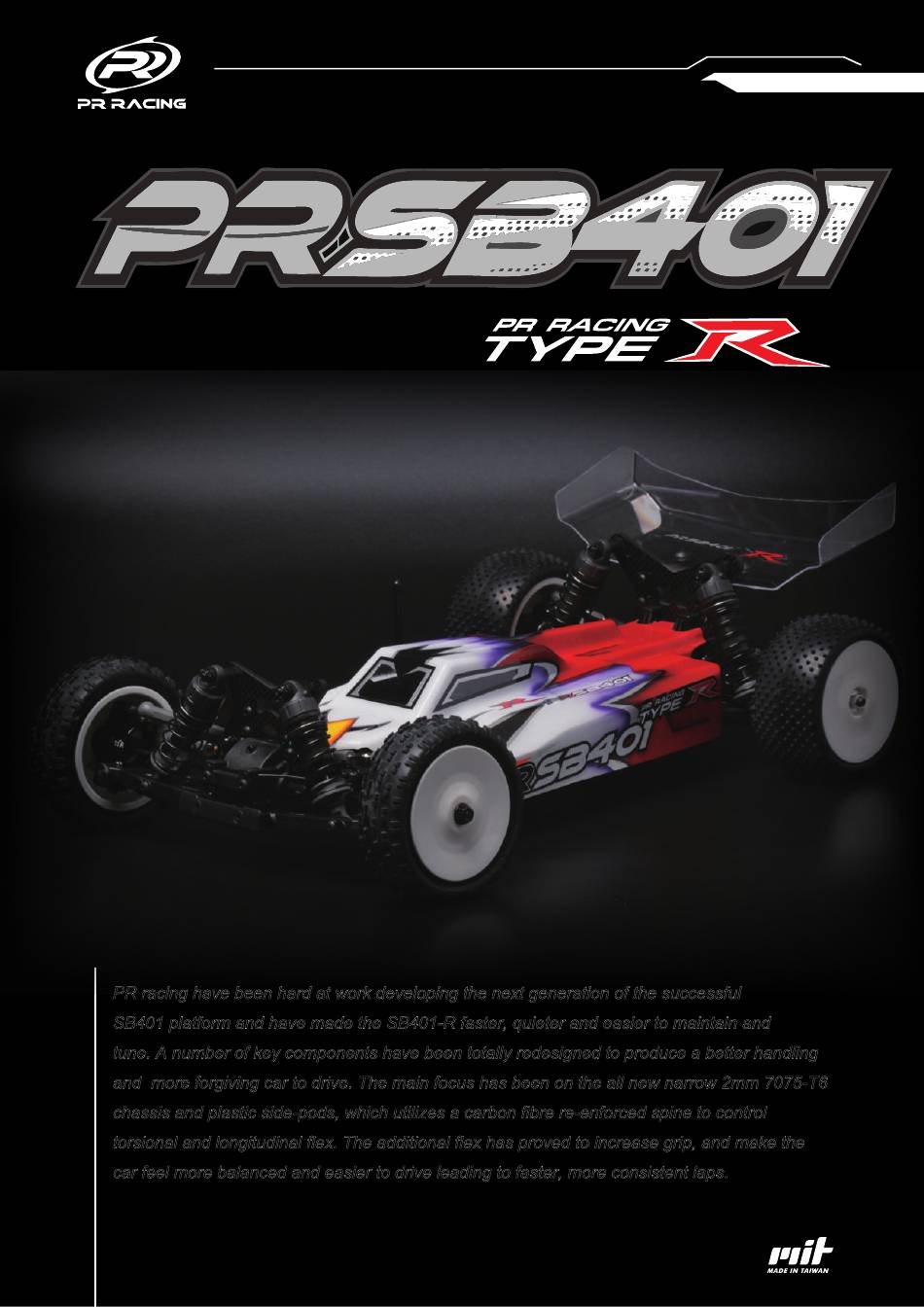

- Page 1 PR SB401-R 1/10 Electric 4wd Off Road Buggy Kit Lightweight Edition (Slipper Clutch) PR racing have been hard at work developing the next generation of the successful SB401 platform and have made the SB401-R faster, quieter and easier to maintain and tune.
-
Page 2: Health Warning
Name: PR SB401-R 1/10 Electric 4wd Off Road Buggy Kit PR racing have been hard at work developing the next generation of the successful SB401 platform and have made the SB401-R faster, quieter and easier to maintain and tune. -
Page 3: Specifications
Suspension and Steering • 12.75mm Type R shocks • Lower towers for ultra-low CofG • Suspension hangers with inserts for toe and anti-squat adjustment • Revised Ackerman geometry for improved steering feel • New shock seal caps and seals for ultra-smooth operation •... - Page 4 03-07 19-21 A1-Main Chassis Assembly- Chassis Brace Installation E1-Front & Rear Shock Assembly-R A2-Gear Diff Assembly E2-Front & Rear Shock Installation A3-Slipper Assmebly E3-Motor Installation A4-Gear Box Assembly E4-Mounting Tires, Wheel Installation A5 Rear Central Transmission 08-11 B1-Suspension Mount Installation B2-Front Hub Carrier Assembly(Left Side) B3-Suspension Mount Installation-Sway Bar Installation B4-Front Upper Turnbuckle Assembly...
- Page 5 Screw Cement Round Cutter & Sander Grease Needle Nose Pliers Sharp Hobby Knife Ware Cutters For trimming bodies Cutting along curved lines was never so easy! SP Knife Edge Reamer Hex Wrench Ball Differential Grease 1.5mm Do not pre-drill as precise drilling of 1mm to 15mm holes can be performed after 2.0mm...
- Page 6 Main Chassis Assembly Chassis Brace Installation Sponge M3X6mm Flat Head Screws 82400016 M3X8mm Flat Head Screws 82400026 M3X8mm Button Head Cap Screw 80400036 77480026 M3X8mm Carbon 77500086 2.5mm 82400026 Lateral Plate 54430028-Sponge Set R 10x99x 1mmor3 mm 77500096 54430028-Sponge 10x99x1 or3 mm 77480016 Carbon 2.5mm...
- Page 7 Gear Diff Assembly 66481366 +1.6mm M2.6X8mm Flat Head Screw 請照順序對角鎖緊差速上蓋螺絲 82400066 → → → 82400066 M2.6x8mm 5X8x0.8mm Shim 85440170 3.5mm 4X10x0.15mm Shim 85400016 77500246(39T) R 85440160 66480336 31450016-O-ring-5x1.5mm 85440170-5x8x0.8washer 85400016 85400016 Tighten equally in the order of (5x8x0.8)washer 77500226 85440170 →...
- Page 8 Slipper Assmebly M3X3mm Set Screw 87400016 M3X6mm Flat Head Screw 82400016 Tighten the slipper nut until the Pin - 2 x 7.8mm spring is completely compressed, 79400096 to break it in first. Then adjust the slipper. 82400016 Pin - 2 x 10.8mm m3x6mm 79400016 77500186...
- Page 9 Front Gear Box Assembly Front Front Shock Tower nstallation 4.8x8mm Ball Studs-68430046 組裝時請注意齒輪方向 Please notice the direction M3 Lock Nut -83400106 of gear. M3X10mm Button Head Cap Screw 80400046 M4X3mm Set Screw-78400016 5x8x0.2mm-Shim-85440010 68480986 ↙ 10X12.5X0.1-Shim-85440230 68480336 Front 66401096 79400086(2x9.8mm) 5x10x4mm 78400016 zz Ball Bearing-89430010...
- Page 10 Rear Gear Box Assembly Front Rear Shock Tower Installation 組裝時請注意齒輪方向 4.8x8mm Ball Studs-68430046 Please notice the direction of gear. M3 Lock Nut -83400106 M3X10mm Button Head Cap Screw 80400046 M4X3mm Set Screw-78400016 5x8x0.2mm-85440010 M3X10mm 89430030 80400046 Front 10x15x4mm zz 10X12.5X0.1-85440230 Ball Bearing 10X12.5X0.1 85440230...
- Page 11 Suspension Mount Installation FRONT HANGER INSERTS Numbering SQUAT M3X6mm Flat Head Screw +0.7 82400016 +1.4 -0.7 M3X10mm Flat Head Screw 82400106 +0.7 -1.4 77500156 Suspension Hanger Insert M3X15mm Flat Head Screw -0.7 82400176 77500116 Suspension Mount F-10 Suspension Bushing Suspension Mount placement direction F-11 -0.9 F-12...
-
Page 12: Left Side
Front Hub Carrier Assembly (Left Side) Left Side 68480346 79400086 Button Head Cap-80400206 75mm Pin2x9.8mm 68430036 Screw M3x12mm 4.8x6mm Ball Studs 68481246 Aluminum 11 Degree 4.8mmx6mm-68430036 66401096 77500266 Front Spindle Carrie Ball Studs 0.8mm Note position 89430010 68480976 5x10x4mm zz 68480336 Ball Bearing 5x10x4mm zz Ball Bearing... - Page 13 Suspension Mount Installation- Sway Bar Installation M3X6mm Flat Head Screw 82400016 Set Screw 68480756 M3X10mm 2.1mm M2.5X5.5mm Button Head Cap Screw Shim 3X4.6X0.1mm 87400026 80400016 85440220 77430036 gray M3X8mm Button Head Cap Screw Assemble 80400036 2 sway bar rod. M3X3mm Set Screw 87400016 M3X6mm Set Screw 78400026...
- Page 14 Front Upper Turnbuckle Assembly One side is reverse threaded. 36mm Turnbuckles 77430016 " Assemble 2 front links and 2 steering rod links" 15.50 One side is reverse 28.2mm threaded. 28.2mm 28.2 15.50 77430016 77430036 36mm gray 28.2 Gearbox-Reinforcement - Front 77500026 3x15mm Flat Head Screws 82400176...
- Page 15 RF Suspension Mount Suspension Mount placement direction M3X10mm Button Head Cap Screw 80400046 68480106 Wing Mount M3X6mm Flat Head Screw 82400016 77500156 Suspension Hanger Insert M3X10mm Flat Head Screw 82400106 80400046 M3x10mm Suspension 77500036 M3X15mm Flat Head Screw Gearbox Reinforcement Block - Rear Bushing 82400176 77500156...
- Page 16 Rear Left Hub Carrier Assmebly Assemble the right left side in the same manner. m3x6mm Flat Head Screws 82400016 Rear Left Hub Carrier Assmebly M2.5X4mm Button Head Screw 89430020 80400016 71400136 66401096 5x13x4mm zz 79400016 65mm 2 x 10.8mm Ball Bearing 68440080 79400086 10x15x4mm zz Ball Bearing...
- Page 17 Rear Left Hub Carrier Assmebly 77500156 Note position Suspension Bushing (Carpet地毯)-R2 77500136 (Dirt泥地)-R17 Suspension Mount-RR 79480036(3x52mm) REAR HANGER INSERTS 77500076 1.95mm Numbering SQUAT +1.6 77500076 +1.6 +0.7 1.95mm +1.6 +1.4 +1.6 -0.7 +1.6 M3X6mm +1.6 +0.7 82400016 +1.6 -1.4 +1.6 -0.7 +1.6 R-10...
- Page 18 Rear Upper Rod -Turnbuckle Assembly 68430036 36mm Turnbuckles 4.8x6mm Ball Studs-68430036 4.8x6mm 77430016 77500036 M3X15mm Flat Head Screw 82400176 85440310 77430036 Silver Aluminum 31mm Spacer -1mm 36mm Turnbuckles One side is reverse 77430016 threaded. 85440310 Silver Aluminum 31mm Silver Aluminum Spacer -1mm Spacer -1mm 3x6.6x1mm-85440310 68430036...
- Page 19 Bell Crank Installation 66402256 4.8x6mm Ball Studs 68430046 85440216 80400046 68430036 4.8x8mm 3x8x0.8mm M3x10mm 83400106 Ball Studs 80400046 4.8x8mm Ball Studs M3x10mm 68430046 77480046 85440210 68480036 3x8x0.8mm 2019-NEW 85440310 M3 Lock Nut-83400106 3x6.6x1mm 68430036 Spacer 00430025 4.8x6mm Ball Studs shim-3x8x0.8mm-85440210 68480036 68430036 4.8x6mm...
- Page 20 Turnbuckle Assembly-Steering Rod -Servo Rod One side is reverse threaded. 28.2 36mm Turnbuckles 77430016 15.40 Steering Rod Servo Rod 14.80 77430016 36mm Steering Rod 28.2 Servo Rod Assemble 2 front 2 sway bar rod 77430016 36mm Steering Rod Steering Servo 3x6.6x1mm-85440310 68430036 83400106...
- Page 21 Center Mount Plate 77480066 Center Mount Plate 80400026 M3x6mm M3 x6mm-8040026 Button Head Cap Screw 10x15x4mm zz Ball Bearing 89430030 10x15x4mm zz Ball Bearing 89430030 Battery Plate Installation 80400026 2.5x1.5mm oring 3x6mm M3 x6mm-80400026 66481446 68480956 BatteryHolder Nut Button Head Cap Screw M3x16mm Set Screw M3x16mm Set Screw 87400036...
- Page 22 Front & Rear Shock Assembly-R Rear Buildx2 Front Buildx2 83400016 17430076-1.7mmx3 17430046 (Black) 1.5mmx3(White) 85440070 66400656 Front Shock Shaft KIT-3.08*42mm 66400656 74480026 Ti Coated 74480016 Rear Shock Shaft 66400676 66400666 68410066 Ti Coated POM1-4mm P3 O-Rings 66400666 55430076B-White Adjust according to 3.08*49mm road conditions 55430076A-Black...
-
Page 23: Motor Installation
Front & Rear Shock Installation 80400076 Before using the plastic nut, M3 x 25mm drive the screw in and out a Button Head Cap Screw M3 x 25mm 80400126 couple times before securing 80400076 M3 x 28mm the nut onto the shock seat. 68410066 Flat Head Screws M3x14mm 82400046... - Page 24 Mounting Tires Wheel Installation M3x8mm Flat Head Screws 82400026 M4 Serrated flange nut 7mm Hex-83400076 Pull the sidewall of the tire slightly away Place the tire insert into the tire form the rimand apply CA(Cyanoacrylate) and tire onto the weel. M5 Aluminum Nut 7mm Hex glue in between the tire bead and rim 83000020...
- Page 26 CIRCUIT INDOOR OUTDOOR DIRT ASTROTURF CARPET PR SB401-R 1/10 Electric 4wd Off Road Buggy Kit Lightweight Edition GLASS WOOD DUSTY SMOOTH (Slipper Clutch) ITEM NO:77500256 BUMPY HARD PACKED CLAY BIUE GROOVE DRIVER DATE LOW TRACTION MED TRACTION HIGH TRACTION CAMBER...
- Page 27 NOTE...
- Page 28 PR SB401-R 1/10 Electric 4wd Off Road Buggy Kit Lightweight Edition (Slipper Clutch) EMAIL / infoprracing@gmail.com 1.4.2Version...
