KDS-SW2-EN7 Network Settings

The device enables performing the following actions:
•
Defining Interface Settings
•
Defining IP Casting Mode Setting
•
Managing TCP/UDP Ports
Defining Interface Settings
Define interface settings for each of the Ethernet ports.
To define interface settings:
1. In the Navigation pane, Select Device Settings. The General tab in the Device Settings
page appears (see
2. Select the Network tab. The Network tab appears.
3. Set the Media port Stream service parameters:
▪ DHCP mode – Set DHCP to On (default) or Off.
▪ IP Address – When DHCP mode is set to Off, the device uses a static IP address.
This requires entering mask and gateway addresses.
▪ Mask Address – Enter subnet mask.
KDS-SW2-EN7 – Using KDS-SW2-EN7 Embedded Web Pages
on page 32.
and TTL on page 33.
on page 33.
Figure 18).

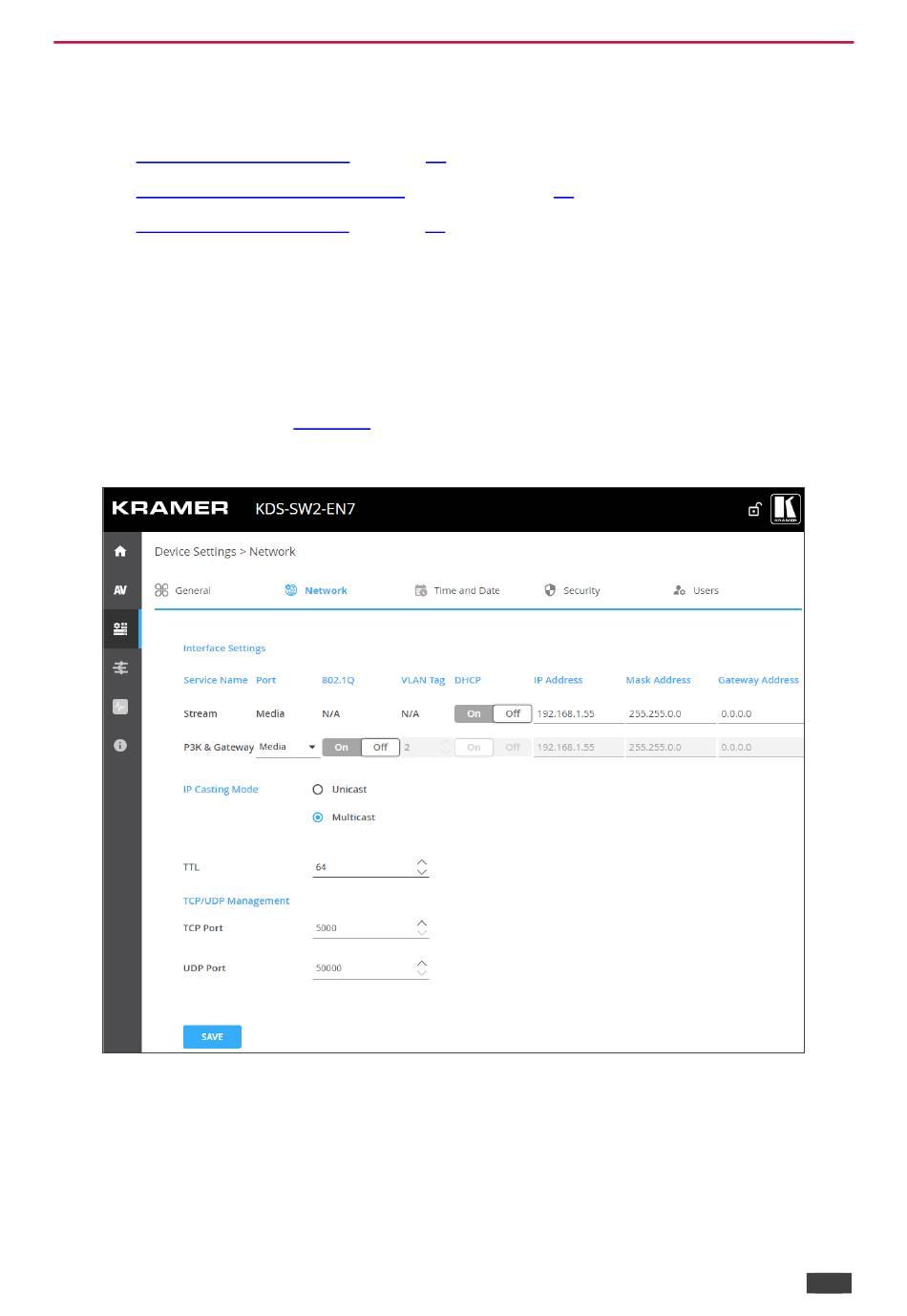

Figure 19: Device Settings Page – Network Tab
