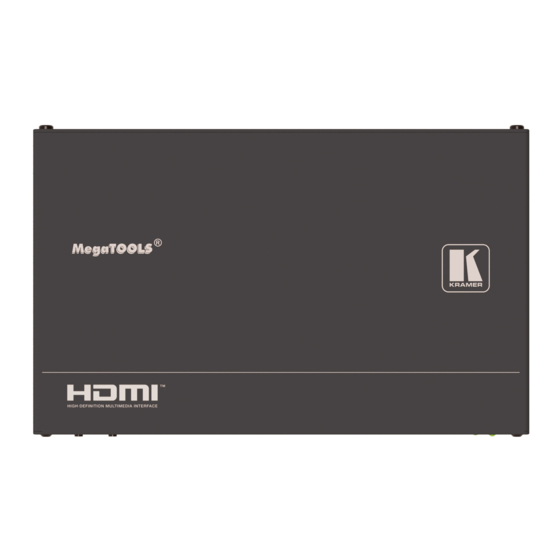

Kramer KDS-EN6 Api Manual
Hide thumbs
Also See for KDS-EN6:
- User manual (60 pages) ,
- Api manual (49 pages) ,
- Quick start manual (2 pages)
Table of Contents
Advertisement
Quick Links
API Guide
MODEL:
KDS-EN6, KDS-DEC6
Application Programming Interface
SAFETY WARNING
Disconnect the unit from the power supply before opening and servicing
For the latest information on our products and a list of Kramer distributors, visit our Web site where
updates to this user manual may be found.
We welcome your questions, comments, and feedback.
www.KramerAV.com
info@KramerAV.com
P/N: 2900-301422 Rev 1
P/N:
1
Rev:
www.kramerAV.com
Advertisement
Table of Contents
Related Manuals for Kramer KDS-EN6
Summary of Contents for Kramer KDS-EN6
- Page 1 SAFETY WARNING Disconnect the unit from the power supply before opening and servicing For the latest information on our products and a list of Kramer distributors, visit our Web site where updates to this user manual may be found. We welcome your questions, comments, and feedback.
-
Page 2: Table Of Contents
Overview Astparam APIs Overview Accessing Astparam Start/Stop KMoIP [KDS-DEC6] Console APIs Switch Channel [KDS-DEC6] Stop Link [KDS-DEC6] Get Video Manager State Get Attached Client IP [KDS-EN6] Example Astparam APIs Generic IP Network Setting Video over IP Video Wall HDCP Audio... -
Page 3: Introduction
Kramer Electronics Ltd. Introduction Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been providing a world of unique, creative, and affordable solutions to the vast range of problems that confront the video, audio, presentation, and broadcasting professional on a daily basis. In recent years, we... -
Page 4: Astparam Apis Overview
The firmware decides how to use it. The firmware does not validate the Astparam, so any typed error could cause unexpected results. All configuration modifications are saved in RAM until astparam save command is called. KDS-EN6, KDS-DEC6 – Introduction... -
Page 5: Accessing Astparam
KMoIP Decoder/Encoder n: enable KMoIP Syntax [Start] >>astparam s no_kmoip n Syntax [Stop] >>astparam s no_kmoip y Usage Information: • This command is for KMoIP. • This command is used for runtime control. KDS-EN6, KDS-DEC6 – Accessing Astparam... -
Page 6: Console Apis
To simplify configuration process, FW will automatically map • ‘channel’ to ‘multicast IP’. Users don’t have to specify ‘multicast IP’. • For a trick to improve video switching time, please see Ex5 in following examples section. KDS-EN6, KDS-DEC6 – Console APIs... - Page 7 "Switchto X", where X=Channel number command is a legacy command being used for switch channel. It is still being supported but we strongly encourage to use e_reconnect command instead. Its support will be discontinued in the next KDS-6 major release. KDS-EN6, KDS-DEC6 – Console APIs...
-
Page 8: Stop Link [Kds-Dec6]
▪ s_init: System is under initialization. ▪ s_idle: System is idle. Services are stopped. ▪ s_srv_on: Services are started. ▪ s_error: fatal error. Example Ex1: Get video manager current state. /# lmparam g STATE s_srv_on KDS-EN6, KDS-DEC6 – Console APIs... -
Page 9: Get Attached Client Ip [Kds-En6]
Kramer Electronics Ltd. Get Attached Client IP [KDS-EN6] Syntax lmparam g USB_CLIENT_IP Result • xxx.xxx.xxx.xxx: Return the IP address of last requested USBoIP client. If there is no one requested, it returns ‘0.0.0.0’. Usage Information Version History FW >= A7.0.0 Examples Ex1: Get current USBoIP status. -
Page 10: Example
Kramer Electronics Ltd. Example KDS-EN6, KDS-DEC6 – Example... -
Page 11: Astparam Apis
Astparam, hostname_id, can be any value as user’s wish in FW >= 7.2. However, FW by default will still update hostname based on ch_select. To set hostname_id other than ch_select, please set ‘hostnamebydipswitch’ to ‘n’. KDS-EN6, KDS-DEC6 – Astparam APIs... - Page 12 Ethernet switch may impact. Just use default value should be good to go. The specified time interval is used to specify the minimum interval of sending IGMP leave packet. KDS-EN6, KDS-DEC6 – Astparam APIs...
-
Page 13: Video Over Ip
‘osd_pic_on.sh’ under 2160p. Set to ‘0’ means ‘pass-through’. Client will output the same color format as Host input. Note that doing this will break features like ‘video fast switching’ and ‘osd_pic_on.sh’. KDS-EN6, KDS-DEC6 – Astparam APIs... -
Page 14: Video Wall
Description Value Host/ Client hdcp_always_on Always enable HDCP 1.4 y: enable n: disable (default) hdcp_always_on_22 Always enable HDCP 2.2 y: enable n: disable (default) Don’t accept HDCP video source. v_reject_hdcp y: enable n: disable (default) KDS-EN6, KDS-DEC6 – Astparam APIs... -
Page 15: Audio
0~65535 If device address is 65535 (default), IR software decode function only displays decoded NEC result includes device address and button code. This is for remote control learning purpose. KDS-EN6, KDS-DEC6 – Astparam APIs... -
Page 16: Serial Over Ip
CECoIP is enabled. cec_drv_option 32bits bitmap CEC driver options to 0: (default) tweak driver behavior. Default value is 0. 0x00000001: Disable CEC extension All brand names, product names, and trademarks are the property of their respective owners. KDS-EN6, KDS-DEC6 – Astparam APIs...
