Scan for full manual
Step 1: Check what's in the box

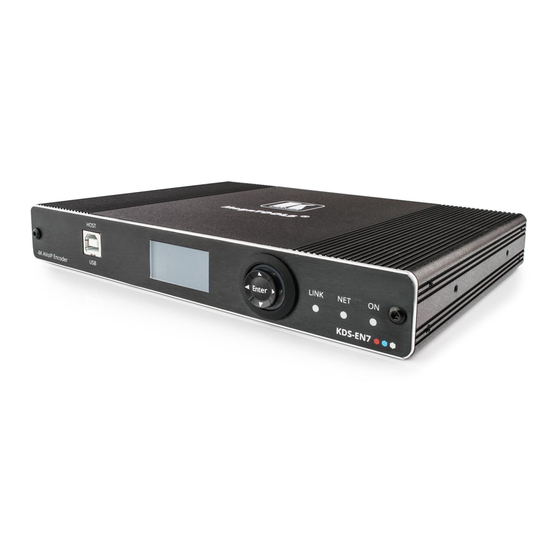

KDS-EN7 4K AVoIP Encoder
KDS-DEC7 4K AVoIP Decoder
Step 2: Get to know your KDS-EN7 and KDS-DEC7
KDS-EN7
#
Feature
1
HOST USB Type B Port
2
LCD Display
3
Menu Navigation
Button
4
LINK LED
5
NET LED
6
ON LED
7
24V/1A DC Connector
8
RESET Recessed Button
9
LAN MEDIA 1G(PoE) RJ-45
Port
10
LAN SERVICE 1G RJ-45
Port
11
RS-232 3-pin Terminal Block
Connector
12
AUDIO IN/OUT 5-pin
Terminal Block Connector
13
IR 3.5 Mini Jack
14
HDMI IN Connector
15
HDMI OUT Connector
KDS-EN7 / KDS-DEC7 Quick Start

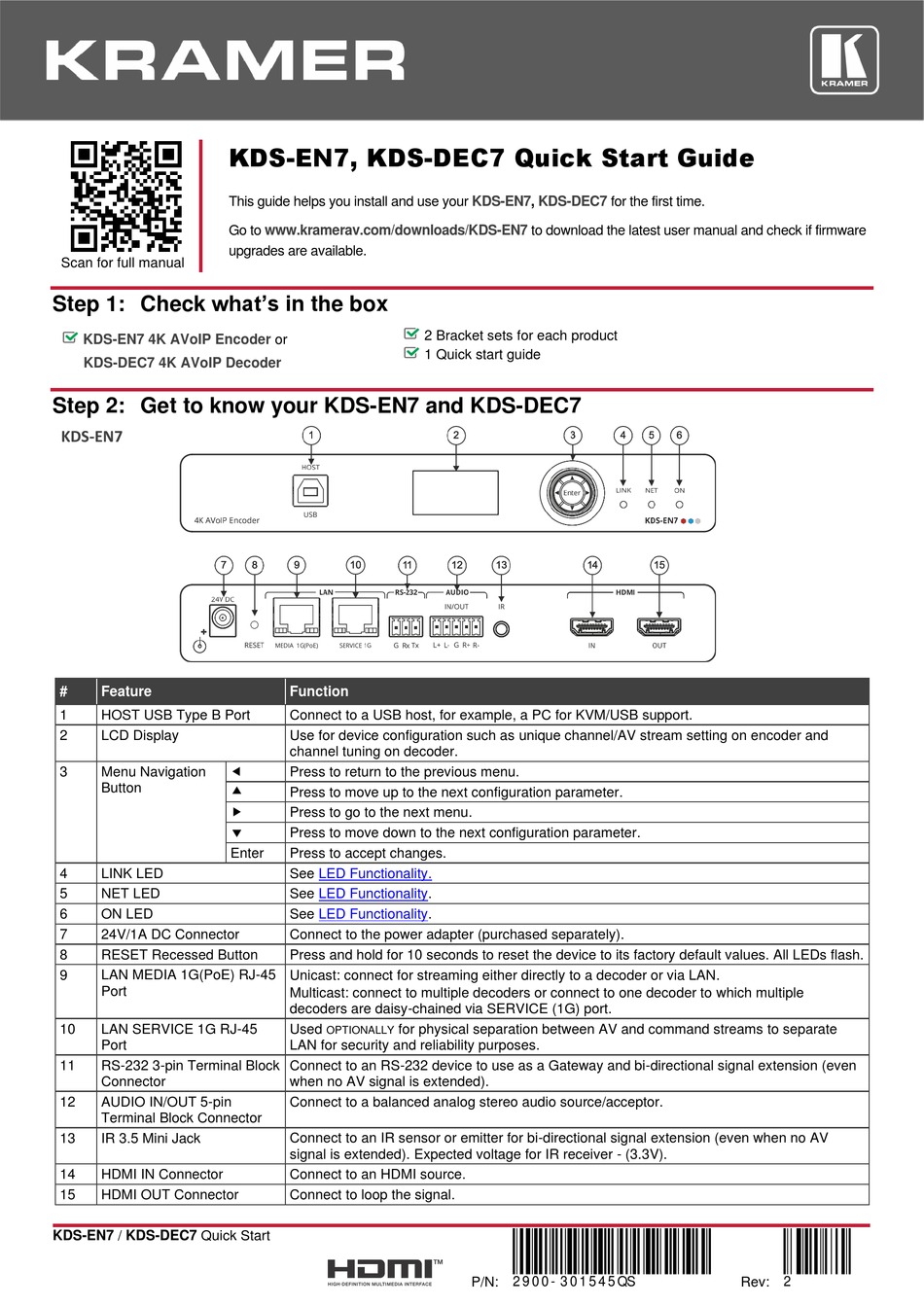

KDS-EN7, KDS-DEC7 Quick Start Guide
This guide helps you install and use your KDS-EN7,
Go to
www.kramerav.com/downloads/KDS-EN7
upgrades are available.
or
Function
Connect to a USB host, for example, a PC for KVM/USB support.
Use for device configuration such as unique channel/AV stream setting on encoder and
channel tuning on decoder.
Press to return to the previous menu.
Press to move up to the next configuration parameter.
Press to go to the next menu.
Press to move down to the next configuration parameter.
Enter
Press to accept changes.
See
LED Functionality.
See
LED
Functionality.
See
LED
Functionality.
Connect to the power adapter (purchased separately).
Press and hold for 10 seconds to reset the device to its factory default values. All LEDs flash.
Unicast: connect for streaming either directly to a decoder or via LAN.
Multicast: connect to multiple decoders or connect to one decoder to which multiple
decoders are daisy-chained via SERVICE (1G) port.
Used
for physical separation between AV and command streams to separate
OPTIONALLY
LAN for security and reliability purposes.
Connect to an RS-232 device to use as a Gateway and bi-directional signal extension (even
when no AV signal is extended).
Connect to a balanced analog stereo audio source/acceptor.
Connect to an IR sensor or emitter for bi-directional signal extension (even when no AV
signal is extended). Expected voltage for IR receiver - (3.3V).
Connect to an HDMI source.
Connect to loop the signal.
KDS-DEC7
to download the latest user manual and check if firmware
2 Bracket sets for each product
1 Quick start guide
P/N: 2 9 0 0 - 3 0 1 5 4 5 QS
for the first time.
Rev: 2
Advertisement
Related Manuals for Kramer KDS-EN7
Summary of Contents for Kramer KDS-EN7
- Page 1 KDS-EN7, KDS-DEC7 Quick Start Guide This guide helps you install and use your KDS-EN7, KDS-DEC7 for the first time. Go to www.kramerav.com/downloads/KDS-EN7 to download the latest user manual and check if firmware upgrades are available. Scan for full manual Step 1: Check what’s in the box...
- Page 2 Expected voltage for IR receiver – (3.3V). HDMI IN Connector Connect to an HDMI source. Can be used, alternatively, as a backup input to the decoder. HDMI OUT Connector Connect an acceptor. LED Functionality KDS-EN7 KDS-DEC7 LEDs function as follows: Color Definition LINK LED...
- Page 3 Step 3: Mount KDS-EN7 Install KDS-EN7 using one of the following methods: • Attach the rubber feet and place the unit on a flat surface. • Fasten a bracket (included) on each side of the unit and attach it to a flat surface www.kramerav.com/downloads/KDS-EN7...
- Page 4 LINK LED flashes (indicating that no streaming activity is detected). Change channel number using arrow buttons: ▪ For the KDS-EN7, In the LCD screen menu, go to DEV SETTINGS > CH DEFINE, set a unique channel number and press Enter to save your selection. ▪...
