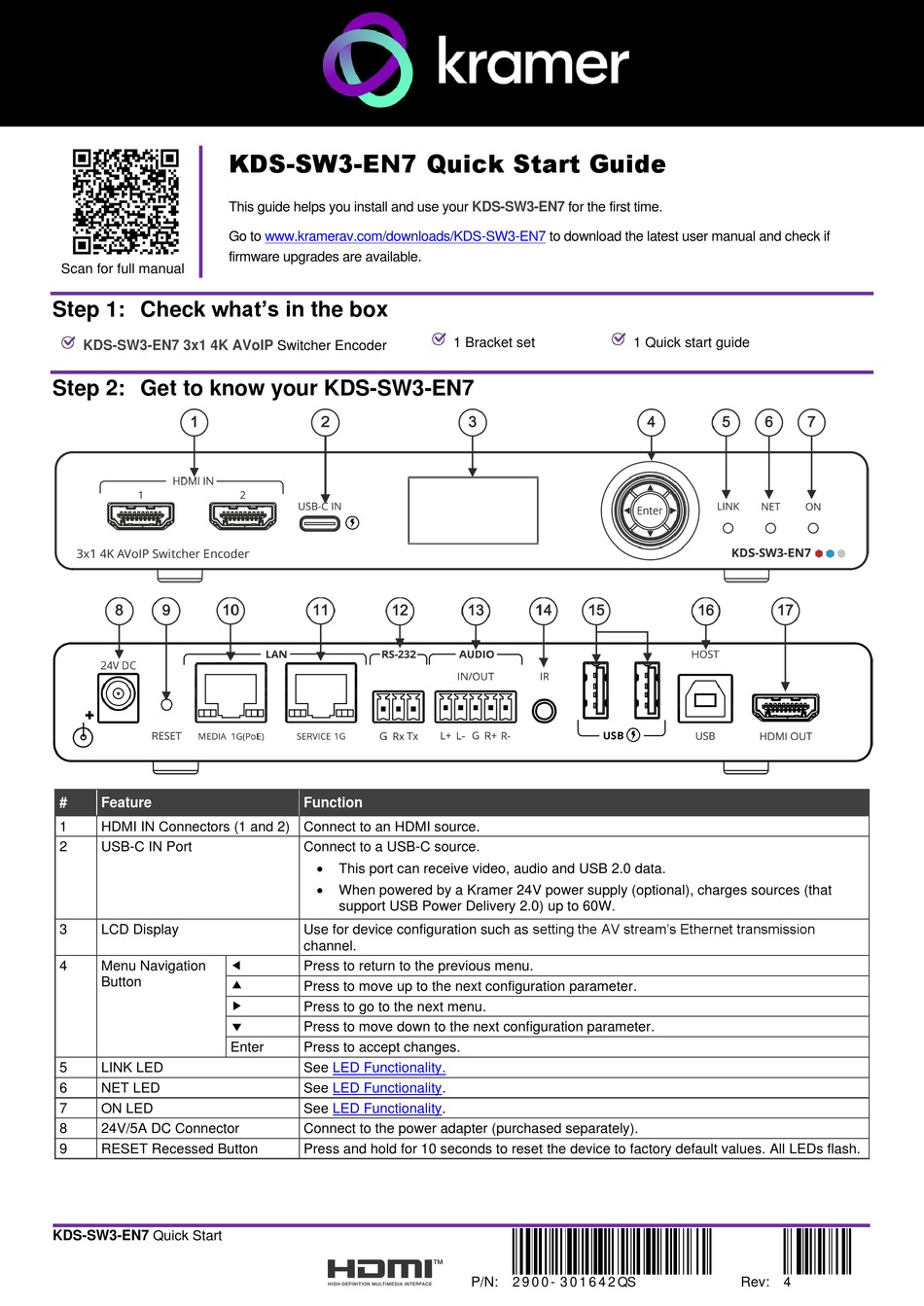

Kramer KDS-SW3-EN7 Quick Start Manual

Scan for full manual
Step 1: Check what's in the box
KDS-SW3-EN7 3x1 4K AVoIP

Step 2: Get to know your KDS-SW3-EN7

# Feature
1 HDMI IN Connectors (1 and 2) Connect to an HDMI source.
2 USB-C IN Port
3 LCD Display
4 Menu Navigation
Button
5 LINK LED
6 NET LED
7 ON LED
8 24V/5A DC Connector
9 RESET Recessed Button
KDS-SW3-EN7 Quick Start
KDS-SW3-EN7 Quick Start Guide
This guide helps you install and use your
Go to www.kramerav.com/downloads/KDS-SW3-EN7
firmware upgrades are available.
Switcher Encoder
Function
Connect to a USB-C source.
•
This port can receive video, audio and USB 2.0 data.
•
When powered by a Kramer 24V power supply (optional), charges sources (that
support USB Power Delivery 2.0) up to 60W.
Use for device configuration such as setting the AV stream's Ethernet transmission
channel.

Press to return to the previous menu.

Press to move up to the next configuration parameter.

Press to go to the next menu.

Press to move down to the next configuration parameter.
Enter Press to accept changes.
See LED Functionality.
See LED Functionality.
See LED Functionality.
Connect to the power adapter (purchased separately).
Press and hold for 10 seconds to reset the device to factory default values. All LEDs flash.
KDS-SW3-EN7 for the first time.
to download the latest user manual and check if
1 Bracket set
P/N: 2 9 0 0 - 3 0 1 6 4 2 QS
1 Quick start guide
Rev: 4
