Step 1: Check what's in the box
KDS-SW2-EN7 2x1 4K AVoIP
Step 2: Get to know your KDS-SW2-EN7
#
Feature
1
HDMI IN Connector
2
USB-C IN Port
3
LCD Display
4
Menu Navigation
Button
5
LINK LED
6
NET LED
7
ON LED
#
Feature
8
24V/5A DC Connector
9
RESET Recessed Button
10
LAN MEDIA 1G(PoE) RJ-45
Port

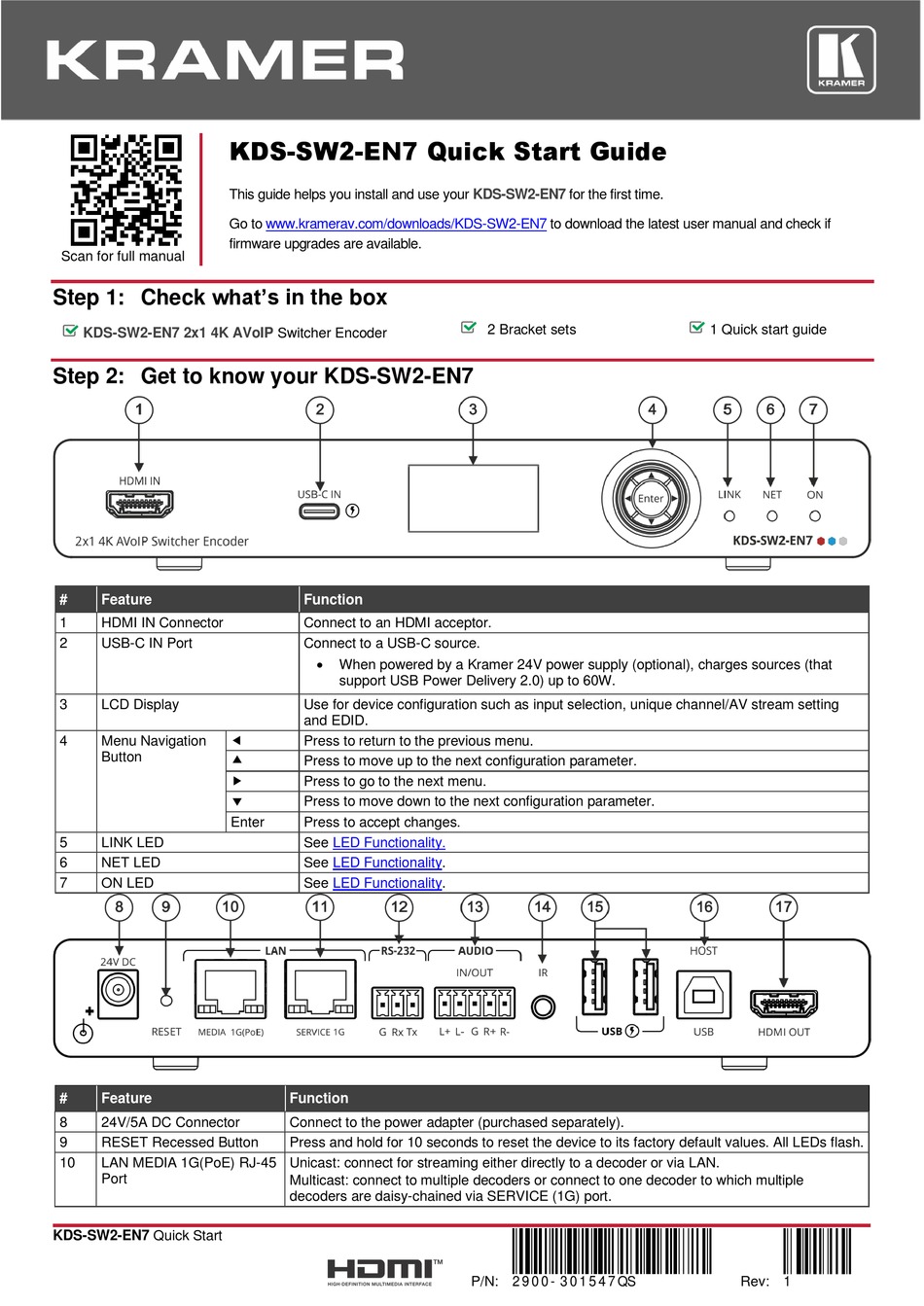

KDS-SW2-EN7 Quick Start
KDS-SW2-EN7 Quick Start Guide
This guide helps you install and use your
Go to
www.kramerav.com/downloads/KDS-SW2-EN7
firmware upgrades are available.
Switcher Encoder
Function
Connect to an HDMI acceptor.
Connect to a USB-C source.
•
When powered by a Kramer 24V power supply (optional), charges sources (that
support USB Power Delivery 2.0) up to 60W.
Use for device configuration such as input selection, unique channel/AV stream setting
and EDID.
Press to return to the previous menu.
Press to move up to the next configuration parameter.
Press to go to the next menu.
Press to move down to the next configuration parameter.
Enter
Press to accept changes.
See
LED Functionality.
See
LED
Functionality.
See
LED
Functionality.
Function
Connect to the power adapter (purchased separately).
Press and hold for 10 seconds to reset the device to its factory default values. All LEDs flash.
Unicast: connect for streaming either directly to a decoder or via LAN.
Multicast: connect to multiple decoders or connect to one decoder to which multiple
decoders are daisy-chained via SERVICE (1G) port.
KDS-SW2-EN7
for the first time.
to download the latest user manual and check if
2 Bracket sets
P/N: 2 9 0 0 - 3 0 1 5 4 7 QS
1 Quick start guide
Rev: 1
