6. Set the row and column numbers as they are set physically.
For example, if the decoder setup is a 2x2 video wall, set Row to 2 and Column to 2.
7. Check the physical location of the Master decoder (lower left size in this example).
The MAC address is automatically entered.
8. Manually enter the other (slave) decoder MAC addresses according to the physical
setup.
9. Click Slave.
KVM Roaming is configured.
KDS-SW2-EN7 – KVM Roaming, OSD menu and Fast Switching

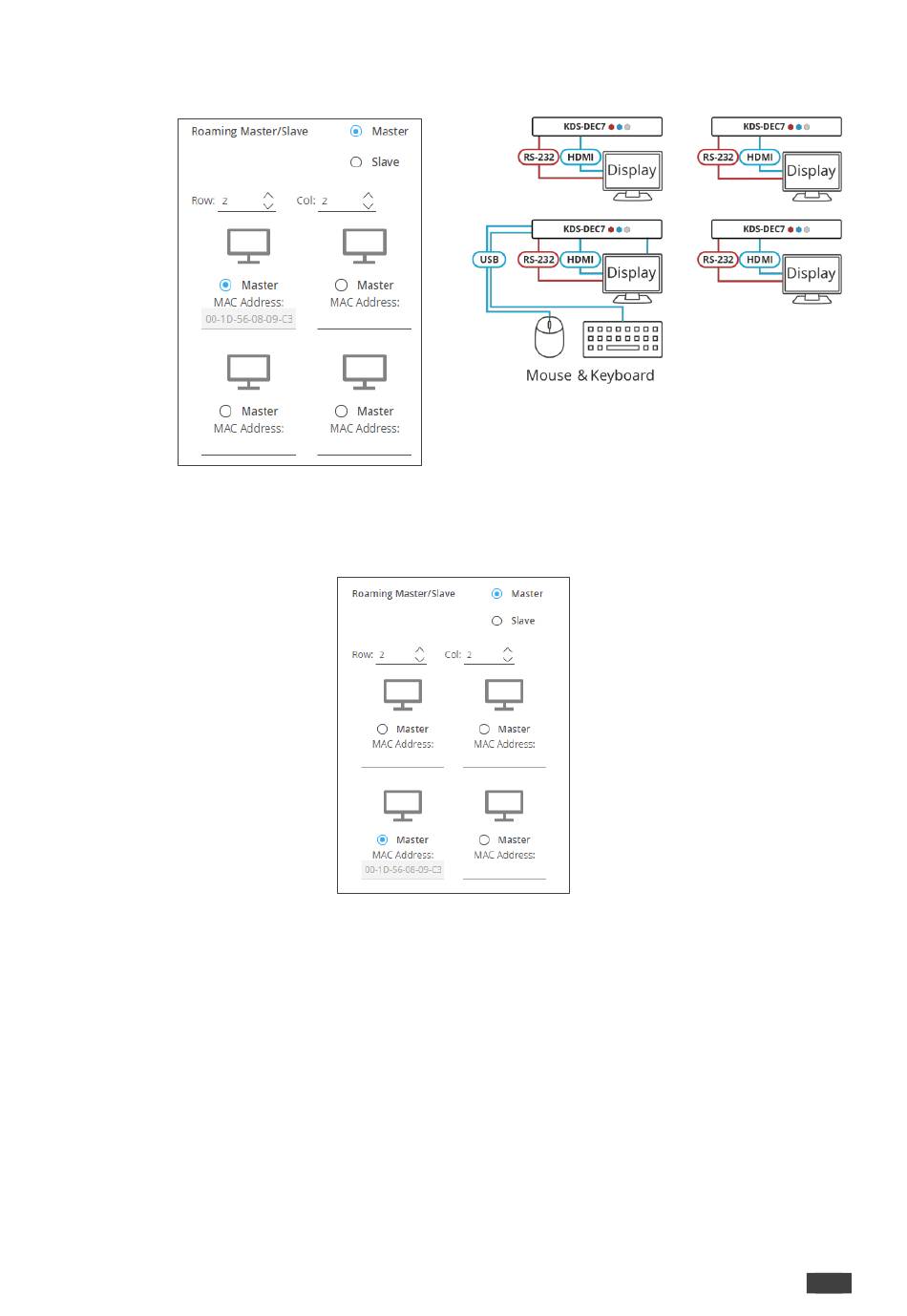

Figure 41: Setting the decoder configuration
Figure 42: Setting Master MAC Address
