Kramer KDS-17EN User Manual

4k60 4:4:4 avoip encoder / decoder
Hide thumbs Also See for KDS-17EN:

Advertisement

Quick Links

Download this manual

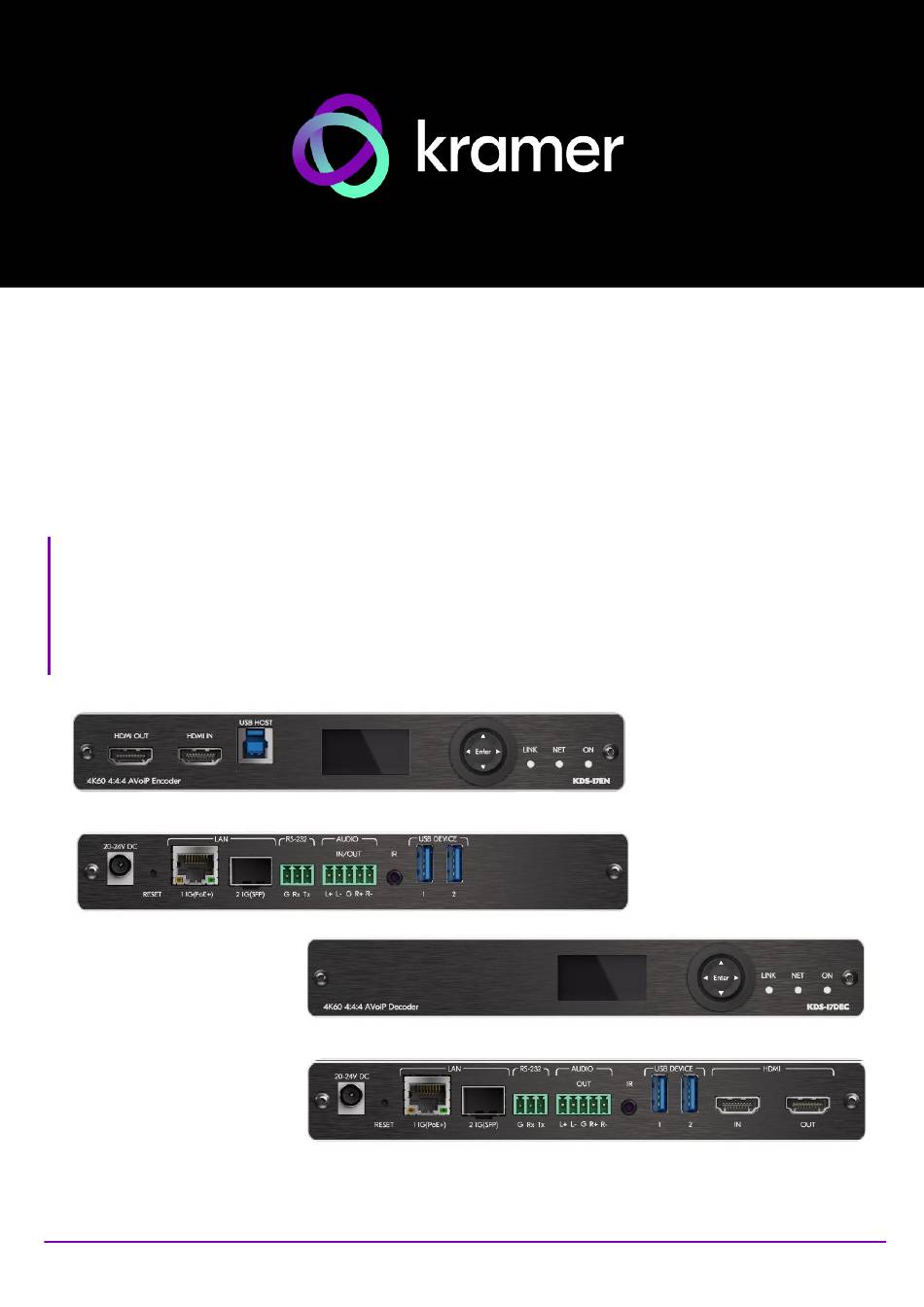

USER MANUAL
MODELS:
KDS-17EN
4K60 4:4:4 AVoIP Encoder / Decoder
P/N: 2900-301718 Rev 4
/
KDS-17DEC
www.kramerav.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the KDS-17EN and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Kramer KDS-17EN

Summary of Contents for Kramer KDS-17EN

  • Page 1 USER MANUAL MODELS: KDS-17EN KDS-17DEC 4K60 4:4:4 AVoIP Encoder / Decoder P/N: 2900-301718 Rev 4 www.kramerav.com...
  • Page 2 9.7 Diagnostics: Status and Connections 9.8 About 9.9 Upgrading Firmware Defining Dante Audio as an Audio Source or Destination 10.1 Defining Dante input to the KDS-17EN encoder 10.2 Defining Dante output from the KDS-17DEC decoder 10.3 Using Dante Software Technical Specifications 11.1 KDS-17EN Specifications...
  • Page 3 2 Introduction Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been providing a world of unique, creative, and affordable solutions to the vast range of problems that confront the video, audio, presentation, and broadcasting professional on a daily basis. In recent years, we...
  • Page 4 European Advanced Recycling Network (EARN) and will cover any costs of treatment, recycling and recovery of waste Kramer Electronics branded equipment on arrival at the EARN facility. For details of Kramer’s recycling arrangements in your particular country go to our recycling pages at www.kramerav.com/quality/environment.
  • Page 5 Typical Applications KDS-17EN / KDS-17DEC are ideal for the following typical applications: • Real-time essential installations such as command and control rooms. • Large scale AV content sharing installations using existing wires and infrastructure in corporate offices and government applications.
  • Page 6 3 Defining KDS-17EN Figure 1: KDS-17EN 4K60 4:4:4 AVoIP Encoder Feature Function HDMI OUT Connector Connect to loop the signal. HDMI IN Connector Connect to an HDMI source. HOST USB Type B Port Connect to a USB host, for example, a PC for KVM/USB support.
  • Page 7 Connect to an IR sensor or emitter for bi-directional signal extension (even when no AV signal is extended). Expected voltage for IR receiver - (3.3V). USB Type A Charging Ports Connect to USB devices, for example, to a speakerphone and webcam. (1 and 2) KDS-17EN / KDS-17DEC – Contents...
  • Page 8 22 20-24V DC Connector Connect to the optional 20-24V DC power adapter (purchased separately). 23 RESET Recessed Button Press and hold for 10 seconds to reset the device to its factory default values. All LEDs flash. KDS-17EN / KDS-17DEC – Contents...
  • Page 9 USB Type A Charging Ports Connect to USB devices, for example, to a speakerphone and webcam. (1 and 2) 30 HDMI IN Connector Connect to an HDMI source. 31 HDMI OUT Connector Connect to an HDMI acceptor. KDS-17EN / KDS-17DEC – Contents...
  • Page 10 • Reliable earthing of rack-mounted equipment should be maintained. • Maximum mounting height for the device is 2 meters. Mount KDS-17EN / KDS-17DEC in a rack: • Use the recommended rack adapter (see www.kramerav.com/product/KDS-17EN). 1. Unfasten the knobs to remove the open panel.
  • Page 11 Attach the rubber feet and place the unit on a flat surface. • Fasten a bracket (included) on each side of the unit and attach it to a flat surface. For more information go to www.kramerav.com/downloads/KDS-17EN http://www.kramerav.com/downloads/KDS-17DEC KDS-17EN / KDS-17DEC – Contents...
  • Page 12 Always switch off the power to a device before connecting it to your KDS-17EN or KDS-17DEC. After connecting your devices, connect their power and then switch on the power to each device. KDS-17EN / KDS-17DEC – Contents...
  • Page 13 Figure 3: Connecting the KDS-17EN to a KDS-17DEC To connect KDS-17EN as illustrated in the example in Figure 1. Connect an HDMI source (for example, a server or a media player) to the HDMI IN connector on the KDS-17EN. 2. Connect a balanced stereo audio source (for example, the server audio connector) to the AUDIO IN/OUT 5-pin terminal block connector on the KDS-17EN.
  • Page 14 (for example, an audio amplifier). 6. Connect the USB ports: ▪ On KDS-17EN, connect a laptop or media center to the USB HOST port ▪ On KDS-17DEC, connect a mouse and a keyboard to the two USB type A ports 7.
  • Page 15 Avoid placing optical devices in the emitted beam that could cause the concentration of the laser radiation to be increased. To achieve specified extension distances, use the recommended Kramer cables available at http://www.kramerav.com/product/kds-17en or http://www.kramerav.com/product/kds-17dec. Using third-party cables may cause damage!
  • Page 16 Pin 2 to the TX pin on the KDS-17 RS-232 terminal block • Pin 3 to the RX pin on the KDS-17 RS-232 terminal block • Pin 5 to the G pin on the KDS-17 RS-232 terminal block KDS-17EN / KDS-17DEC – Contents...
  • Page 17 The Main Menu has 3 sub-menus (listed below): ▪ An asterisk (*) indicates the active option. ▪ Changes are made in MAIN MENU > DEV SETTINGS. Press Enter on an option to make it active. KDS-17EN / KDS-17DEC – Contents...
  • Page 18 *Selectable resolutions for the KDS-17DEC: 3840X2160P60 1920X1200 1360X768 3840X2160P50 1920X1080P60 1280X1024 3840X2160P30 1920X1080P50 1280X768 3840X2160P25 1680X1050 1280X720P60 Not available on devices provisioned by the AVoIP Manager. KDS-17EN / KDS-17DEC – Contents...
  • Page 19 4. A cursor will flash under the first digit of the channel number. Use the up/down arrow keys to change the digit and the right arrow to move to the next digit. Press Enter to save your selection. 5. The channel ID must be the same on both devices. KDS-17EN / KDS-17DEC – Contents...
  • Page 20 (on a computer) connected to the same network as the device. 2. If you don’t know the device’s IP address, see Allocating an IP Address to the Device on page 19. 3. If security is enabled, enter the Password (default admin). Figure 8: Login Window KDS-17EN / KDS-17DEC – Contents...
  • Page 21 4. Highlight either Internet Protocol Version 6 (TCP/IPv6) or Internet Protocol Version 4 (TCP/IPv4) depending on the requirements of your IT system. 5. Click Properties. The Internet Protocol Properties window relevant to your IT system appears as shown in Figure 10 Figure KDS-17EN / KDS-17DEC – Contents...
  • Page 22 6. Select Use the following IP Address for static IP addressing and fill in the details as shown in Figure For TCP/IPv4 you can use any IP address in the range 192.168.1.1 to 192.168.1.255 (excluding 192.168.1.39 and 192.168.1.40) that is provided by your IT department. KDS-17EN / KDS-17DEC – Contents...
  • Page 23 (they must both be connected to the same network) or connect them directly to one another using a cable with RJ-45 connectors. 7.2.6 Configuring the Ethernet Port You can set the Ethernet parameters via the embedded web pages (requires a network hub or switch connection). KDS-17EN / KDS-17DEC – Contents...
  • Page 24 Accessing the Embedded Web Pages on page 20. To Browse the KDS-17EN Web Pages 1. Open your Internet browser. 2. Type the IP number of the device in the Address bar of your browser. For example, the default IP number: The Login window appears.
  • Page 25 4. Click the green check to confirm any changes. 8.2.2 To preview the AV Stream In the Dashboard pane, activate AV Streaming Preview. The AV Streaming Preview aspect ratio, FPS and bandwidth can be changed in AV Settings > Video (see Preview). KDS-17EN / KDS-17DEC – Contents...
  • Page 26 Figure 16: Dashboard: Audio Routing Options OUTPUTS – Audio Destination • HDMI – The audio loops out of the HDMI OUT port of the KDS-17EN. • AV Streaming - The audio is streamed to the network through the KDS-17EN LAN output.
  • Page 27 • Dante - A Dante/AES67 stream is input from the network via Dante Control. KDS-17EN must be set as a subscriber of this stream in the Dante software. For more information on inputting Dante audio, see Defining Dante or AES67 as Audio Source or Destination on page 77.
  • Page 28  Mute – Set whether the HDMI and Stream output includes sound.  Force RGB on Output – Force video output to separate red, green and blue colors. Required by some monitors. Off by default. KDS-17EN / KDS-17DEC – Contents...
  • Page 29 Width – 1 to 1280 (default 480).  Height – 1 to 720 (default 270).  FPS- 1 to 60 (default 4).  Bandwidth in kbps – 1 to 50,000 (default 2000). 3. Click SAVE. KDS-17EN / KDS-17DEC – Contents...
  • Page 30 Analog Audio Direction IN/OUT - Select IN (default) or OUT. Analog audio uses the encoder’s 5-pin terminal block connector (14 in Defining KDS-17EN on page 6). It can only be in one direction (in or out), which must be specified. Click SAVE after changing settings. KDS-17EN / KDS-17DEC – Contents...
  • Page 31 HDMI Out port of the selected decoder will be returned to the device. Click the download icon to store it on your computer. Default – A default EDID is supplied with the KDS-17EN. ▪ ▪...
  • Page 32 Device pane has three tabs: • General – Set the KDS-17EN device (host) name, update firmware, restart or reset KDS-17EN. You can also export or input KDS-17EN settings. • Network – Set the LAN 1 and LAN 2 parameters for the device.
  • Page 33 VLAN Tag – VLAN (virtual local area network) tags (range 2 – 4000) are used to separate the network into smaller virtual networks. Requires 802.1Q to be set to On. If Ethernet Bridge Mode is enabled, none of the streams can use its VLAN ID. KDS-17EN / KDS-17DEC – Contents...
  • Page 34 Defining Dante or AES67 as Audio Source or Destination on page 1. To export Dante audio from the encoder, you must first go to the KDS-17EN Dashboard pane and set at least one of the Device Audio Routing INPUTS to Dante.
  • Page 35 5. Click the green arrows to check that the server is available. 6. Click SAVE. The devices date and time are synchronized to the server address entered. Figure 23: Device Settings – Time & Date KDS-17EN / KDS-17DEC – Contents...
  • Page 36 Move the slider to enable/disable security. When security is enabled, access to the web pages requires entry of a password. Changes to the security status require entry of the device’s current password (default: “admin”). Figure 25: Security pane – pop-up KDS-17EN / KDS-17DEC – Contents...
  • Page 37 Server Certificate – Upload an authentication certificate from the server (assigned by your network administrator). Click to upload the certificate. Enter the private key password. Figure 27: Security Tab – Server Certificate 4. Click SAVE. HTTPS is configured. KDS-17EN / KDS-17DEC – Contents...
  • Page 38 Grey – 802.1X is disabled. 4. Check one of the following settings: ▪ EAP-MSCHAP V2 – To use this authentication method, enter the KDS-17EN username and password. ▪ EAP-TLS – Submit a certificate from your network authentication server: Enter the KDS-17EN Username (“admin”) and click...
  • Page 39 Default uses 14 rounds of processing to create a device defined 256-bit key. • Customized requires you to enter a 32-byte hexadecimal string (64 characters using only the characters 0 – 9 and A to F). No hex code identifier is required before the string. KDS-17EN / KDS-17DEC – Contents...
  • Page 40 , to see the address of the CEC device attached to the HDMI port. 6. Enter the CEC command in hexadecimal format. 7. Click SEND. 8. View the CEC-enabled device response in the CEC Notifications field. KDS-17EN / KDS-17DEC – Contents...
  • Page 41 RS-232 tab KDS-17EN can receive RS-232 commands over LAN, that were sent to a connected decoder’s RS-232 port. These commands can be used to remotely control KDS-17EN. To set RS-232 Gateway: 1. In the Gateway pane, click the RS-232 tab.
  • Page 42 IN – Configure the IR port as an input port that is connected to an IR receiver cable. ▪ OUT – Configure the IR port as an output port that is connected to an IR emitter cable. 3. Click Save. IR Gateway is configured. KDS-17EN / KDS-17DEC – Contents...
  • Page 43 Overheat, for temperatures above 60°C. 4. View the status of the outputs: ▪ HDMI OUT - On, the output channel is transmitting an active signal. ▪ LAN – On, a signal is being transmitted. Device status is viewed. KDS-17EN / KDS-17DEC – Contents...
  • Page 44 8.8.2 Connection tab View the network devices connected to KDS-17EN. To view Connections status: 1. In the Diagnostics pane, click Connection. 2. Select the Connections tab. Figure 34: Diagnostics – Connection Tab 3. UCP devices that end the connection will be displayed for 10 minutes after the connection ends.
  • Page 45 About View the device model, hardware release, firmware version and Kramer Electronics Ltd details. Figure 35: About Page KDS-17EN / KDS-17DEC – Contents...
  • Page 46 Upgrade the firmware, view the date of the last upgrade, or rollback to the previous firmware revision in case of a problem. If the device firmware version is lower than 0.6.3, contact Kramer tech support team at or go to our Web site at support@kramerav.com...
  • Page 47 3. If required, enter the login password (“admin”, by default); The KDS-17DEC Dashboard opens. Figure 38: Embedded Web Page with Navigation List on Left 4. Click the tabs on the left side of the screen to access the relevant web page. KDS-17EN / KDS-17DEC – Contents...
  • Page 48 Audio Sample Rate – Input audio signal’s sample frequency (number of samples per second). • Audio Format – LPCM is uncompressed, other types of digital format are usually compressed. 5. Click the green check to confirm your changes (greyed out if no change is made). KDS-17EN / KDS-17DEC – Contents...
  • Page 49 Values are in %, maximum output is 12dB. The volume slider only affects the (analog) AUDIO OUT 5-pin Terminal Block Connector (11 in Defining KDS-17DEC on page 8). Mute affects HDMI Out and Analog out. Figure 41: Dashboard: Audio output options (Dante is also for AES67) KDS-17EN / KDS-17DEC – Contents...
  • Page 50 KVM / USB tab – External Keyboard, Video and Monitor. Video Wall tab – Grid Video Wall / Mosaic Video Wall. Overlay tab – Overlay an image, text or KVM. Figure 42: AV Settings > Video (image compressed for visibility) KDS-17EN / KDS-17DEC – Contents...
  • Page 51 Figure 44: AV Settings > Video – HDMI Output 3. OSD & Overlay Transparency (%)  Use the slider to set the transparency of the OSD & Overlay texts, KVM Overlay and Overlay image. Default setting: 50% KDS-17EN / KDS-17DEC – Contents...
  • Page 52 (locally) or from the stream (remotely from the encoder). Options: Manual – Only output video to the current active output connection.   Last Connected – Only output video to the last used output connection. KDS-17EN / KDS-17DEC – Contents...
  • Page 53 Priority - Dynamically switch according to the defined priority (manually drag the sources to set the priority). If no video or stream input is detected on the top priority, the system will switch to the next priority. Figure 48: Video output switching mode 9. Click SAVE. KDS-17EN / KDS-17DEC – Contents...
  • Page 54 OSD Keyboard Button Functions (for information only, not controllable): • Caps Lock: Double tap to open the OSD menu. • Up/Down (or PgUp/PgDn): Move up/down to the next option. • Input any word in the Filter textbox: Access to the desired option quickly. KDS-17EN / KDS-17DEC – Contents...
  • Page 55 Type a menu feature next to Filter (in the OSD) to access a function quickly. ▪ Press Enter to accept a selection and exit the OSD menu. ▪ Pres Esc to exit the menu. OSD menu is accessed. KDS-17EN / KDS-17DEC – Contents...
  • Page 56 Figure 52: KVM Roaming Layout Figure 53: AV Settings – KVM / USB ▪ Optimized for KVM – Enable KVM use and settings. Off allows the USB to be used KDS-17EN / KDS-17DEC – Contents...
  • Page 57 (KDS-17EN) Dashboard, set a unique Channel ID (in the Dashboard) and a unique Device Name in Device Settings > General. Figure 54: KDS-17EN Setting Channel ID 3. In each decoder (KDS-17DEC) Dashboard, pair the decoder to an encoder. For example, pair...
  • Page 58 7. Check the physical location of the Master decoder (lower left size in this example). The MAC address is automatically entered. 8. Manually enter the other (slave) decoder MAC addresses according to the physical setup. 9. Click Save. KVM Roaming is configured. KDS-17EN / KDS-17DEC – Contents...
  • Page 59 Crop to Fill makes no change to the aspect ratio and may leave areas of video outside the screen. ▪ Picture Rotation – Rotate or flip the video output image. Figure 58: AV Settings – Video Wall (fields moved closer together for visibility) KDS-17EN / KDS-17DEC – Contents...
  • Page 60 Separate values can be entered for the top, bottom left side and right side. Accuracy is to 0.01 mm. Video Wall Test – Enable to output a test image to the array of displays. Click Save after making changes! KDS-17EN / KDS-17DEC – Contents...
  • Page 61 Size - Small, medium or large. ▪ Align – Set the image position on the screen. ▪ Text Color – Click the square to select a different text color. Figure 60: Av Settings - Overlay KDS-17EN / KDS-17DEC – Contents...
  • Page 62 (confirmation is requested). • Find Me – The LEDs will flash fast for 60 seconds to identify the decoder. When an HDMI OUT screen is connected, the screen shows the device’s IP. • Device Configuration – KDS-17EN / KDS-17DEC – Contents...
  • Page 63 802.1Q – If set to On (off by default), the data transmission uses VLAN tags. o VLAN Tag – VLAN (virtual local area network) tags (range 2 – 4000) are used to separate the network into smaller virtual networks. Requires 802.1Q to be set to KDS-17EN / KDS-17DEC – Contents...
  • Page 64 In the IP Address Settings, set the Dante row’s Port column to LAN 2 and set 802.1Q to On. In the VLAN ID column, enter an integer number (2 - 4000) for Dante services. Make sure this is different from the number used for the Control packets. KDS-17EN / KDS-17DEC – Contents...
  • Page 65 3. Set Use Time Server (NTP), to On. 4. Enter the Time Server Address IP. 5. Click SAVE. The devices date and time are synchronized to the server address entered. Figure 63: Device Settings pane – Time & Date tab KDS-17EN / KDS-17DEC – Contents...
  • Page 66 Current Password and then click Change. The new password must include a number, a special character and upper and lower-case both letters (no commas or spaces). Figure 66: Security pane – Change password KDS-17EN / KDS-17DEC – Contents...
  • Page 67 Server Certificate – Submit a certificate from the server for authentication (assigned by your network administrator). Click to upload the certificate. Enter the private key password. Figure 67: Security Tab – Server Certificate 4. Click SAVE. HTTPS is configured. KDS-17EN / KDS-17DEC – Contents...
  • Page 68 5. Server Certificate – (optional) Use a CA (certification authority) issued certificate to authenticate the RADIUS server. Enable and click to upload the CA certificate. Figure 68: EAP-TLS – Certificates and Password 6. Repeat for LAN 2 if necessary. 7. Click SAVE: 802.1X is configured. KDS-17EN / KDS-17DEC – Contents...
  • Page 69 Default uses 14 rounds of processing to create a device defined 256-bit key. • Customized requires you to enter a 32-byte hexadecimal string (64 characters using only the characters 0 – 9 and A to F). No hex code identifier is required before the string. KDS-17EN / KDS-17DEC – Contents...
  • Page 70 , to see the address of the CEC device that is attached to the HDMI port. 5. Enter the CEC command in hexadecimal format. 6. Click SEND. 7. View the CEC-enabled device response in the CEC Notifications field. CEC Gateway is configured. KDS-17EN / KDS-17DEC – Contents...
  • Page 71 5. Enter the Baud Rate: 1200 to 115200 (default). 6. Enter the Data Bits: 5, 6, 7 or 8 (default). 7. Enter Parity: None (default), Odd or Even. 8. Enter Stop Bits: 1 (default) or 2. 8. Click SAVE. RS-232 Gateway is configured. KDS-17EN / KDS-17DEC – Contents...
  • Page 72 IN – Configure the IR port as an input port that is connected to an IR receiver cable. ▪ ▪ OUT – Configure the IR port as an output port that is connected to an IR emitter cable. IR Gateway is configured. KDS-17EN / KDS-17DEC – Contents...
  • Page 73 High, for temperatures between 45°C and 60°C. ▪ Overheat, for temperatures higher than 60°C. 4. View the status of the outputs: ▪ HDMI OUT - On, the output channel is transmitting an active signal. Device status is viewed. KDS-17EN / KDS-17DEC – Contents...
  • Page 74 1. In the Diagnostics pane, click Connection. 2. Select the Connections tab. Figure 74: Diagnostics – Connection Tab 3. UCP devices that end the connection will be displayed for 10 minutes after the connection ends. Connections’ status is viewed. KDS-17EN / KDS-17DEC – Contents...
  • Page 75 About View the device model, hardware release, firmware version and Kramer Electronics Ltd details. Figure 75: About Page KDS-17EN / KDS-17DEC – Contents...
  • Page 76 Upgrade the firmware, view the date of the last upgrade, or rollback to the previous firmware revision in case of a problem. If the device firmware version is lower than 0.6.3, contact Kramer tech support team at or go to our Web site at support@kramerav.com...
  • Page 77 10.1 Defining Dante input to the KDS-17EN encoder KDS-17EN can import a Dante audio stream and output it to the decoder. 1. In the KDS-17EN webpages, open the KDS-17EN Dashboard pane. 2. In the Device Audio Routing field group, set the relevant INPUTS to Dante...
  • Page 78 To create a multicast flow: a. Open the Device Info tab. b. Double click the KDS-17EN/KDS-17DEC device to open the Device View screen. Figure 77: Dante Controller screen (section) c. If using AES67, click the AES67 Config tab and enable AES67 Mode; You will be prompted to reboot (restart) Dante Controller (repeat steps a and b after restarting).
  • Page 79 Figure 81: Device View screen – RTP Multicast Flow in the Transmit tab g. Use the Dante Controller software to route the audio between the encoder/decoder and the Dante source or destination. Dante has been defined. KDS-17EN / KDS-17DEC – Contents...
  • Page 80 Shipping Dimensions (W, D, H) 31.2cm x 17.9cm x 7.6cm (12.28" x 7.05" x 2.99") Weight Net Weight 0.7kg (1.54lbs) approx. Shipping Weight 0.9kg (2lbs) approx. Specifications are subject to change without notice at www.kramerav.com KDS-17EN / KDS-17DEC – Contents...
  • Page 81 Shipping Dimensions (W, D, H) 31.2cm x 17.9cm x 7.6cm (12.28" x 7.05" x 2.99") Weight Net Weight 0.7kg (1.54lbs) approx. Shipping Weight 0.9kg (2lbs) approx. Specifications are subject to change without notice at www.kramerav.com KDS-17EN / KDS-17DEC – Contents...
  • Page 82 50000 Default username: admin admin Default password: admin admin Full Factory Reset Embedded web pages Device Settings > General > RESET Front panel buttons Press the RESET button on the rear panel for 10 seconds KDS-17EN / KDS-17DEC – Contents...
  • Page 83 Protocol 3000 Kramer devices can be operated using Kramer Protocol 3000 commands sent via serial or Ethernet ports. 12.1 Understanding Protocol 3000 Protocol 3000 commands are a sequence of ASCII letters, structured according to the following. • Command format: Constant (Space)
  • Page 84 Range Default 5 - 90 0 - 90 5 - 90 0 - 90 4 (KDS-17EN-SW2) 5 - 60000 900 4 (KDS-17DEC) 0 - 90 0 - 90 0 - 90 0 - 90 action – video / audio switching actions AV-SW-TIMEOUT? Get auto switching timeout.
  • Page 85 Set the output HDCP of OUT 1 KDS-17EN-SW2 in_index,mode<CR> in_index,mode<CR><LF> 1-N (N= the total number of inputs) to follow input: mode – HDCP mode: KDS-17DEC #HDCP-OUT 1,0<CR> 0 – HDCP follow input KDS-17DEC-WP 1 – HDCP follow output (Default) KDS-17EN / KDS-17DEC – Contents...
  • Page 86 – Action (state) for encoder/decoder KDS-ACTION? Get last action (state) #KDS- ~nn@KDS-ACTION Get the last action performed 0 – Stop performed by ACTION?<CR> kds_mode<CR><LF> by the encoder/decoder: 1 – Play encoder/decoder. #KDS-ACTION?<CR> 2 – Save config KDS-17EN / KDS-17DEC – Contents...
  • Page 87 1~50000 Kbps 0 - Do not need keep ratio 1 - Keep ratio mq: 60~100 value – Streamer Decoder Aspect Ratio KDS-RATIO? Get aspect ratio. #KDS-RATIO?<CR> ~nn@KDS-RATIO Get Aspect Ratio width:height, for example “16:9” value<CR><LF> #KDS-RATIO?<CR> KDS-17EN / KDS-17DEC – Contents...
  • Page 88 1051 = 1856x1392p@75Hz 1052 = 1920x1200p@50Hz 1053 = (Reserved) 1054 = 1920x1200p@75Hz 1055 = 1920x1200p@85Hz 1056 = 1920x1440p@60Hz 1057 = 1920x1440p@75Hz 1058 = (Reserved) 1059 = 2048x1152p@60Hz 1060 = 2560x1600p@60Hz 1061 = 2560x1600p@75Hz 1062 = 2560x1600p@80Hz KDS-17EN / KDS-17DEC – Contents...
  • Page 89 – Log server port mode – On/Off LOG-SRV? Get log server. #LOG-SRV?<CR> ~nn@LOG-SRV Get log server: 0 – Off mode,log_server_ip,log_ser #LOG-SRV?<CR> 1 – On ver_port<CR><LF> log_server_ip – Log server IP address log_server_port – Log server port KDS-17EN / KDS-17DEC – Contents...
  • Page 90 1 – Stream _id,cos<CR> s<CR><LF> #NET-SRV-802-1Q 0,1,10,6 2 – Dante 3 - USB Ethernet (Only avalible for KDS-17EN-WP) Set Stream service 802.1Q Off mode – enable 802.1Q #NET-SRV-802-1Q 0,0 0 – off (When mode is Off, vlan_id and cos will be ignored) 1 –...
  • Page 91 1 – Try to use DHCP. (If unavailable, use the IP address set compatibility, the id parameter can be omitted. In this case, by the factory or the net-ip command). the Network ID, by default, is 0, which is the Ethernet control port. KDS-17EN / KDS-17DEC – Contents...
  • Page 92 NOTE: To avoid locking the port due to a USB bug in Windows, disconnect USB connections immediately after running this command. If the port was locked, disconnect and reconnect the cable to reopen the port. KDS-17EN / KDS-17DEC – Contents...
  • Page 93 1 – 90 degrees 2 – 180 degrees NOTE: MUST setup with 3 – 270 degrees "#VIEW-MOD 15" or "#VIEW- MOD 16" to video wall mode 4 - vertical flip firstly 5 - horizontal flip KDS-17EN / KDS-17DEC – Contents...
  • Page 94 HDMI ANALOG_AUDIO STREAM DANTE USB_C – Only available on KDS-17EN-WP <port_index> – The port number as printed on the front or rear panel <signal_type> – Signal ID attribute: AUDIO <index> – Indicates a specific channel number when there are multiple ch_tot –...
  • Page 95 ERR_RESERVED_8 (Reserved) ERR_RESERVED_9 (Reserved) ERR_RESERVED_10 (Reserved) ERR_RESERVED_11 (Reserved) ERR_RESERVED_12 (Reserved) ERR_EDID_CORRUPTED EDID corrupted ERR_NON_LISTED Device specific errors File has the same CRC – not changed ERR_SAME_CRC ERR_WRONG_MODE Wrong operation mode ERR_NOT_CONFIGURED Device/chip was not initialized KDS-17EN / KDS-17DEC – Contents...
  • Page 96 If this product is returned uninsured, you assume all risks of loss or damage during shipment. Kramer Electronics will not be responsible for any costs related to the removal or re-installation of this product from or into any installation.
  • Page 97 This limited warranty gives you specific legal rights, and you may have other rights which vary from country to country or state to state. This limited warranty is void if (i) the label bearing the serial number of this product has been removed or defaced, (ii) the product is not distributed by Kramer Electronics or (iii) this product is not purchased from an authorized Kramer Electronics reseller.
  • Page 98 SAFETY WARNING Disconnect the unit from the power supply before opening and servicing For the latest information on our products and a list of Kramer distributors, visit our website where updates to this user manual may be found. We welcome your questions, comments, and feedback.
