B.E.G. LUXOMAT PD4-M-3C-TRIO-SM Installation And Operating Instruction

LUXOMAT
Installation and Operating Instruction for B.E.G. -Occupancy detectors PD4-M-3C-TRIO-SM/-FC
1. Mounting preparations
Work on the 230 V mains supply
may only be carried out by quali-
fied professionals or by instructed
persons under the direction and
supervision of qualified skilled elec-
trical personnel in accordance with
electrotechnical regulations.
Disconnect supply before installing!
When in Master/ Slave mode of
operation, the Master-appliance
must always be installed at the
location where there is least
daylight.
4. Putting into operation of
the remote control IR-PD4-
TRIO SWI (optional)
Check Battery:
Open battery com-
partment by pressing
the plastic springs
together and remov-
ing the battery-holder.
Caution: Settings with remote control su-
persede the settings by potentiometers.
5. Light measuring
In order to calculate a switching
threshold, there is a five-minute light
measurement. For his the detector
switches off all channels and turns
them on for five minutes afterward.
This measurement is made if:
• a new brightness value is changed
with the poti
• a new nominal value is set by use of
the remote control (finish setting up
with CLOSE switch)
The measurement is not done during
the activated test function.
Unlocking the device interrupts the
light measuring.
Option:
Part nr.: 92102
Wall bracket for remote
control IR-PD4-TRIO SWI
®
2a. Installation of the LUXOMAT
PD4-M-3C-TRIO-SM
close
C
open
The detector must be in stalled on a solid and
level surface. The circular cover ring must be
removed prior to assembly. To do this, twist the
lens (C) anticlockwise by approximately 5° and
lift off.
Having connected up the wires in accordance with
regulations, secure the detector with 2 screws.
After installation replace the lens and lock (turn
clockwise). Mains to be connected.
6. Putting into operation / Settings
Self test cycle
After an initial 60-second self-test cycle, the LUXOMAT
is ready for operation.
Follow-up time for light control 3 (see point 7)
45
60
30
The time can be set infinitely variably at between
15 1 and 60 minutes. The time-setting is valid for all 3 channels
TEST
5
1
of the PD4-M-3C-TRIO.
Symbol TEST: Test mode
Every movement switches on the light for a period of 2
seconds, switching it off for a period of 2 seconds after that
regardless of the level of brightness.
Twilight-switch for light control (Channel 1) - potentiometer
1200
1 (see point 7)
600
The switch-on value for the light can be set at between 40
200
40
and 1200 Lux. Using the rotary control, the luminance set
points can be set as desired.
Symbol : Night operation
Symbol : Day/ Night operation
Twilight-switch for light control (Channel 2) - potentiometer
1200
3 (see point 7)
600
Settings identically equal to channel 1
200
40
8. Settings by remote control (Settings relay channel 1, 2, 3)
CH
CH CH
or
1 3
2
to
100 1000
+
�� ��
5 to 90
��� ���
Reset when
or
HA VA
open: Deletes
all values set
with the remote
control; the
settings on the
potentiometer
apply
CH1/2 or CH3
ON/OFF ON/OFF
PD4-M-3C-TRIO

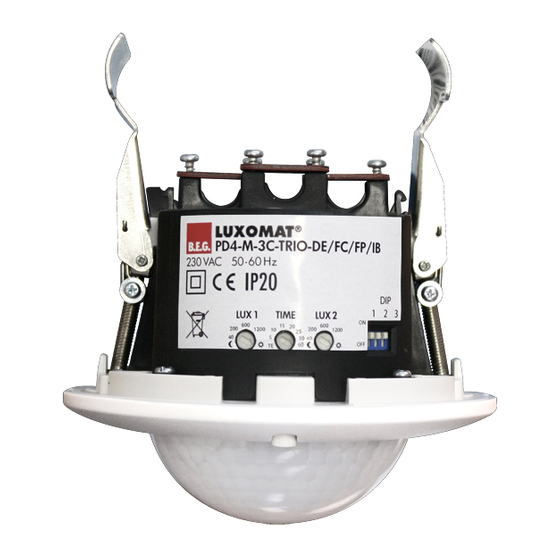

® 2b. Installation of the LUXOMAT
PD4-M-3C-TRIO-FC
100 mm
PD4-M-3C-TRIO
®
Unlocking device
Automatic reading of the
current light level
Choosing channel
Twilight threshold for the selected
channel 100 - 1000 Lux
Step function
Follow-up time light for the
selected channel
LED display ON/OFF
Fully /semi automatic mode for
the selected channel
Lock device
Test function
Channel ON/OFF
Permanent protection
against sabotage
® 3. Hardware configuration
Position of light sensors and LEDs
4 5 1 A
A circular opening
of diameter 100 mm
must be produced in
the ceiling.
Having connected
up the cables in
accor dance with
regulations, the
detector is inserted
B
into the opening as
A/B Light sensor 1 / light sensor 2
shown and fixed
1 LED red OFF function
into position with
2 LED green too light/too dark CDS 1
the retaining bracket
3 LED white semi-automatic switching channel 1
using screws.
4 LED white semi-automatic switching channel 2
5 LED green too light/too dark CDS 2
6 LED red motion indicator/walking test
7. Position of potentiometer and DIP switch
C BA Surface mounted
1
3
2
A DIP 1 HA / A
B DIP 2 Ini OFF/ON
Lamps at start-up OFF/ON
C DIP 3 RESET
9. Explanation of the key functions
Unlocking
If device is unlocked, setting can be done for all channels.
Directly after unlocking, channel 1 is always chosen at first
Automatic reading of the actual light level channel 1+2
• Switching threshold, if light OFF
• Shutdown threshold, if light ON
Step function: increase the current light level by 20 Lux
+
Resetting when open
The potentiometers are released for settings
Semi automatic for the selected channel
HA
(Switching channel 1+2 can be activated only together)
Fully automatic for the selected channel
VA
(Switching channel 1+2 can be activated only together)
Lock device
5 sec. after locking, device can be locked twice
(protection against sabotage)
Test function
Activation of the test function, Reset for deactivation
Resetting when locked
Reset - determine of all timers, switching off the channels
Permanent protection against sabotage
This function blocks the PD4-M-3C-TRIO permanently (all LED's
are flashing). Proceed to exit this mode: reset the hardware
using DIP switch 3.
Channel ON/OFF
CH1/2
ON/OFF
Switch ON or OFF channel 1+2 or channel 3
CH3
ON/OFF
GB
80 - 90 mm
3 2 6
6
5
4
A B
3
2
1
DIP
321 1 2 3
False ceiling mounted
