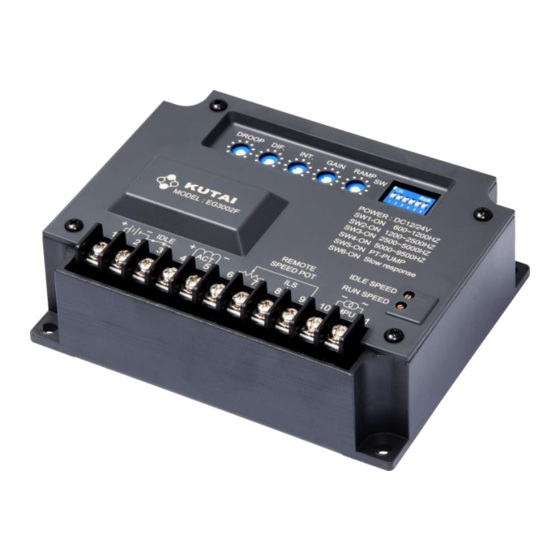

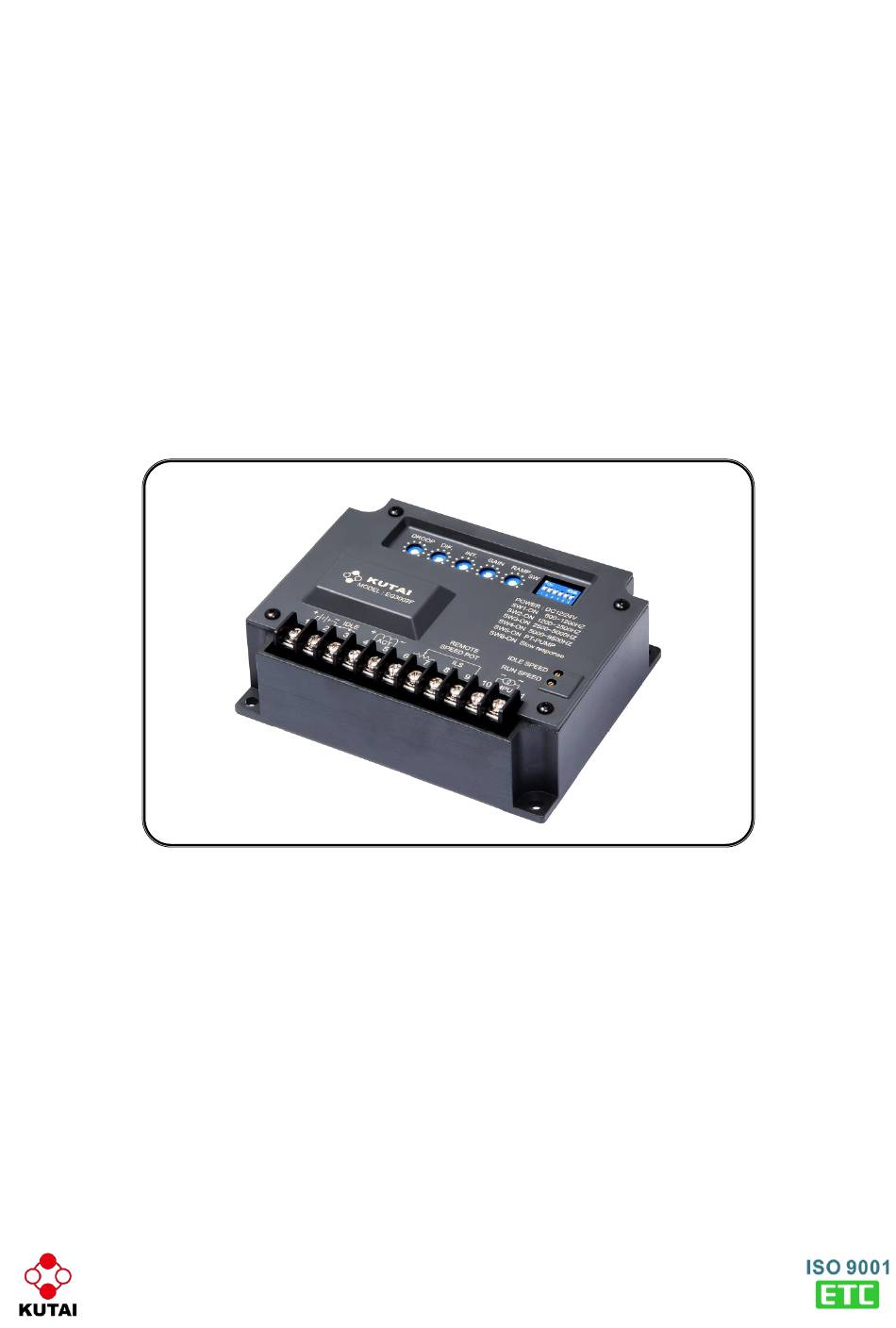

EG3002F
Electronic Engine Governor Controller
Manual
User
Engine Start Smoke Limiting function & IDLE Speed Setting
For External, Built-in and PT-Pump type actuators
Newly added "extreme slow response" engine setting
* All manufacturer names and numbers are used for reference purpose only
and do not imply that any part is the product of these manufacturer.
KUTAI ELECTRONICS INDUSTRY CO., LTD.
TEL : +886-7-8121771
FAX : +886-7-8121775
Website : www.kutai.com.tw
Headquarters : No.3, Ln. 201, Qianfu St., Qianzhen Dist., Kaohsiung City 806037, Taiwan

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EG3002F and is the answer not in the manual?

Questions and answers

Related Manuals for Kutai electronics EG3002F

Summary of Contents for Kutai electronics EG3002F

  • Page 1 Newly added “extreme slow response” engine setting * All manufacturer names and numbers are used for reference purpose only and do not imply that any part is the product of these manufacturer. KUTAI ELECTRONICS INDUSTRY CO., LTD. TEL : +886-7-8121771 FAX : +886-7-8121775 Website : www.kutai.com.tw...

  • Page 2: Section 1 : Summary

    SECTION 1 : SUMMARY The EG3002F electronic controller takes a signal from a magnetic pickup (MPU) and compares it with a preset engine speed to control drive voltage to the actuator to maintain constant engine speed. The EG3002F has engine start smoke suppression, IDLE Speed control, Ramp Time setting, applicable for MPU frequency range of 600 to 9500 Hz.

  • Page 3: Section 4 : Potentiometer Adjustments And Dip Switch Functions

    600~1200HZ SW2-ON 1200~2500HZ Setting SW3-ON 2500~5000HZ When Terminals 2 & 3 SW4-ON 5000~9500HZ SW5-ON PT-PUMP shorted, use this pot to EG3002 EG3002F SW6-ON Slow response adjust IDLE speed. IDLE SPEED REMOTE RUN SPEED ： Operating SPEED POT RUN SPEED IDLE Speed Setting 1、2：Battery Input...

  • Page 4: Section 5 : Wiring Connections

    SECTION 5 : WIRING CONNECTIONS DROOP DIF. INT. GAIN RAMP POWER : DC12/24V SW1-ON 600~1200HZ SW2-ON 1200~2500HZ SW3-ON 2500~5000HZ SW4-ON 5000~9500HZ SW5-ON PT-PUMP EG3002F EG3002 SW6-ON Slow response IDLE SPEED REMOTE SPEED POT RUN SPEED IDLE Cable A Idle switch Magnetic Pickup...

  • Page 5: Section 6 : Adjustment

    If an external VR is used then adjust to a middle appropriate. position. 6.3.5 Stop the engine then start again. If the engine will Open the IDLE switch between terminals 2 & 3. not start then adjust the IDLE Speed clockwise to increase the IDLE setting. ___________________________________________________________________________________________ EG3002F...
  • Page 6 4 – 8 times per second – DIF setting too high. Remote Speed Pot Adjustment The EG3002F provides two remote speed adjustment methods. One uses a 5 KΩ potentiometer to provide +/- 30% speed adjustment remotely up to 60 meters.

  • Page 7: Section 7 : Trouble Shooting

    If that item is normal then manually toggle the actuator linkage during engine cranking. If the engine still does not start then check whether engine fuel supply is normal (fuel level, fuel valve closed, stop solenoid linkage, etc.) ___________________________________________________________________________________________ EG3002F...
  • Page 8 ※ Appearance and specifications of products are subject to change for improvement without prior notice. ※ NOTE : The shielded cable of the magnetic pick-up (MPU) cannot be spliced or it will allow electromagnetic interference to the controller. ___________________________________________________________________________________________ EG3002F...
