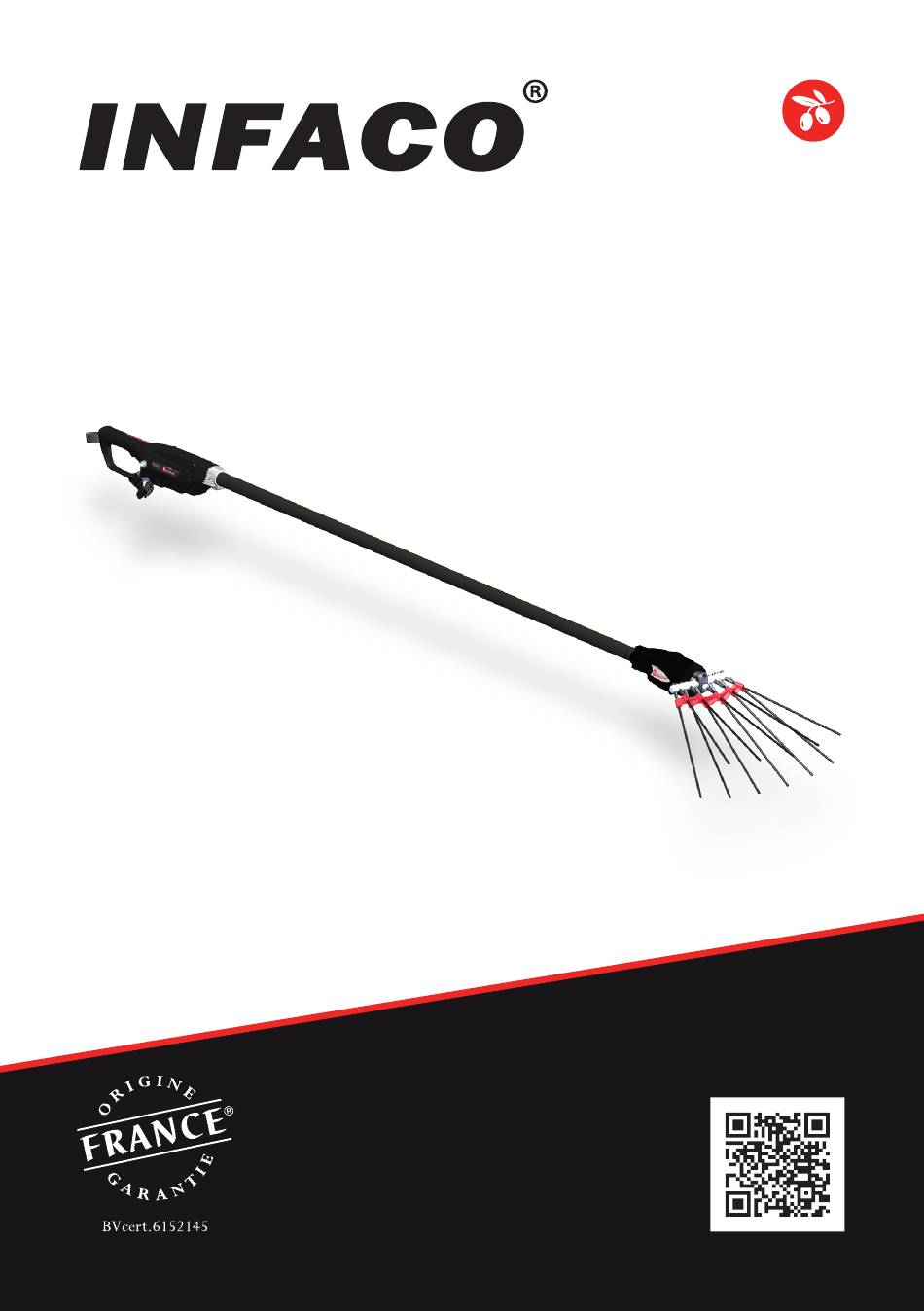

- Page 1 E500012V2 / E500012V2T Olive harvester other languages Original user guide -...
-
Page 3: Table Of Contents
Contents Precautions before use Personal protection equipment Protection of the environment General product view Specifications User guide Adjustment of the telescopic pole Precautions for use and safety Servicing and maintenance Safety instruction Warranty conditions Advice Troubleshooting Technical information Déclaration de conformité CE... -
Page 4: Precautions Before Use
> Power tools must not be disposed of with household refuse. > The device, accessories and packaging must be taken to a recycling centre. > Ask the approved INFACO dealer for up-to-date information on the eco- compatible elimination of waste. -
Page 5: General Product View
Rod assembly tool Comb assembly tool Manual Vibrating head Fixed ou telescopic pole Comb Motorized handle 12V battery connection cable (car) Specifications Reference E500012V2 E500012V2T Rated power supply 12VCC Max power 200W Max Weight 3000g 3250g Length 2,30m 2,30m à 3,30m... -
Page 6: User Guide
VPlease ask your dealer for advice on fitting the comb. Incorrect assembly can cause wear on the comb or rods Ref : E710 The use of the INFACO (E710) screwdriver when tightening is strongly recommended to avoid damaging the tightening tips. - Page 7 Comb assembly:...
- Page 8 Comb attachment Failsafe...
- Page 9 Installation and connection It is essential to carefully read the user manuals for the devices and accessories before connecting them. Using the machine > Connect the power cable > Connect the power cable > Start-up ON/OFF...
-
Page 10: Adjustment Of The Telescopic Pole
Adjustment of the telescopic pole... -
Page 11: Precautions For Use And Safety
Precautions for use and safety The machine is fitted with an electronic board with thermal circuit-breaking. As soon as the head jams because of too strong resistance, the electronic board cuts the power to the motor and the red LED lights. To restart, place the switch in the “OFF” position, then switch it back to “ON”. -
Page 12: Servicing And Maintenance
Servicing and maintenance All servicing and maintenance operations must be carried out with the tool disconnected from all power sources: Adapt the servicing frequencies to your tool use. Occasional use, space out the frequency. Intensive use, increase the frequency. Visual inspection of its condition Complete machine Cleaning Inspection by the dealer... - Page 13 Lubrication Generously lubricate the vibrating head at least once every day, in the morning before star- ting to work. Position the spray nozzle towards the ball and socket. Hold the spray can upright and then press. Grease the vibrating head at least once per day (lubrication without removing any parts).
-
Page 14: Safety Instruction
Safety instruction IMPORTANT. To reduce the risk of electric discharges, injuries and fire when using electric tools, follow the fundamental safety measures indicated below. Read and follow these instructions before using the tool, and keep the safety instructions! Outside operations related to the use of the tool, your tool and its accessories must be disconnected and stored in their relevant packaging. -
Page 15: Warranty Conditions
The warranty cannot entitle to compensation for: The possible immobilisation of the tool during repairs. All work carried out by a person other than approved INFACO agents will cancel the tool warranty. The repair or replacement during the warranty period does not extend or renew the initial warranty. -
Page 16: Advice
Advice Keep your work area tidy. Clutter in work areas increases risks of accidents. Take into account the work zone. Do not expose electric tools to rain. Do not use electric tools in a damp or wet environment. Make sure the work area is properly lit. Do not use electric tools near inflammable liquids or gases. -
Page 17: Troubleshooting
Troubleshooting Disruptions Causes Solutions Refit the comb by following the Incorrect comb assembly procedure and contact the dealer if necessary. Re-tighten the comb by following the Incorrect comb tightening procedure. Significant abnormal Re-tighten the rods by following the Incorrect rod tightening vibrations procedure. - Page 19 To be returned to infaco To validate the warranty, REGISTER IMMEDIATELY ONLINE ON : www.infaco.com, your warranty declaration or send this form filled out IN BLOCK CAPITALS AS SOON AS THE TOOL IS PURCHASED. Name > ............Prénom > ..........
- Page 20 Serial number dealer To be kept by the dealer for the customer file customer file...
-
Page 21: Technical Information
Technical information or customer service INFACO S.A.S. Bois de Roziès 81140 CAHUZAC-SUR VERE France Phone: (+33) 05 63 33 91 49 - Fax: (+33) 05 63 33 95 57 Email: contact@infaco.fr Technical videos available on the website: www.infaco.com... -
Page 22: Déclaration De Conformité Ce
Uncertainty 1,5 m/s • La personne autorisée à constituer le dossier technique au sein d’INFACO est M. ALVAREZ Grégory. The person authorized to compile the technical file within the company INFACO is Mr. Gregory ALVAREZ. Fait à > CAHUZAC SUR VERE LE >... - Page 24 . i n f a c o . c o m EN - User guide - Olive Harvester E500012V2 / E500012V2T NOT_E500012V2-T_EN_07_22...
