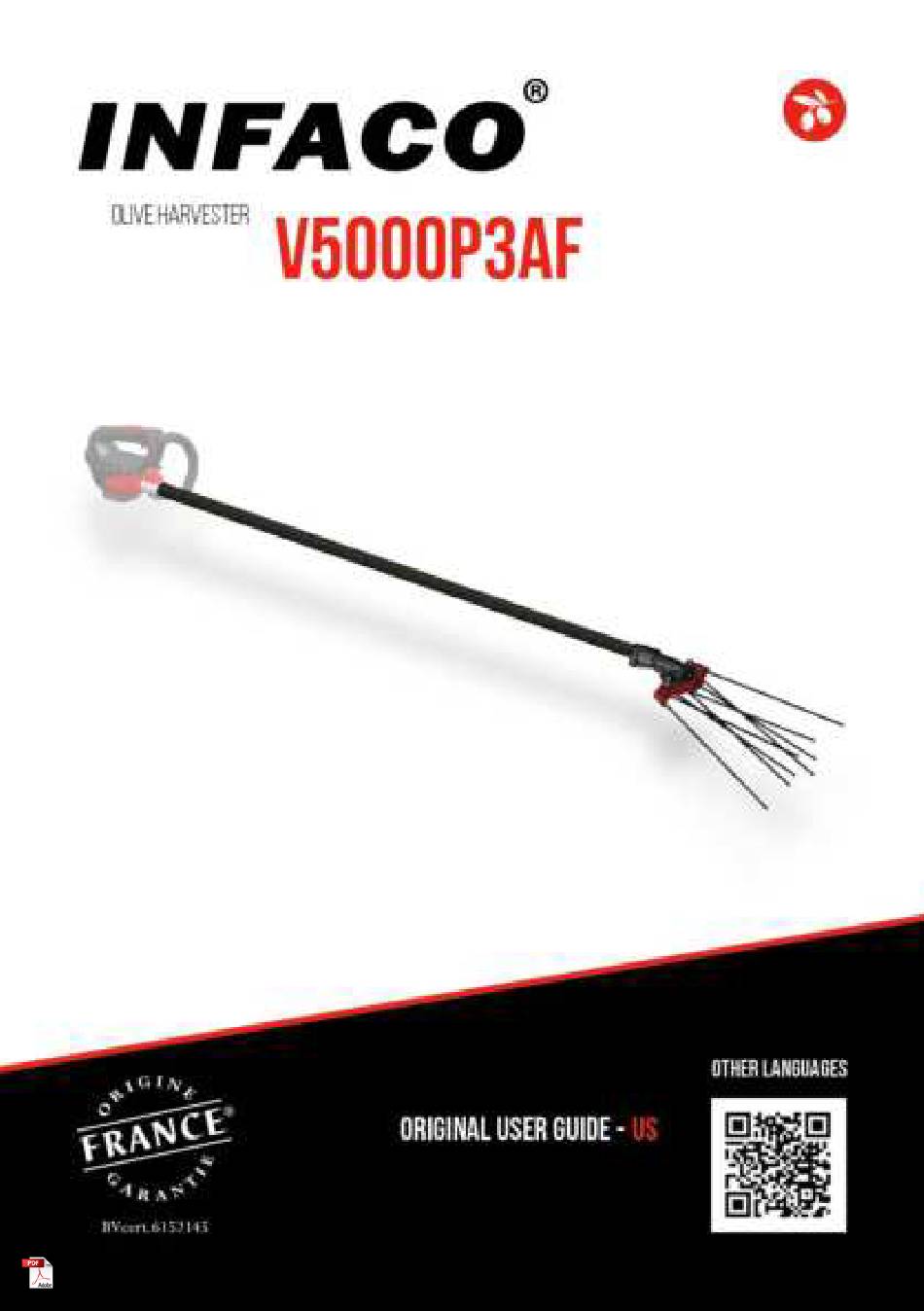

Summary of Contents for infaco V5000P3AF
-
Page 2: Table Of Contents
Contents PW3, a multi-function handle Compatible tools Precautions before use Personal protection equipment Protection of the environment General product view Specifications Compatible batteries User guide Speed adjustment Tool gap adjustment Precautions for use and safety Servicing and maintenance Safety instruction Warranty conditions Advice Troubleshooting... -
Page 3: Pw3, A Multi-Function Handle
EP1700P3 Desuckering tool (telescopic pole 1200mm to 1600mm). EC1700P3 Blossom thinner (telescopic pole 1500mm to 1900mm). V5000p3ef Olive harvester (fixed pole 2500mm). v5000p3et Olive harvester (telescopic pole 2200mm to 2800mm). v5000p3AF Alternative olive harvester (fixed pole 2250mm) V5000P3EF V5000P3ET V5000P3AF... -
Page 4: Precautions Before Use
These specifications are given as an indication only. Under no circumstances may they be considered as contractually binding. They are subject to modification without prior notice in the interests of product > Ask the approved INFACO dealer for up-to-date information on the eco- development. compatible elimination of waste. -
Page 5: Compatible Batteries
Cable compatibility 825S Ref : E710 500Wh battery L810B Cable compatibility PW225S 150Wh battery 731B Cable compatibility PW225S (requires fuse replacement by 539F20). The use of the INFACO (E710) screwdriver when tightening is strongly recommended to avoid damaging the tightening tips. - Page 6 Left comb assembly: Right comb assembly...
- Page 7 Comb assembly: WASHER WASHER Ref : E712 COUNTER FORCE Ref : CLE13 COUNTER FORCE...
- Page 8 > Tighten the wing nut Only use INFACO brand batteries with a 48 Volt power supply. Any use with batteries other than INFACO batteries may lead to damage. The warranty on the motorized handle will be void if batteries other than those manufactured by INFACO are used.
-
Page 9: Speed Adjustment
> Connect the battery > First power up & Exit from standby mode Speed adjustment 2 short presses on the trigger ON 10 speed settings configurable > When powering on > To switch to speed adjustment mode, press the trigger until the machine starts >... -
Page 10: Tool Gap Adjustment
Tool gap adjustment Precautions for use and safety The tool is fitted with an electronic protection system. As soon as the tool jams due to It is imperative to disconnect the machine. excessive resistance, the electronic system stops the motor. Restart the tool: see the “User manual”... -
Page 11: Servicing And Maintenance
Greasing Servicing and maintenance Generously grease the vibrating head at least once every day, in the morning before starting work. Use NLGI class 2 grade type grease > Unscrew the screws All servicing and maintenance operations must be carried out with the tool disconnected from all power sources: Adapt the servicing frequencies to your tool use. -
Page 12: Safety Instruction
> Re-tighten the screw when greasing is OK Safety instruction IMPORTANT. To reduce the risk of electric discharges, injuries and fire when using electric tools, follow the fundamental safety measures indicated below. Read and follow these instructions before using the tool, and keep the safety instructions! Outside operations related to the use of the tool, your tool and its accessories must be disconnected and stored in their relevant packaging. -
Page 13: Warranty Conditions
The possible immobilisation of the tool during repairs. free of oil. All work carried out by a person other than approved INFACO agents will cancel the tool Remove the tool keys. Before starting the machine, make sure the keys and adjustment warranty. -
Page 14: Troubleshooting
To validate the warranty, REGISTER IMMEDIATELY ONLINE ON : Battery discharged Recharge the battery. www.infaco.com, your warranty declaration or send this form filled out red steady IN BLOCK CAPITALS AS SOON AS THE TOOL IS PURCHASED. The machine will not start No power supply Re-connect the machine. -
Page 15: Technical Information
Technical information or customer service INFACO S.A.S. Bois de Roziès 81140 CAHUZAC-SUR VERE France Phone: (+33) 05 63 33 91 49 - Fax: (+33) 05 63 33 95 57 Email: contact@infaco.fr Technical videos available on the website: www.infaco.com...
