Summary of Contents for infaco AT100036

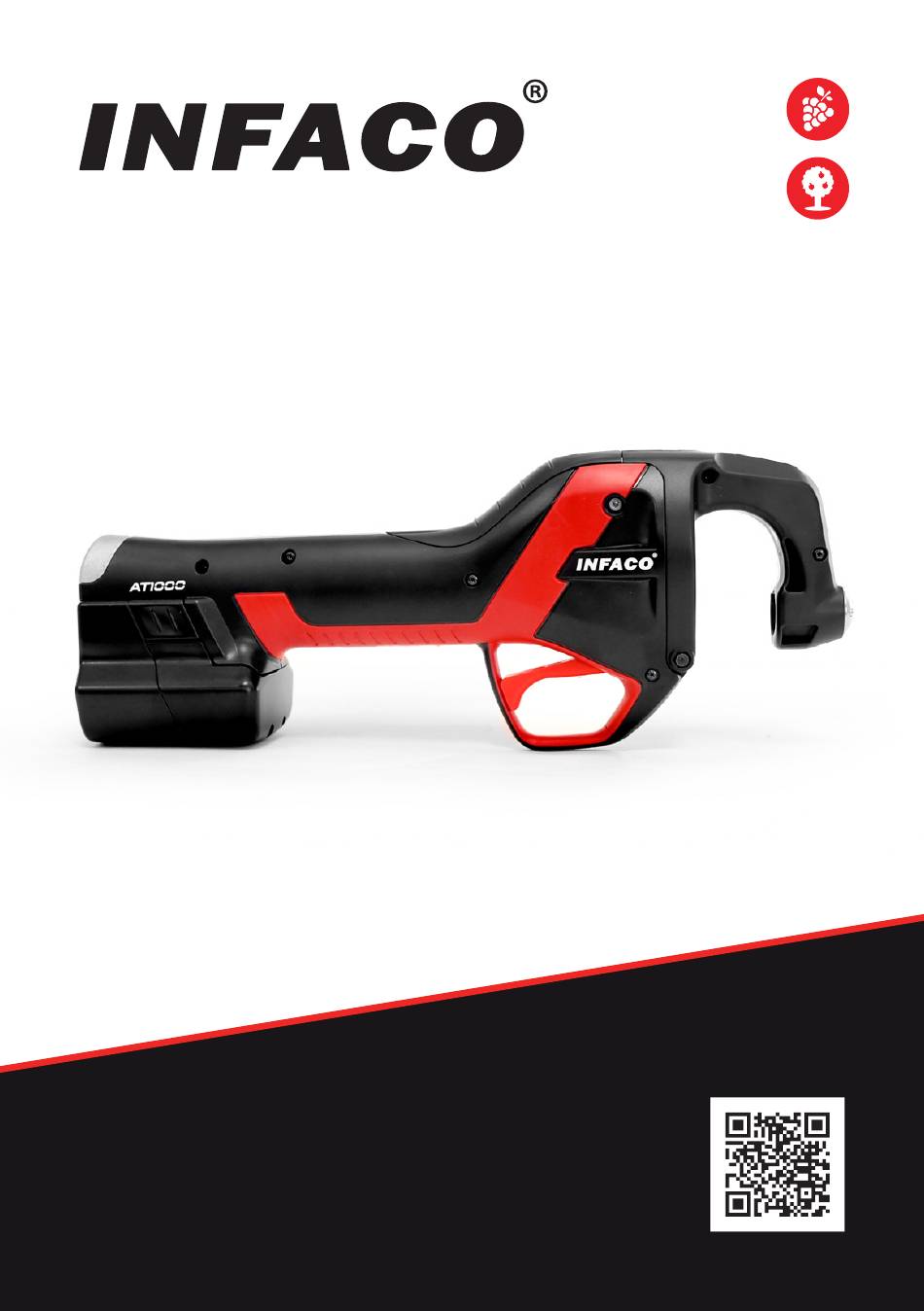

- Page 1 At1000/36 tying machine other languages original user guide -...
- Page 2 AT1000 With built in removable battery AT100036 Compatible with F3020 and F3015 offset batteries...
-
Page 3: Table Of Contents
contents Precautions before use Protection of the environment Case contents General product view Specifications User guide Precautions for use and safety Battery charging Twist level adjustment LED indications Servicing Yearly maintenance Troubleshooting Transport and storage Safety instructions Warranty conditions Annual maintenance Warranty declaration outside France Technical information Declaration of conformity (CE) -
Page 4: Precautions Before Use
Power tools must not be disposed of with household refuse. > The device, accessories and packaging must be taken to a recycling centre. > Ask the approved INFACO dealer for up-to-date information on the eco- compatible elimination of waste. Case contents AT1000... -
Page 5: General Product View
(or cable output for AT100036) Trigger HMI (Human Machine Interface) Charge indicator Settings button Twist level indicator Charger Charge indicator To wall outlet To the battery For the AT100036, see the F3020 or F3015 pruning shear manual depending on model being used... -
Page 6: Specifications
* For users of the F3015 battery (ref: 831B), see F3015 manual, "Specifications" section. ** INFACO strongly advises against the use of non-INFACO brand reels. They can cause loss of performance (premature tie breakage) and machine malfunctions not covered by the warranty. -
Page 7: User Guide
AT1000: see section « Recharge de la batterie », page 13 • AT100036: see “Recharging the battery” section in the F3020 or F3015 manuals depending on the use. Each lithium battery must be recharged using its own INFACO lithium charger, namely: •... - Page 8 The machine can be hooked onto the holding strap on the opposite side to the feeder when moving around or for any operations requiring the hands to be free. Carrying the AT100036 • Carrying is the same as for the F3020 or F3015 pruning shears (see corresponding instructions in the “Use Guide”...
-
Page 9: Precautions For Use And Safety
Always keep your hands away from the work area when the machine is running. • AT1000: Connect the battery to the machine • AT100036: Connect the cable to the battery and then to the machine The machine is switched on in sleep mode. Pull the trigger twice to exit sleep mode. -
Page 10: Use
Loading the reel The use of non-INFACO brand reels can cause machine breakdowns. In such cases, users are warned that any malfunctions that may occur are NOT COVERED BY THE WARRANTY. Open the zipper on the feeder. Take the inner wire and insert the reel into the feeder. Do not remove the label holding the reel. - Page 11 Creating a tie Take the end of the rod and the trellis wire firmly in your free hand and bring the AT1000 close. Insert the rod + the trellis wire inside the beak. Pull the trigger to create the tie. Remove the rod + the trellis wire from the beak.
- Page 12 Battery charge level The battery charge level is indicated by the three LEDs on the product’s charge indicator. Charge indicator Battery low state: When the last LED flashes green, the battery charge is less than 10%. Battery flat state: When the battery is completely flat, the product stops. The last LED switches to fast flashing red. The battery must be recharged (see page 13).
-
Page 13: Battery Charging
Battery charging For users of the AT100036, refer to the "Recharging the battery" section in the F3020 or F3015 pruning shears manual depending on the use. The information given below (from pages 13 to 16) only applies to the AT1000 (with built-in battery). - Page 14 Charging the battery Charging batteries when the temperature in the room is below 32°F (0°C) or higher than 104°F (40°C) is strictly prohibited. Neither the battery nor the charger must be covered, close to a heat source or to inflammable products during charging.
- Page 15 Do not store out of service batteries. Return them to an approved INFACO dealer. Do not store batteries when they are connected to the charger or to a tool.
- Page 16 6 flashes ( ): defective battery. • continuous alternating red and yellow flashing ( ): temperature sensor fault. The INFACO lithium charger (ref.: AT180CC) is only for use with AT1000 Lithium batteries (Ref: AT185BC). It is not suitable for other batteries.
-
Page 17: Twist Level Adjustment
Twist level adjustment Always keep your hands away from the work zone when the machine is powered on. Twist level indicator • The number of twists can be set from 4 to 8 depending on the selected level. Four different levels are available. The number of twists increases the strength and tightness of the loop. -
Page 18: Led Indications
LED indications Charge indicator Twist level indicator The product is operational Steady green LED: the product is ready for use. 1 flashing green LED: the product is in standby mode. Pulling the trigger twice will exit standby mode. Overheating pause (temporary product shutdown) 1 flashing orange LED: the tool has overheated, wait for the machine to cool down. -
Page 19: Servicing
Check that there is no residue in the corrosive products that could damage the beak, otherwise clean it. machine. When in doubt, contact INFACO Proceed in reverse order to close the for the choice of products to be used. machine (operation 3 to 1). - Page 20 Always remove the battery before working on the product Replacing twisting mechanism Open the beak by pressing ridged area down while tilting it forward. Use the "Torx T8" bit. Unscrew the Remove the old twisting mechanism screw while holding the twisting and replace it with the new one.
- Page 21 Lubrication (once per week) Open the beak by pressing the Open the top cover by pulling back ridged area down while tilting it and lifting it. forward. Raise the press roller towards the top cover. Lubricate the press roller shaft using Lubricate the clamp.
-
Page 22: Yearly Maintenance
Yearly maintenance Every year or every 400,000 ties, it is strongly recommended to carry out an annual check. This will let you start the next season under the best conditions and in complete safety. Annual maintenance advice: • Clean the inside of the machine (dust, cut wires); •... - Page 23 Twine jam Always remove the battery before working on the product Open the beak by pressing the ridged area down while tilting it forward. Open the top cover by pulling back and lifting it. Raise the press roller towards the top cover.
- Page 24 Remove the twine jam by smoothing Pass the twine through the knife or cutting it. Clean all residues from nozzle, and let it protrude by 5 to 6 the twine passage. cm / 2 to 2.5 inches. Lower the press roller, then close the top cover holding it down while pushing it towards the beak to clip it in place.
-
Page 25: Transport And Storage
The information given in this section only applies to the AT1000 (with built- in battery). For AT100036 users, see the F3020 or F3015 manual, depending on use, in the “Recharging the battery” section, “Winterizing the battery” and “Battery storage instructions” paragraphs, as well as in the “Transport precautions” section. - Page 26 To reduce health risks, INFACO recommends that people wearing a pacemaker should consult a doctor and the pacemaker manufacturer before using this system. INFACO declines all liability for injuries and/or material damage caused by the use of equipment containing defective parts.
-
Page 27: Warranty Conditions
Warranty conditions INFACO cannot be held liable or accept claims under the warranty, regardless of the cause or legal basis, for any defect, damage and/or prejudice whatsoever resulting from (1) storage, use, maintenance and/or intervention on the equipment by the user contrary to the instructions in this manual (in particular the safety instructions);... -
Page 28: Annual Maintenance
Equipment not covered by the warranty and not serviced during the previous off-season, send it to INFACO carriage paid and the return will be paid for by the owner, C.O.D. If the cost of the repair were to exceed € 80 excluding VAT, a quote is issued. -
Page 30: Warranty Declaration Outside France
To obtain the validity of the warranty, declare it WHEN YOU PURCHASE THE TOOL. This warranty declaration must be made online, on: www.infaco.com or using this QR code: Do not hesitate to ask an approved INFACO dealer for assistance in completing your INFACO international manufacturer's warranty declaration. - Page 31 Comments > ..........additional part To validate the warranty, REGISTER IMMEDIATELY ONLINE ON: www.infaco.com, or send this form filled out IN BLOCK CAPITALS AS SOON AS THE TOOL IS PURCHASED. Surname > ............. First name > ..........Company name > ......................
- Page 32 Serial number dealer To be kept by dealer for INFACO customer file...
-
Page 33: Technical Information
AT1000 and AT100036 Technical information or After-sales INFACO S.A.S. Bois de Roziès 81140 CAHUZAC-SUR VERE France Phone: (+33) 05 63 33 91 49 - Fax: (+33) 05 63 33 95 57 Email: contact@infaco.fr Technical videos available on the website: www.infaco.com... -
Page 34: Declaration Of Conformity (Ce)
"Caricabatteria elettrici" (direttiva 2004/108/CEE) e alle regolamentazioni nazionali che le traspongono. • The person at INFACO authorised to compile the technical file is Mr. ALVAREZ Grégory. La persona autorizada para elaborar el documento técnico dentro de INFACO es el Sr. ÁLVAREZ. - Page 36 w w w . i n f a c o . c o m EN - User Manual - Tying machine AT1000/36 NOT_AT1000_EN_06_24...
