Rugged Ridge Omix-Ada Alloy Savannah JL Manual

Brief top

460 HORIZON DR. SUITE 400 | SUWANEE, GA 30024 | PHONE: 770-614-6101 | FAX: 770-614-6069 | info@omix-ada.com

1. For correct installation, mounting surface of

part should be between 70-95° F (21-35° C)

prior to installation.

Remove existing hard or soft top. For OEM

(original/factory) soft tops, also remove:

Windshield header channel, Tube hardware,

side door surrounds can be used if wanted.

Brief Top works with or with out door

surrounds.

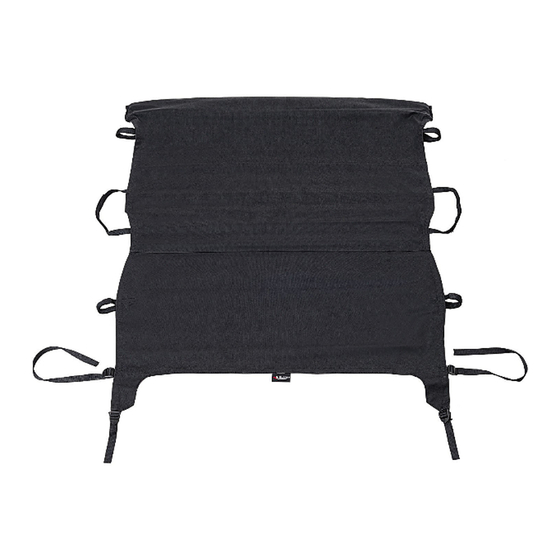

Unfold your new Savannah™ Brief Top and

lay onto a flat surface.

2. Lay the header channel on top of the fabric

tucking inside and secure with snaps as shown.

3. Secure with snaps as shown.

Savannah Brief Top, JL & JLU

, Inc.

Page 1/3

IS-BT-04

Part # 13593.35

13594.35

Table of Contents

Need help?

Do you have a question about the Omix-Ada Alloy Savannah JL and is the answer not in the manual?

Page 1 Page 1/3 IS-BT-04 Part # 13593.35 13594.35 460 HORIZON DR. SUITE 400 | SUWANEE, GA 30024 | PHONE: 770-614-6101 | FAX: 770-614-6069 | info@omix-ada.com Savannah Brief Top, JL & JLU 1. For correct installation, mounting surface of part should be between 70-95° F (21-35° C) prior to installation.
Page 2 Page 2/3 IS-BT-04 Part # 13593.35 13594.35 460 HORIZON DR. SUITE 400 | SUWANEE, GA 30024 | PHONE: 770-614-6101 | FAX: 770-614-6069 | info@omix-ada.com Savannah Brief Top, JL & JLU 4. Place the top onto the vehicle. Placing header channel onto windshield front. Unfold the cover fabric then pull over sound bar and roll cage, working toward the rear of the vehicle.
Page 3 Page 3/3 IS-BT-04 Part # 13593.35 13594.35 460 HORIZON DR. SUITE 400 | SUWANEE, GA 30024 | PHONE: 770-614-6101 | FAX: 770-614-6069 | info@omix-ada.com Savannah Brief Top, JL & JLU 7. Open all doors. Attach the hook and loop straps around the roll bar to secure the brief to the vehicle.
