460 HORIZON DR. SUITE 400 | SUWANEE, GA 30024 | PHONE: 770-614-6101 | FAX: 770-614-6069 | info@omix-ada.com
1. Small Bow Knuckle
PHONE: M-F 8am - 5pm EST 1-800-449-6649 | EMAIL: techsupport@omix-ada.com

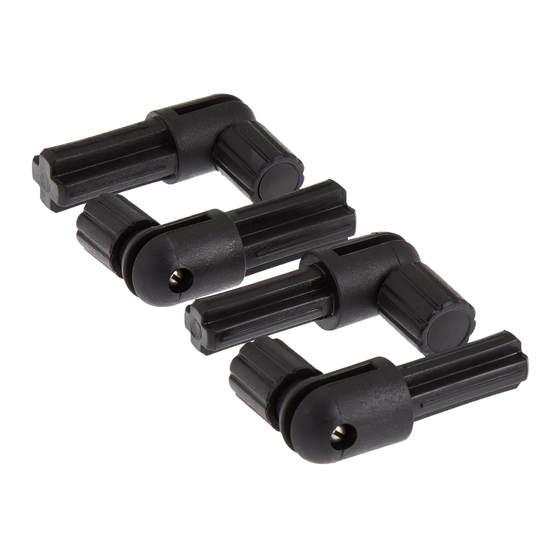

Quick Release Bow Knuckle Kit
Components
(2 - 13510.10)
(4 - 13510.12)
OMIX-ADA
TECHNICAL SUPPORT
®
FOR WARRANTY INFORMATION VISIT: www.Omix-Ada.com
Copyright © 2017 Omix-Ada
2. Large Bow Knuckle
®
, Inc.
Page 1/3
Part # 13510.10
13510.11
13510.12
(2 - 13510.10)
(0 - 13510.12)
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Rugged Ridge 13510.10
Summary of Contents for Rugged Ridge 13510.10
- Page 1 Page 1/3 Part # 13510.10 13510.11 13510.12 460 HORIZON DR. SUITE 400 | SUWANEE, GA 30024 | PHONE: 770-614-6101 | FAX: 770-614-6069 | info@omix-ada.com Quick Release Bow Knuckle Kit Components 1. Small Bow Knuckle (2 - 13510.10) 2. Large Bow Knuckle (2 - 13510.10)
- Page 2 2. Insert Quick Release Bow Knuckles in open ends of soft top bows. If installing kit #13510.10 ensure NOTICE quick release knob on Large Bow Knuckles face outward and quick release knob on Small Bow Knuckles face inward.
- Page 3 Page 3/3 460 HORIZON DR. SUITE 400 | SUWANEE, GA 30024 | PHONE: 770-614-6101 | FAX: 770-614-6069 | info@omix-ada.com Quick Release Bow Knuckle Kit 4. Align bow knuckes with mounting bracket and attach them by pulling quick release knob slightly out and twisting counter-clockwise. Once in main groove let go of quick release knob.
