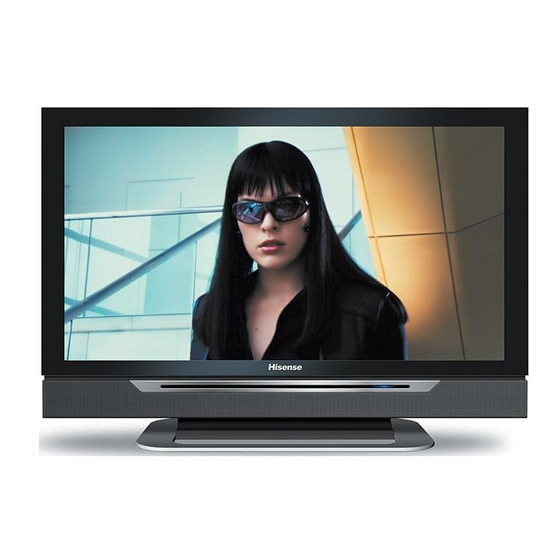

81cm LCD COLOUR TV
USER'S MANUAL
Part No: IES050409

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LCD3204 and is the answer not in the manual?

Questions and answers

Related Manuals for Hisense LCD3204

Summary of Contents for Hisense LCD3204

  • Page 1 LCD3204EU 81cm LCD COLOUR TV USER'S MANUAL Part No: IES050409...

  • Page 2: Table Of Contents

    Thank you for choosing this LCD Colour TV. We expect our product and service will comfort you for long. This manual is to guide you to set up and operate your TV as quickly as possible. Please read all the safety and operation instructions carefully before you begin and then follow what the handbook tells.

  • Page 3: Important Safeguard

    When placing or moving the TV set, take care to insure that the power cord is fitted into the allocated slot. To avoid damage to the power cord, never allow heavy objects such as the TV set itself to be placed on the power cord.
  • Page 4 Notes: The Plug & Play menu is only displayed once when you turn on the TV. If you want to select this menu, please follow the instructions below: 1).Press the [Menu] button to enter the main menu.

  • Page 5: Preparation For Your New Tv

    Selecting a location for the TV 1)Place TV on the floor or on a sturdy platform in a location where light does not directly hit the screen. 2)Place TV far enough from the walls to allow proper ventilation. Inadequate ventilation may cause overheating, which may damage the TV.

  • Page 6: Preparation For Using Your New Tv

    Preparation for Using your new TV 13 1 14 1 AUDIO INPUT [COMPONENT] AUDIO INPUT [VGA DV] AV input AV output Scart1 connector Scart2 connector S-VIDEO input COMPONENT VIDEO input COMPONENT AUDIO input PC AUDIO input Earphone output Note: The above figures are for reference only, please refer to the actual units to determine their appearance.

  • Page 7: Connecting Your Tv

    Preparation for Using your new TV Connecting your TV Caution: Do not plug the TV in until you have finished connecting all of your equipment. Connecting to A/V equipments To enjoy its multimedia features, you can connect your receiver, Camcorder, Audio amplifier etc., and select signal sources using your remote control.

  • Page 8: Connecting To An Antenna

    NOTE: PC mode support resolution: VGA, SVGA, XGA, SXGA. Connecting to an antenna To enjoy the terrestrial signal transmitted by your local TV station, you need an indoor or outdoor antenna (not supplied). Perfect picture quality requires a good signal and generally means that an outdoor antenna must be used.

  • Page 9: Using The Remote Control

    Using the remote control Preparing the remote control for use Installing the remote control batteries 1. Open the battery cover on the back of the remote control. 2. Install two AAA size(1.5V) batteries. Match the + and - signs on the batteries to the signs on the battery compartment.

  • Page 10: Learning About The Remote Control

    Return to previous channel : Select picture mode Channel up : Volume down Channel down Select sound mode Freeze picture Zoom Zoom Ajust zoom ration Switch to TV,SCART1, AVand SCART2 mode Component mode Not used Text Zoom Zoom Still Video S-Video...

  • Page 11: Using The Tv Features

    Signal source selection Press [CH+/CH- ] button to select TV input; press the [VIDEO] button to select TV ,scart1, scart2 and AV input in turn; press the [S-VIDEO] button to select S-VIDEO input ;press the [ YP button to select YP input;...
  • Page 12 When you changing the channel, the sound mode will be displayed below the channel number. There are 3 sound states in this TV. If the sound is mono, the graphics is If the sound is NICAM dual I/II, the graphics is Which indicate preset of picture system and sound system.

  • Page 13: Using The Channel Menu

    Using the TV features Using the CHANNEL menu PROGRAM 1) Press [MENU] button to enter main menu. 2) Press [VOL+ or VOL-] button to select the item CHANNEL. 3) Press [CH+ or CH-] button to select PROGRAM. 4) Press [VOL+ or VOL-] button to select the channel.

  • Page 14: Using The Picture Menu

    [CH+ or CH-] button to select PIP POSITION, PIP BRIGHTNESS or PIP CONTRAST, press [VOL+ or VOL-] button to adjust the value. Note: 1) When main picture is AV/TV/ SCART/S-VIDEO. pip picture is HDTV(YP 2) When main picture is PICTURE IN PICTURE...

  • Page 15: Using The Menu Lock Setting Menu

    Using the TV features Using the MENU LOCK SETTINGS menu LOCK MENU 1) Press [MENU] button to enter main menu. 2) Press [VOL+ or VOL-] button to select the item MENU LOCK SETTINGS. 3) Press [CH+ or CH-] button to select LOCK MENU.

  • Page 16: Using The General Setting Menu

    Using the TV features Using the GENERAL SETTINGS menu OSD POSITION 1) Press [MENU] button to enter main menu. 2) Press [VOL+ or VOL-] button to select the item GENERAL SETTINGS. 3) Press [CH+ or CH-] button to select OSD POSITION.

  • Page 17: Using The Pc Menu

    Using the TV features Using the GENERAL SETTINGS menu DEINTERLACER 1) Press MENU button to enter main menu. 2) Press [VOL+ or VOL-] button to select the item GENERAL SETTINGS. 3) Press [CH+ or CH-] button to select DEINTERLACER. 4) Press [ VOL+ ] button to enter the DEINTERLACER.

  • Page 18: Teletext Operations

    Press [ YPbPr ] button to switch to the TV mode. When required page is found, the page number will appear at the top of the TV picture, press [ YPbPr ] button to return to the selected Teletext page.
  • Page 19 Using the TV features Teletext Operations TIME Time information is contained in the teletext broadcast. In Teletext mode, press [Time] to display the time. FAST TEXT The RED, GREEN, YELLOW & CYAN buttons are used for quick access to colour coded pages transmitted by FAST TEXT broadcast.

  • Page 20: Appendix

    The remote control does not operate Disorder display at power on Customer important notice: When the TV can not be operationed in some special situation,please unplug the power and restart. Possible Solutions Make sure the power cord is plugged in, then press [Power].

  • Page 21: Cleaning And Care

    2) Use a clean cellulose sponge or chamois cloth dampened with a solution of mild detergent and warm water to clean the TV screen and trim. Do not use too much water as water spilled into the cabinet can cause damage to the TV.

  • Page 22: Specifications

    Sound System: Tuner: Antenna: Stereo: VIDEO INPUT: SCART-1 (Video and RGB) SCART-2 (Video and Y/C) AV input COMPONENT Audio in TV SET OUT Audio/Video Output Speaker Output Power Requirement Power Consumption Dimensions(mm) Weight(net) Allowable temperature of operation environment ...0 ACCESSORIES...
