LCD2603AU
66 cm LCD WIDESCREEN TELEVISION
Part No: IES050156

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LCD2603AU and is the answer not in the manual?

Questions and answers

Related Manuals for Hisense LCD2603AU

Summary of Contents for Hisense LCD2603AU

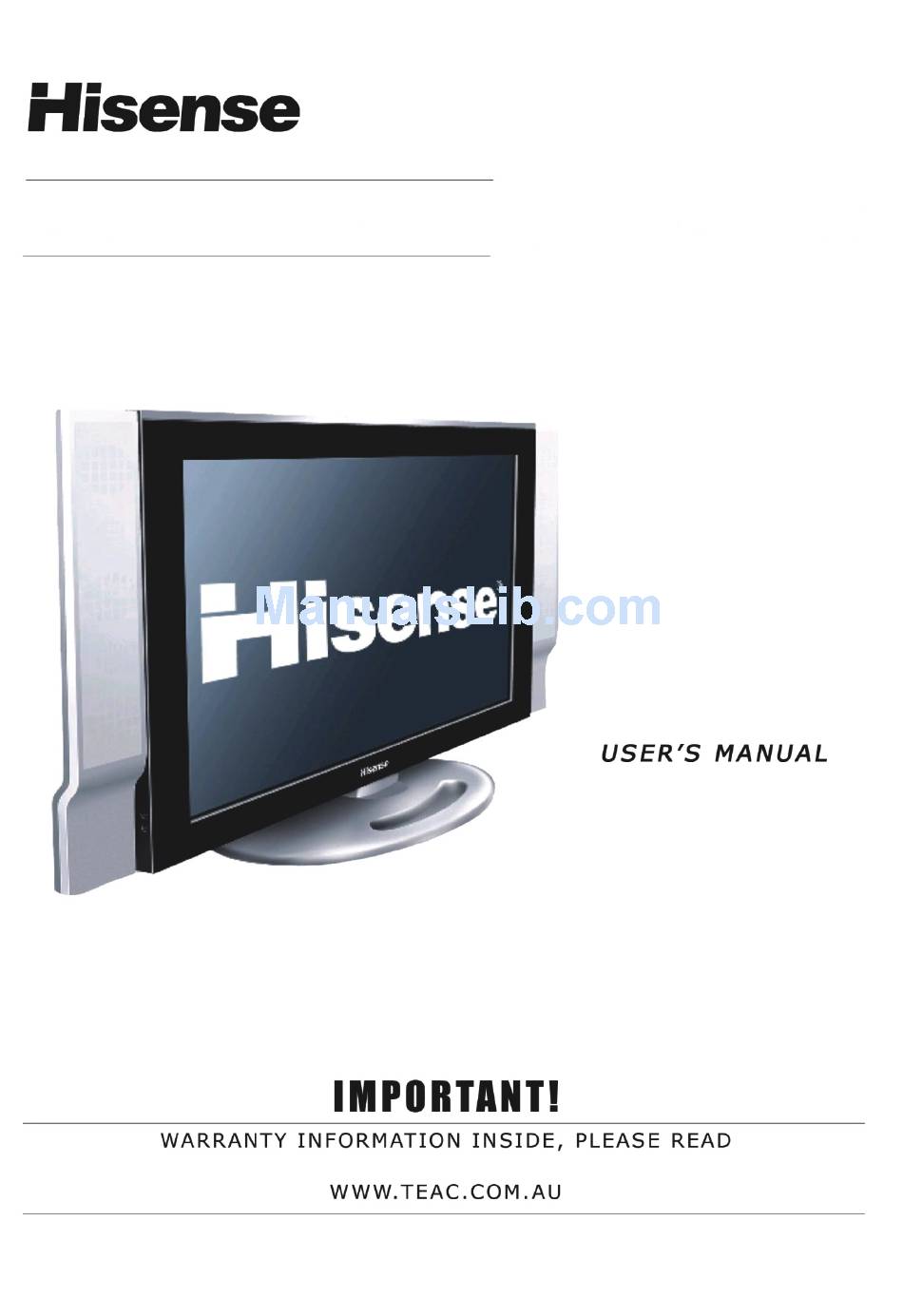

  • Page 1 LCD2603AU 66 cm LCD WIDESCREEN TELEVISION Part No: IES050156...
  • Page 2 WARRANTY REGISTRATION Please read this warranty card. Keep your purchase receipt to enable you to proceed quickly in the event of a Warranty Service. Warranty Terms & Conditions TEAC warrants to the original retail purchaser only, that this product is free from defects in material and workmanship under normal domestic use and authorises free service during the warranty period at any TEAC Authorised Centre only.
  • Page 3 WARRANTY PROCEDURES Please keep this information for your own records. Please refer to the owner’ s manual to ensure that you have followed the correct installation and operating procedures. Read owner’ s manual carefully If you require Warranty Service, please contact the TEAC Service Centre Please have your purchase receipt as your proof of purchase and the following details completed for a valid Warranty.

  • Page 4: Table Of Contents

    WELCOME TO THE PERFECT VIEW WORLD OF HISENSE LCD TV Dear customer, Thank you for choosing this LCD Colour TV. We expect our product and service will comfort you for long. This manual is to guide you to set up and operate your TV as quickly as possible. Please read all the safety and operation instructions carefully before you begin and then follow what the handbook tells.

  • Page 5: Important Safeguard

    IMPORTANT SAFEGUARD WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. FIRE AND SHOCK PRECAUTIONS Adequate ventilation must be provided to prevent heat build up inside unit. Keep the inside of unit free from foreign objects, such as hairpins, nails, paper, etc.

  • Page 6: Preparation For Using Your New Tv

    Preparation for using your new TV Selecting a location for the TV 1)Place TV on the floor or on a sturdy platform in a location where light does not directly hit the screen. 2)Place TV far enough from the walls to allow proper ventilation. Inadequate ventilation may cause overheating, which may damage the TV.

  • Page 7: Connecting Your Tv

    Preparation for using your new TV MENU button S-Video input Component audio input Source select AV input Wall mounting locating hole Volume down / cursor left AV output PC audio input 21 21 Volume up / cursor right Headphone output AC Power switch Channel down / cursor down RS232C input...

  • Page 8: Connecting To A Computer

    Preparation for using your new TV Connecting to a computer You can use your TV as a monitor/speakers for your computer by connecting through its 15pin standard RGB interface and PC audio interface. Connect the devices as shown below. PC/NB RGB line PC AUDIO S-VIDEO...

  • Page 9: Using The Remote Control

    Using the remote control Preparing the remote control for use Installing the remote control batteries 1. Open the battery cover on the back of the remote control. 2. Install two AAA size(1.5V) batteries. Match the + and - signs on the batteries to the signs on the battery compartment.

  • Page 10: Learning About The Remote Control

    Using the remote control Learning about the remote control Power : Power on/off Power (standby) Channel Number : Direct channel selection Not used Recall : Return to previous channel Display Recall Display : Display current input P.Mode : Select picture mode Text P.Mode CH+ : Channel up...

  • Page 11: Using The Tv Features

    Using the TV features Understanding the TV features Multimedia - TV receiver, Video monitor and PC display, all in one. Wider viewing angle, 16:9 display - 176 viewing angle at typical value Digital display device - truthfully reproducing the images, without distortion or blurring, irrespective of magnetic or geomagnetic effect.
  • Page 12 Using the TV features Select channels by numbers To select a channel : Press the channel numbers in series to select channel directly. For example, to seclect channel 120, Press the button 1, and 1_ _ will display on the top right corner of the screen, then press the button 2, 12_ will display, press the button zero, you can enjoy the program of channel 120.

  • Page 13: Using The Channel Menu

    Using the TV features Using the CHANNEL menu PROGRAM CHANNEL 1) Press [MENU] button to enter main menu. 2) Press [VOL+ or VOL-] button to select the item CHANNEL. 3) Press [CH+ or CH-] button to select PROGRAM. 4) Press [VOL+ or VOL-] button to select the channel.

  • Page 14: Using The Picture Menu

    Using the TV features Using the PICTURE menu PROGRAM Adjust picture settings PICTURE PARAMETERS 1) Press [MENU] button to enter main menu. 2) Press [VOL+ or VOL-] button to select the item PICTURE. BRIGHTNESS PARAMETERS. CONTRAST 3) Press [CH+ or CH-] button to select the item you want to adjust.

  • Page 15: Using The Menu Lock Setting Menu

    Using the TV features Using the MENU LOCK SETTINGS menu LOCK MENU MENU LOCK SETTINGS 1) Press [MENU] button to enter main menu. 2) Press [VOL+ or VOL-] button to select the item MENU LOCK SETTINGS. 3) Press [CH+ or CH-] button to select LOCK MENU.

  • Page 16: Using The General Settings Menu

    Using the TV features Using the GENERAL SETTINGS menu OSD POSITION GENERAL SETTINGS 1) Press [MENU] button to enter main menu. 2) Press [VOL+ or VOL-] button to select the item GENERAL LANGUAGE ENGLISH SETTINGS. 3) Press [CH+ or CH-] button to select OSD POSITION.

  • Page 17: Using The Pc Menu

    Using the TV features Using the GENERAL SETTINGS menu DEINTERLACER 1) Press MENU button to enter main menu. 2) Press [VOL+ or VOL-] button to select the item GENERAL SETTINGS. 3) Press [CH+ or CH-] button to select DEINTERLACER. 4) Press [ VOL+ ] button to enter the DEINTERLACER. 5) Press [ CH+ or CH-] button to select the feature.

  • Page 18: Appendix

    Appendix Appendix Cleaning and care WARNING: Do not try to remove the cabinet back. Refer servicing to qualified service technicians. To clean the TV screen: 1) Unplug the main AC power form the TV to avoid possible shock hazard. 2) Use a clean cellulose sponge or chamois cloth warm dampened with a solution of mild detergent to clean the TV screen and trim.

  • Page 19: Specifications

    Specifications Screen Size: 26-inch (66cm) LCD TV Native resolution 1280 x 768 Brightness: 450 Cd/m2 Contrast ratio: 500:1 Colour System: PAL/SECAM Receiving System: PAL B/G, D/K, I, L/L' Tuner: VHF/UHF:48.25~863.25 ANTENA: 75 Ohms VHF/ UHF input A2 STEREO/NICAM STEREO: VIDEO INPUT: INPUT-1(AV Composite Video)signal: 75 Ohms input, 1 Vp-p, negative sync.
  • Page 20 TEAC CORPORATION TEAC CORPORATION 3-7-3, Nakacho, Musashino-shi, Tokyo 180-8550,Japan 3-7-3, Nakacho, Musashino-shi, Tokyo 180-8550,Japan Phone: (0422) 52-5081 Phone: (0422) 52-5081 TEAC AUSTRALIA PTY.,LTD. TEAC AUSTRALIA PTY.,LTD. A.B.N.:80 005 408 462 A.B.N.:80 005 408 462 HEAD OFFICE HEAD OFFICE 280 William Street, Melbourne, VIC 3000 280 William Street, Melbourne, VIC 3000 Phone : (03)9672 2400 Phone : (03)9672 2400...
