S8VS Micro switch-mode power supply
Powerful performance in compact design
Helps reduce cabinet space.
One of the most efficient power supplies in its class!

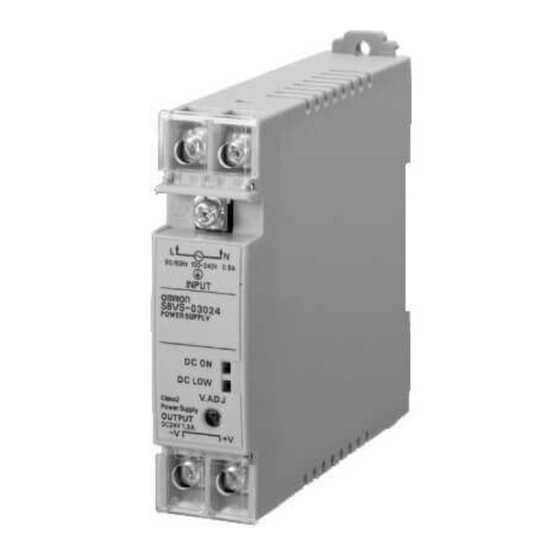

At just 22.5mm wide Omron's S8VS Micro series is one of the
world's smallest power supplies, but delivers more power per cm
than almost any similar product in its class. This super-compact
power supply offers flexible mounting (DIN-rail and horizontal
or vertical panel mounting) for convenient installation. It provides
100% performance (no derating) right up to its maximum
operating temperature. And it is available in 15W and 30W
models, each of which offers an output voltage choice of 5VDC,
12VDC and 24VDC.
The S8VS Micro also features a DC Low indicator (orange) and DC
On indicator (green). It is the ideal solution for manufacturers who
want a compact and cost-effective solution for compact machines
that require low power. Typical applications include powering
PCBs, PLCs, HMIs and sensors in factory automation systems.
Advanced Industrial Automation
Features at a glance:
• Compact size
At just 22.5mm wide, the S8VS Micro has one of the
highest power densities per cm
• No derating
Guarantees 100% performance within its rated
operational range of -10°C to 60°C.
• Easy to mount
Flexible DIN-rail or direct panel mounting in different
directions saves time and space.
• Full range to choose from!
Option of 15W and 30W models, each with a choice
in output of 5VDC, 12VDC and 24VDC.
3
Ideal for compact machines
The S8VS Micro incorporates innovative metal-frame circuit board
technology that enables it to provide a higher power density per
3
cm than almost any other power supply (applies to 30W models
only). The discrete components used in this technology dissipate
very little heat, so no conventional heat sinks are required.
This makes the S8VS Micro ideal for compact machines that
require a very reliable power supply, and where space
is a premium.
3
around!
