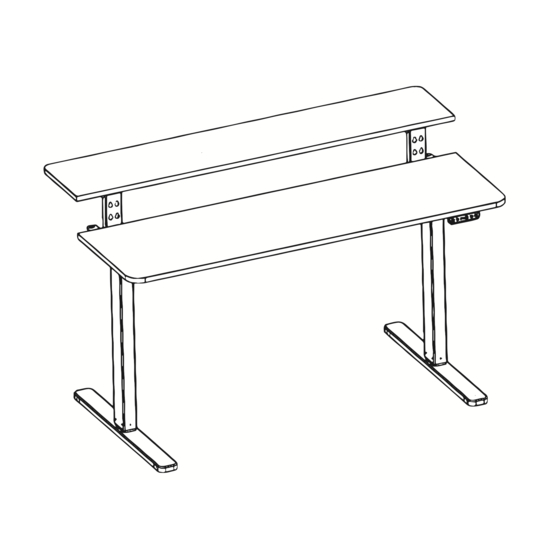

Black 2 Tier 55" x 28" Electric Desk
Instruction Manual
SKU: DESK-E-T55B
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/desk-e-t55b
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303
Advertisement
Table of Contents
Related Manuals for Vivo DESK-E-T55B
Summary of Contents for Vivo DESK-E-T55B
- Page 1 Black 2 Tier 55" x 28" Electric Desk Instruction Manual SKU: DESK-E-T55B Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/desk-e-t55b GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com...
- Page 2 WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual and do not exceed weight capacity.
- Page 3 DO NOT EXCEED WEIGHT CAPACITY. 176lbs Failure to do so may result in serious injury. (80kg) TOOLS NEEDED Phillips Level Drill Screwdriver ASSEMBLY STEPS STEP 1 Secure Desk Crossbar (C) to Leg With Motor (A) and Leg (B) using M8x47 Screws (S-B) and 5mm Allen Wrench (T-C).
- Page 4 STEP 2 Mount Feet (D) to Leg With Motor (A) and Leg (B) using M6x12 Screws (S-A) and 4mm Allen Wrench (T-B). Thread Foot Pads (L) into Feet (D). STEP 3 Secure Left Side Bracket (H) to Leg (B) and Right Side Bracket (G) to Leg with Motor (A) using M6x10 Flat Head Screws (S-C) and 4mm Allen Wrench (T-B).
- Page 5 STEP 4 Loosen the nut on Sync Rod (J) and insert the hex rod end into Leg (B). While holding the hex end, pull the larger rod out until the connector engages with Leg With Motor (A). Tighten the set screw on Sync Rod (J) using 2mm Allen Wrench (T-A), then tighten the nut.
- Page 6 STEP 6 With the desk cafully flipped over, loosely install M6X10 Socket Head Screws (S-D) into the back of Desk Crossbar (C) using 4mm Allen Wrench (T-B). Note, leave about 3mm (1/8") of thread showing. (1/8") STEP 7 Determine the desired height of the shelf. Install the shelf assembly by sliding the Shelf Brackets (I) over the previously installed M6x10 Socket Head Screws (S-D).
- Page 7 STEP 8 Connect Control Panel (M) to Leg With Motor (A) and AC Adapter (N). Plug AC Adpater (N) into an AC electrical outlet. If necessary, adjust Foot Pads (L) to level the desk. Manage cables using Cable Clips (S-F). CAUTION! Do not exceed desk Keep area of vertical...
