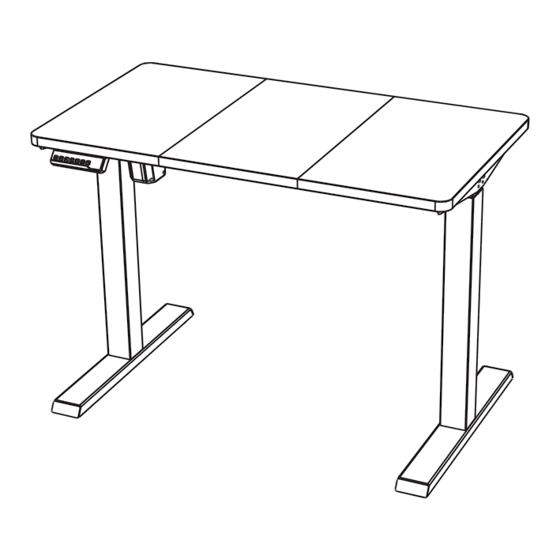

Black 43" x 24" Electric Desk
Instruction Manual
SKU: DESK-EB43TB
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/desk-eb43tb
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303
Advertisement
Table of Contents
Related Manuals for Vivo 00818538027488
Summary of Contents for Vivo 00818538027488
- Page 1 Black 43" x 24" Electric Desk Instruction Manual SKU: DESK-EB43TB Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/desk-eb43tb GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com 309-278-5303...
-
Page 2: Electrical Safety Instructions
WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual and do not exceed weight capacity. -
Page 3: Tools Needed
TOOLS NEEDED Tape Phillips Tape Measure Measure Screwdriver DO NOT EXCEED WEIGHT CAPACITY. 143lbs Failure to do so may result in serious injury. (65kg) Level Drill ASSEMBLY STEPS STEP 1 Assemble the desktops (L, M, N) using the desktop connectors (Q) and flat head screws (P). - Page 4 STEP 4 Attach the side brackets (E) to both ends of the frame using four M6x12mm bolts (S-A). Tighten with the Allen wrench (S-F). STEP 5 Loosen the knob on the socket end of the sync rod (F) and slide the sync rod onto the shaft of the motorized leg.
- Page 5 STEP 7 Place the frame upside down on the desktop, extend to match the desktop mounting holes, then tighten the set screws with the Allen wrench (S-F). STEP 8 Place the feet (G) on the legs as shown. Insert and tighten bolts (S-A) using the Allen wrench (S-F). STEP 9 Place the adapter holder (H) over the telescopic crossbar and tighten the two thumbscrews.
- Page 6 STEP 10 Connect the AC adapter and motorized leg to the controller (K). Connect the power cable (J) to the AC adapter. STEP 11 Insert the anti-vibration pads (S-E) into the desktop mounting holes in the crossbar and side brackets. STEP 12 Place the assembled frame on the desktop, making sure the holes are aligned with the desk frame, and secure the frame using ST4.2x20 screws (S-B).
- Page 7 STEP 13 Attach the controller to the underside of the desktop using ST3.5x20 screws (S-C) as shown. Once the controller is installed, cable clips (S-D) can be attached to the desk for cable management. Refer to the Controller User Guide for operational instructions. CAUTION: When moving desk, ALWAYS carry the desk by the frame part ONLY and never by the divided desktop.
