INSTALLATION MANUAL
Level of Difficulty
Easy
Installation difficulty levels are based on time
and effort involved and may vary depending on
the installer level of expertise, condition of the
vehicle and proper tools and equipment.
Weight Carrying Capacity
Gross trailer weight (GTW)
Tongue weight (TW)
Parts List
Item Qty Description
1
1
Trailer ball assembly
2
1
Gooseneck hitch cap
3
2
Shoulder bolt, M6 x 11, 12mm
4
2
Shank adaptor
5
1
Carry Case
Tools Required
Allen key, 4mm
--
Torque Specifications
M6 bolt
6 ft-lbs.
Use above torque setting unless otherwise noted
Product Registration and Warranty
CURT stands behind our products with
industry-leading warranties. To get copies
of the product warranties, register your
purchase or provide feedback, visit:
warranty.curtgroup.com/surveys
CURTMFG.COM
•
PRODUCT SUPPORT: 877.287.8634
WARNING
Make sure the trailer ball assembly fully seats in the gooseneck and can be fully locked by the
pins of your gooseneck hitch.
Use of any pin other than what is provided by the manufacturer
could be a serious safety hazard and will void the warranty.
Ensure that the safety chains operate freely around the trailer ball system
and do not become entangled in the trailer ball system. Check for adequate
turning clearance between the front of all trailers and the truck cab.
If the ball is ever able to move with minimal force by hand more than five degrees
from the vertical position, the product must be replaced. Use of a heavily worn or
30,000 lbs.
damaged trailer ball assembly may result in the trailer becoming separated from
7,500 lbs.
the vehicle. Consult CURT Product Support if you have any questions.
Before every use, be sure the snap ring on the pivot pin
of the trailer ball assembly is in place and properly seated.
Immediately discontinue product use if the snap ring is missing on the end of the trailer ball
pivot pin or if the trailer ball pin has backed partially out of the trailer ball assembly.
When using the trailer ball assembly in a gooseneck designed for square shank
hitches, ensure that the shank adaptors are installed and hardware is tightened.

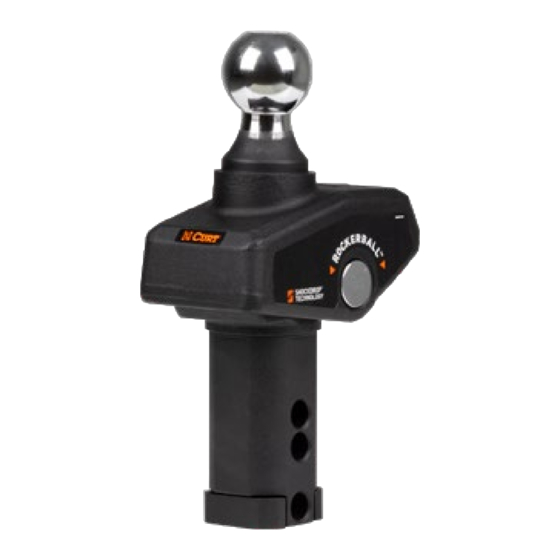

Product Photo
•
60654-INS-RA
•
01/24/2022
•
ECN9271
•
PAGE 1
60654
Advertisement
Table of Contents
Related Manuals for Lippert Curt 60654
Summary of Contents for Lippert Curt 60654

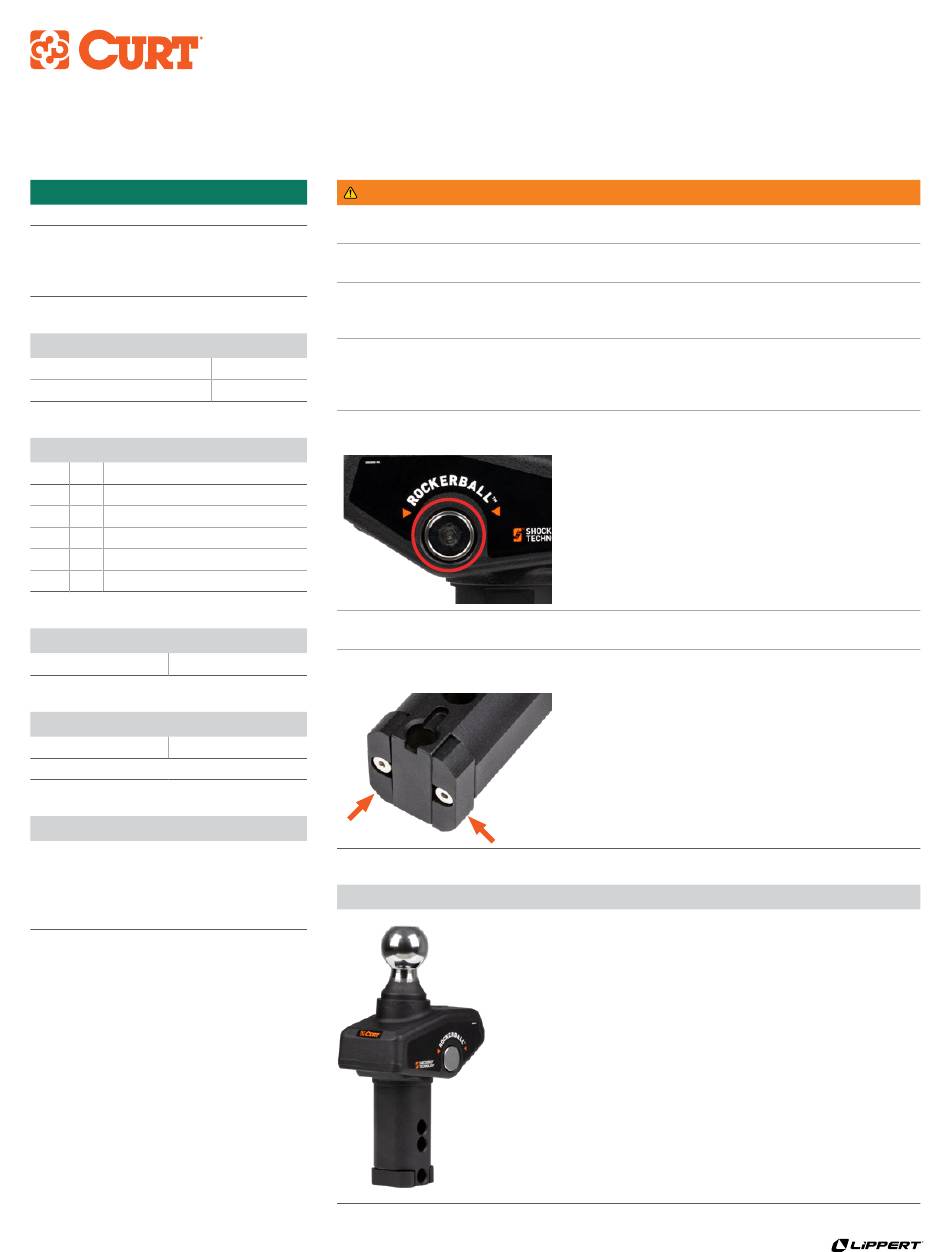

- Page 1 INSTALLATION MANUAL 60654 Level of Difficulty WARNING Easy Make sure the trailer ball assembly fully seats in the gooseneck and can be fully locked by the pins of your gooseneck hitch. Installation difficulty levels are based on time and effort involved and may vary depending on Use of any pin other than what is provided by the manufacturer the installer level of expertise, condition of the could be a serious safety hazard and will void the warranty.
