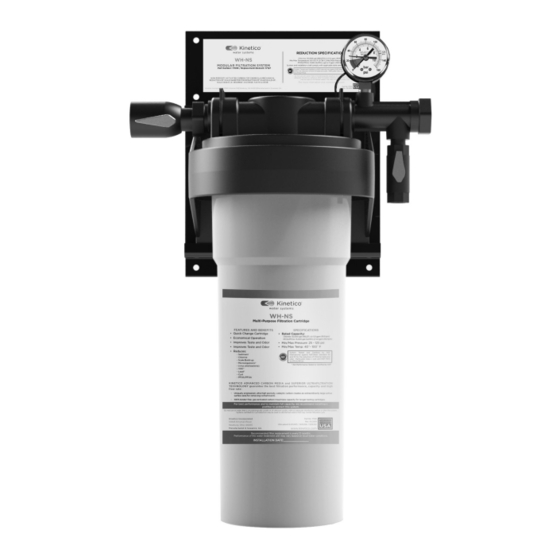

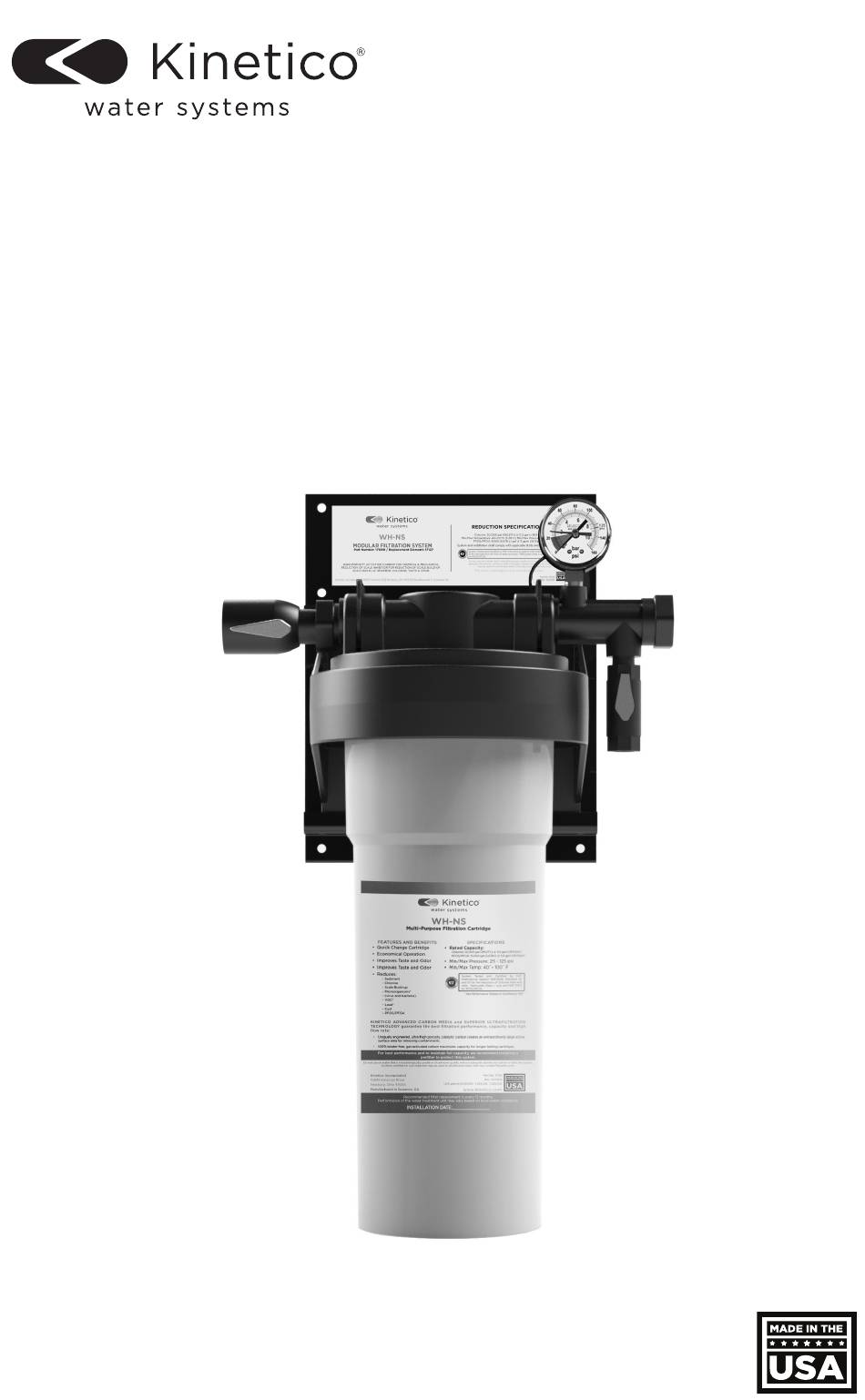

- Page 1 Kinetico Water Filtration System Owner’s Manual WH Series Model: WH-NS...
- Page 2 Congratulations for choosing Kinetico to improve the quality of your water. You will immediately begin to notice the numerous benefits of having quality water in your home and the benefits of having a Kinetico Water Filtration System. © 2019 Kinetico Incorporated “Kinetico”...
-
Page 3: Table Of Contents
Install Your Kinetico Water Filtration System .............. 5 What to Know Prior to Installation ................5 Installation Instructions ....................5 Before Installing......................5 Installation Process ....................6-9 Maintenance ..........................9 Replace the Cartridge of Your Kinetico Filtration System ........10 Specifications ........................10 Replacement Instructions ....................10 Troubleshooting ........................11 inetico ncorporated... -
Page 4: About Your Water Filtration System
Shutting Off the System If you should ever discover a problem with your Water Filtration System, turn off the water supply to the system. Then call your local, authorized Kinetico dealer for service. Filter Changes Kinetico recommends changing the cartridge at least once per year, or if the water flow is reduced to an unacceptable level, or bad taste and/or odor return. -
Page 5: Install Your Kinetico Water Filtration System
What to Know Prior to Installation • The Kinetico Water Filtration System is not to be used where water is microbiologically unsafe or with water of unknown quality without adequate disinfection before or after unit. Systems certified for cyst reduction may be used on disinfected waters that may contain filterable cysts. -
Page 6: Installation Process
Prepare Space for the System: 1. Select appropriate space to install the WH-NS System. The filter should be mounted upright on a vertical surface without obstruction, leaving a minimum of 6” space below the system for cartridge change outs. System measurements are shown below. - Page 7 Kinetico WH Series Water Filtration System Typical Install - Choose correct mounting hardware for surface and attach back plate to wall. Mounting surface and hardware should be rated to support at least 50 lbs. 1. Using a level, mark screw holes for back plate. Drill holes, and insert anchors.
- Page 8 Install Cartridge: 1. Generously lubricate inner and outer O-ring using provided lubricant. 2. Align cartridge tabs as indicated on head and insert cartridge and twist to lock into place. Pressurize and Flush the System: 1. Confirm the inlet ball valve to the system is off, then turn on the main supply line to the system.
-
Page 9: Maintenance
• Min/Max Temp: 40˚-100˚ F • Inlet-Outlet Size: 3/4” NPT - Sediment - Chlorine (NSF tested) - Chloramine Kinetico WH Series Water Filtration System - Scale Build-up - Microorganisms (virus and bacteria) - VOC - Lead 3. Allow flush valve to remain open for 30-60 seconds. -
Page 10: Replace The Cartridge Of Your Kinetico Filtration System
Replace the Cartridge of Your Kinetico Filtration System Specifications Description Part Number Service Cycle (gallons) Flow Rate (gpm) Chlorine - 50,000 (gal) 5.0 (gpm) WH-NS 17099 Chloramine - 15,000 (gal) 5.0 (gpm) PFOS/PFOA - 1,500 (gal) 5.0 (gpm) Min / Max Pressure : 25-125 psi Min / Max Temperature: 40-100˚... -
Page 11: Troubleshooting
Kinetico WH Series Water Filtration System Troubleshooting NOTE: A few drops of water may leak at O-ring when first installed. This should stop when O-rings are under pressure and seal properly. Before beginning any troubleshooting 1. Turn inlet valve off. - Page 12 © 2019 Kinetico Incorporated Corporate Headquarters 10845 Kinsman Road Newbury, Ohio 44065 440.564.9111 www.kinetico.com Part No. 17202 03/2019...
