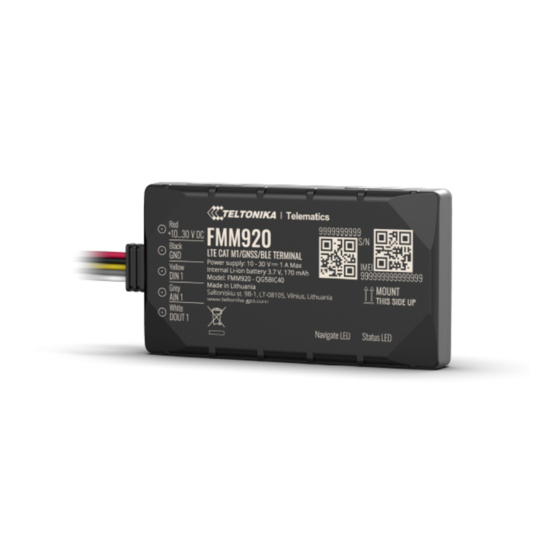

FMM920
Small and smart tracker
Quick Manual v1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FMM920 and is the answer not in the manual?

Questions and answers

Summary of Contents for Teltonika FMM920

  • Page 1 FMM920 Small and smart tracker Quick Manual v1.0...
  • Page 2: Table Of Contents

    Quick SMS configuration ....................................10 Mounting recommendations..................................12 Basic characteristics ......................................13 LED indications ......................................... 13 Electrical characteristics ....................................16 Safety information ......................................17 Certification and Approvals .................................... 18 Warranty ........................................... 19 Warranty disclaimer ....................................... 19 Quick Manual v1.0 // FMM920 Telematics...
  • Page 3: Know Your Device

    KNOW YOUR DEVICE TOP VIEW (WITHOUT COVER) BOTTOM VIEW (WITHOUT COVER) MICRO-USB POWER CABLE BATTERY MICRO-SIM NAVIGATE STATUS SOCKET SLOT Quick Manual v1.0 // FMM920 Telematics...
  • Page 4: Pinout

    DIN1 channel 1. DEDICATED DIN1 FOR IGNITION INPUT (Grey) Analog input, AIN1 AIN1 channel 1. Input range: 0-30 V DC DOUT1 (White) Digital output. DOUT1 Open collector output. Max. 0,5 A DC FMM920 pinout Quick Manual v1.0 // FMM920 Telematics...
  • Page 5: Wiring Scheme

    WIRING SCHEME FMM920 WIRING SCHEME +10...30 V DC DIN1 IGNITION DETECTION DOOR SENSOR ALARM BUTTON AIN1 DOUT1 BUZZER FUEL GAUGE ANALOG POWER SUPPLY STARTER LLS SENSOR 10 - 30V DC Quick Manual v1.0 // FMM920 Telematics...
  • Page 6: Set Up Your Device

    Teltonika Configurator components. Make sure that Micro- SIM card cut-off corner is pointing forward to slot. 3 Page 7, "PC Connection wiki.teltonika-gps.com/view/ 1  (Windows)" FMM920_Security_info wiki.teltonika-gps.com/view/ 2  Teltonika_Configurator Quick Manual v1.0 // FMM920 Telematics...
  • Page 7: Pc Connection (Windows)

    ” • Using Bluetooth • FMM920 Bluetooth is enabled by default. Turn on Bluetooth on your PC, then select Add Bluetooth or other device > Bluetooth. Choose your device named – “FMM920_last_7_imei_digits”, without LE in the end. • Enter default password 5555, press Connect and then select Done.
  • Page 8: Configuration

    CONFIGURATION At first FMM920 device will have default factory settings set. These settings should be changed according to the users needs. Main configuration can be performed via Teltonika Configurator software. Get the latest Configurator version from here . Configurator operates on Microsoft Windows OS and uses prerequisite MS .NET Framework. Make sure you have the correct version installed.
  • Page 9 GNSS Maintenance and etc. FMM920 has one user editable profile, which can be loaded and saved to the device. After any modification of configuration the changes need to be saved to device using Save to device button. Main buttons offer following functionality: Load from device –...
  • Page 10: Quick Sms Configuration

    2003 – APN password (if there are no APN password, empty field should be left) SERVER SETTINGS: 2004 – Domain 2005 – Port 2006 – Data sending protocol (0 – TCP, 1 – UDP) Quick Manual v1.0 // FMM920 Telematics...
  • Page 11 120 seconds is off After successful SMS configuration, FMM920 device will synchronize time and update records to configured server. Time intervals and default I/O elements can be changed by using Teltonika Configurator SMS parameters  wiki.teltonika-gps.com/view/Teltonika_Configurator...
  • Page 12: Mounting Recommendations

    If the wire is fixed with the bolt, the loop must be connected to the end of the wire. • For better contact scrub paint from the spot where loop is going to be connected. Quick Manual v1.0 // FMM920 Telematics...
  • Page 13: Basic Characteristics

    Modem activity 2G bands GPRS: B2/B3/B5/B8 short time Cat M1: B1/B2/B3/B4/B5/B8/ B12/ Device is not working or Device is in B13/B18/B19/ B20/B25/B26/B27/ boot mode B28/B66/B85 4G bands Cat NB2: B1/B2/B3/B4/B5/B8/ B12/ B13/B18/B19/ B20/B25/B28/B66/ B71/B85 Quick Manual v1.0 // FMM920 Telematics...
  • Page 14 At 12V < 12 mA (GNSS Sleep) Dimensions 79 x 43 x 12 mm (L x W x H) At 12V < 28 mA (Nominal) Weight 54 g Bluetooth teltonika.lt/product/bluetooth-sensor 1  Specification 4.0 + LE wiki.teltonika.lt/view/How_to_connect_OBD_II_Blue-tooth_Dongle_to_ 2  FMB_device Quick Manual v1.0 // FMM920 Telematics...
  • Page 15 5  detection, Jamming detection,  wiki.teltonika-gps.com/view/FOTA GNSS Fuel Counter, DOUT Control Scenarios Call, Excessive Idling detection,  wiki.teltonika-gps.com/view/Teltonika_Configurator Unplug detection, Towing detection, Crash detection, Auto Geofence,  wiki.teltonika-gps.com/view/FMBT_Mobile_application Manual Geofence, Trip wiki.teltonika-gps.com/view/How_to_connect_OBD_II_Bluetooth_ 9  Dongle_to_FMB_device wiki.teltonika-gps.com/view/FMM920_Features_settings 3  Quick Manual v1.0 // FMM920 Telematics...
  • Page 16: Electrical Characteristics

    30V Drain current Additional error on 30V (Digital Output ON, Recommended Operating Conditions) Static Drain-Source resistance (Digital mΩ Output ON) Digital input Input resistance (DIN1) kΩ Input voltage (Recommended Operating Conditions) Input Voltage threshold Quick Manual v1.0 // FMM920 Telematics...
  • Page 17: Safety Information

    DO NOT touch the device before unplugging the powe supply. All wireless data transferring devices produce This message contains information on how to operate FMM920 interference that may affect other devices which are safely. By following these requirements and recommendations, placed nearby.
  • Page 18: Certification And Approvals

    Full User‘s Manual version can be found in mixed with general household waste. Wiki 1 wiki.teltonika-gps.com/view/FMM920 CHECK ALL CERTIFICATES All newest certificates may be found in our Wiki wiki.teltonika-gps.com/view/FMM920_Certification_%26_Approvals Quick Manual v1.0 // FMM920 Telematics...
  • Page 19: Warranty

    WARRANTY TELTONIKA guarantees its products to be free of any manufacturing defects for a period of 24 months. With additional agreement we can agree on a different warranty period, for more detailed information please contact our sales manager. Contact us teltonika-gps.com/about-us/contacts All batteries carry a reduced 6 month warranty period.
