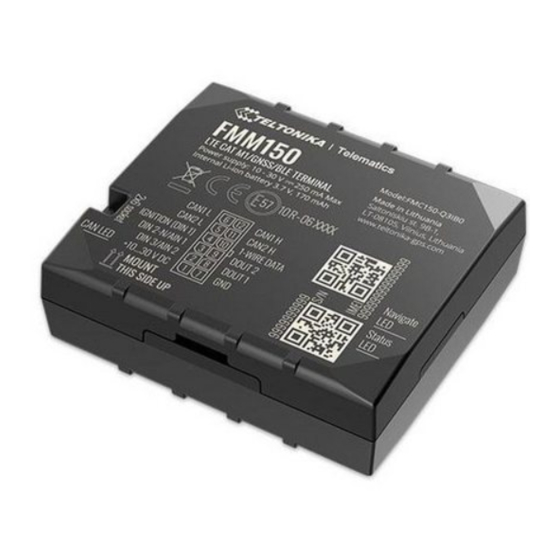

- Page 1 FMM150 Advanced tracker with CAN data reading feature Quick Manual v1.0...
-
Page 2: Table Of Contents
CONTENT Know your device ........................................3 Pinout ............................................4 Wiring scheme ........................................5 Set up your device .........................................6 PC Connection (Windows) ....................................7 How to install USB drivers (Windows) ................................7 Configuration (Windows) ......................................8 Quick SMS configuration ....................................10 Mounting recommendations .................................... 12 Basic characteristics ......................................13 LED indications ........................................ -
Page 3: Know Your Device
KNOW YOUR DEVICE TOP VIEW BOTTOM VIEW (WITHOUT COVER) TOP VIEW (WITHOUT COVER) NAVIGATE MICRO SOCKET STATUS MICRO SIM BATTERY SLOT SOCKET Quick Manual v1.0 // FMM150 Telematics... -
Page 4: Pinout
PINOUT Pin number Pin name Description VCC (10-30) V Power supply (+10-30 DC (+) V DC). Analog input, channel 2. Input range: 0-30 DIN 3 / AIN 2 V DC / Digital input, channel 3. Digital input, channel 2 CAN1L CAN1H / Analog input, channel DIN2-N / AIN1... -
Page 5: Wiring Scheme
WIRING SCHEME IGNITION CAN BUS DETECTION ALARM BUTTON DIN2 MULTIPLE AIN2 TEMPERATURE CAN1L CAN1H SENSORS IBUTTON RELAY CAN2L CAN2H DIN1 1WIRE DATA DIN2-N/AIN1 DOUT2 DIN3/AIN2 DOUT1 FUEL GAUGE +10...30 V DC BUZZER LED LIGHTS ANALOG POWER SUPPLY STARTER LLS SENSOR DOOR SENSOR 10 - 30V DC Quick Manual v1.0 // FMM150... -
Page 6: Set Up Your Device
Wiki in place where it does not attach device cover back. from both sides. how to enter it later in obstruct other components. Teltonika Configurator Make sure that Micro- SIM card cut-off corner is pointing forward to slot. -
Page 7: Pc Connection (Windows)
> Bluetooth. Choose your device named – “FMM150_last_7_imei_digits”, without LE in the end. Enter default password 5555, press Connect and then select Done. You are now ready to use the device on your computer. wiki.teltonika-gps.com/view/FMM150_LED_status 1 Page 7, "How to install USB drivers"... -
Page 8: Configuration (Windows)
CONFIGURATION (WINDOWS) At first FMM150 device will have default factory settings set. These settings should be changed according to the users needs. Main configuration can be performed via Teltonika Configurator software. Get the latest Configurator version from here . Configurator operates on Microsoft Windows OS and uses prerequisite MS .NET Framework. - Page 9 Data Acquisition – where data acquiring parameters can be configured. More details about FMM150 configuration using Configurator can be found in our Wiki wiki.teltonika-gps.com/view/FMM150_Status_info wiki.teltonika-gps.com/view/FMM150_Status_info#GNSS_Info wiki.teltonika-gps.com/view/FMM1501_Status_info#GSM_Info wiki.teltonika-gps.com/view/FMM150_Status_info#I.2FO_Info wiki.teltonika-gps.com/view/FMM150_Status_info#Maintenance After connection to Configurator Status window will be wiki.teltonika-gps.com/index.php?title=FMM150_GPRS_settings displayed.
-
Page 10: Quick Sms Configuration
QUICK SMS CONFIGURATION Default configuration has optimal parameters present to ensure best performance of track quality and data usage. Quickly set up your device by sending this SMS command to it: « setparam 2001:APN;2002:APN_username;2003:APN_password;2004:Domain;2005:Port;2006:0» Note: Before SMS text, two space symbols should be inserted. GPRS SETTINGS: 2001 –... - Page 11 After successful SMS configuration, FMM150 device will synchronize time and update records to configured server. Time intervals and default I/O elements can be changed by using Teltonika Configurator SMS parameters wiki.teltonika-gps.com/view/Teltonika_Configurator wiki.teltonika-gps.com/view/Template:FMB_Device_Family_Parameter_list Quick Manual v1.0 // FMM150...
-
Page 12: Mounting Recommendations
MOUNTING RECOMMENDATIONS CONNECTING WIRES • Wires should be fastened to the other wires or non-moving parts. Try to avoid heat emitting and moving objects near the wires. • The connections should not be seen very clearly. If factory isolation was removed while connecting wires, it should be applied again. -
Page 13: Basic Characteristics
GNSS is turned off because: Device is not working or Device is in Module sleep mode FMM150-Q3IB0: Quectel BG95-M3 Blinking fast Name Device firmware is being flashed with Teltonika TM2500 constantly Technology GSM/GPRS/GNSS/BLUETOOTH STATUS LED INDICATIONS GNSS Behaviour Meaning Blinking every... - Page 14 10-30 V DC with overvoltage Input voltage range protection CAN interfaces 170 mAh Li-Ion battery 3.7 V (0.63 Back-up battery 1-Wire 1 (1-Wire data) Internal fuse 3 A, 125 V wiki.teltonika-gps.com/view/FMM150_Sleep_modes#GPS_Sleep_mode teltonika.lt/product/bluetooth-sensor/ 2 wiki.teltonika.lt/view/How_to_connect_Blue-tooth_Hands_Free_adapter_ 3 to_FMB_device Quick Manual v1.0 // FMM150 Telematics...
- Page 15 GNSS antenna Internal High Gain Ingress Protection IP41 Rating GSM antenna Internal High Gain Battery charge 0 °C to +45 °C temperature 2.0 Micro-USB -20 °C to +45 °C for 1 month LED indication 3 status LED lights Battery storage temperature -20 °C to +35 °C for 6 months Micro-SIM + eSIM...
- Page 16 Auto Geofence, Manual Geofence, Trip Sleep, Online Deep Sleep, Sleep modes Deep Sleep, Ultra Deep Sleep FOTA Web FOTA Teltonika Configuration and Configurator (USB, Bluetooth), firmware update FMBT mobile application (Configuration) wiki.teltonika-gps.com/view/FMM150_Accelerometer_Features_settings 4 wiki.teltonika-gps.com/view/FMM150_Sleep_modes 5 wiki.teltonika.lt/view/FOTA_WEB 6 wiki.teltonika.lt/view/FOTA 7 ...
-
Page 17: Electrical Characteristics
ELECTRICAL CHARACTERISTICS Input resistance (DIN3) kΩ Characteristic description Value Characteristic description Value Supply voltage Min. Typ. Max. Unit Supply voltage Min. Typ. Max. Unit Input voltage Supply Voltage Supply (Recommended (Recommended voltage Operating Conditions) Operating Conditions) Input Voltage threshold Digital output (open drain grade) (DIN1) Drain current (Digital Input Voltage threshold... - Page 18 Input resistance 38.45 kΩ Input voltage Supply (Recommended voltage Operating Conditions) Input voltage threshold Characteristic description Value Supply voltage Min. Typ. Max. Unit Sink current CAN Interface Internal terminal resistors CAN bus (no Ω internal termination resistors) Differential input kΩ resistance Recessive output voltage...
-
Page 19: Safety Information
SAFETY INFORMATION Do not disassemble the device. If the device is damaged, the power supply cables are not isolated or the isolation is damaged, DO NOT touch the device before unplugging the power supply. This message contains information on how to operate FMM150 safely. -
Page 20: Certification And Approvals
User‘s Manual before your start using the electronic and electric equipment should not be device. Full User‘s Manual version can be found in mixed with general household waste. Wiki 1 wiki.teltonika-gps.com/index.php?title=FMM150 CHECK ALL CERTIFICATES All newest certificates may be found in our Wiki wiki.teltonika-gps.com/view/FMM150_Certification_%26_Approvals Quick Manual v1.0 // FMM150... -
Page 21: Warranty
WARRANTY TELTONIKA guarantees its products to be free of any manufacturing defects for a period of 24 months. With additional agreement we can agree on a different warranty period, for more detailed information please contact our sales manager. Contact us teltonika-gps.com/about-us/contacts All batteries carry a reduced 6 month warranty period.
