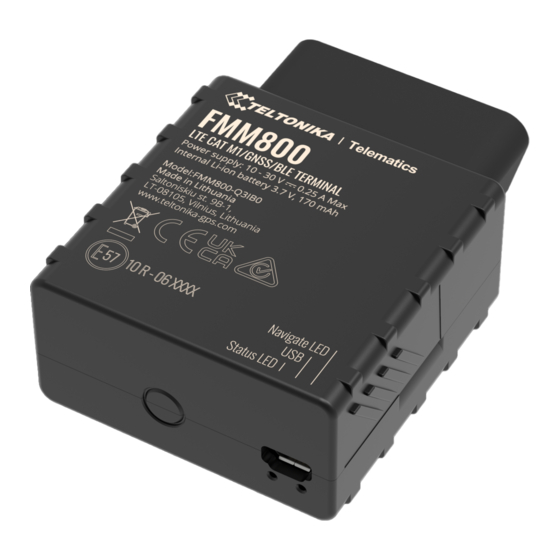

Advanced plug and track real-time tracking terminal with gnss, gsm and bluetooth connectivity
Hide thumbs Also See for FMM800:
1
2
3
4
5
6
Table of Contents

Advertisement

Quick Links

Download this manual
https://wiki.teltonika-gps.com/view/FMM800_First_Start
FMM800 First Start
Main Page
>
Fast & Easy Trackers
Advanced Plug and Track real-time tracking terminal with GNSS, GSM and Bluetooth
connectivity
Contents

1 How to insert Micro-SIM card and connect battery

How to insert Micro-SIM card and connect battery
1.
Gently remove FMM800 cover using plastic pry tool from both sides.
Insert Micro-SIM card as shown with PIN request disabled or read
2.
enter it later in Configurator. Make sure that Micro-SIM card cut-off corner is pointing
forward to slot.
3.
Connect battery as shown to device. Position the battery in place where it does not obstruct
other components.
4.
Attach device cover back.
Device is ready to be connected.
Micro-SIM card insertion/removal must be performed when device is powered off –
external voltage and battery are disconnected. Otherwise Micro-SIM card might be
damaged or device will not detect it.
>
FMM800
> FMM800 First Start
Security info
how to

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FMM800 and is the answer not in the manual?

Questions and answers

Related Manuals for Teltonika FMM800

Summary of Contents for Teltonika FMM800

  • Page 1 2.4 Quick SMS configuration 3 Safety information 3.1 Precautions How to insert Micro-SIM card and connect battery Gently remove FMM800 cover using plastic pry tool from both sides. Insert Micro-SIM card as shown with PIN request disabled or read Security info how to enter it later in Configurator.
  • Page 2 Setup will continue installing the driver and eventually the confirmation window will appear. Click Finish to complete the setup. Configuration (Windows) At first FMM800 device will have default factory settings set. These settings should be changed according to the user's needs. Teltonika Configurator Main configuration can be performed via software.
  • Page 3 • Windows MS .NET 32 and www.microsoft.com Vista Framework 64 bit • Windows 5.0.17 • Windows • Windows Downloaded Configurator will be in compressed archive. Extract it and launch Configurator.exe. After launch software language can be changed by clicking in the right bottom corner: Configuration process begins by pressing on connected device: After connection to Configurator Status window will be displayed:...
  • Page 4 Maintenance and etc. FMM800 has one user editable profile, which can be loaded and saved to the device. After any modification of configuration the changes need to be saved to device using Save to device button. Main buttons offer following functionality: Load from device –...
  • Page 5 If device has made a record it is sent to the server every 120 seconds After successful SMS configuration, FMM800 device will synchronize time and update records to configured server. Time intervals and default I/O elements can be changed by using Teltonika Configurator parameters.
  • Page 6 The device is susceptible to water and humidity. Installation and/or handling during a lightning storm is prohibited. Teltonika is not responsible for any harm caused by wrong cables used for connection between PC and FMM800. WARNING! Do not use FMM800 device if it distracts driver or causes inconvenience due to OBD II placement.
