Read Before Operation

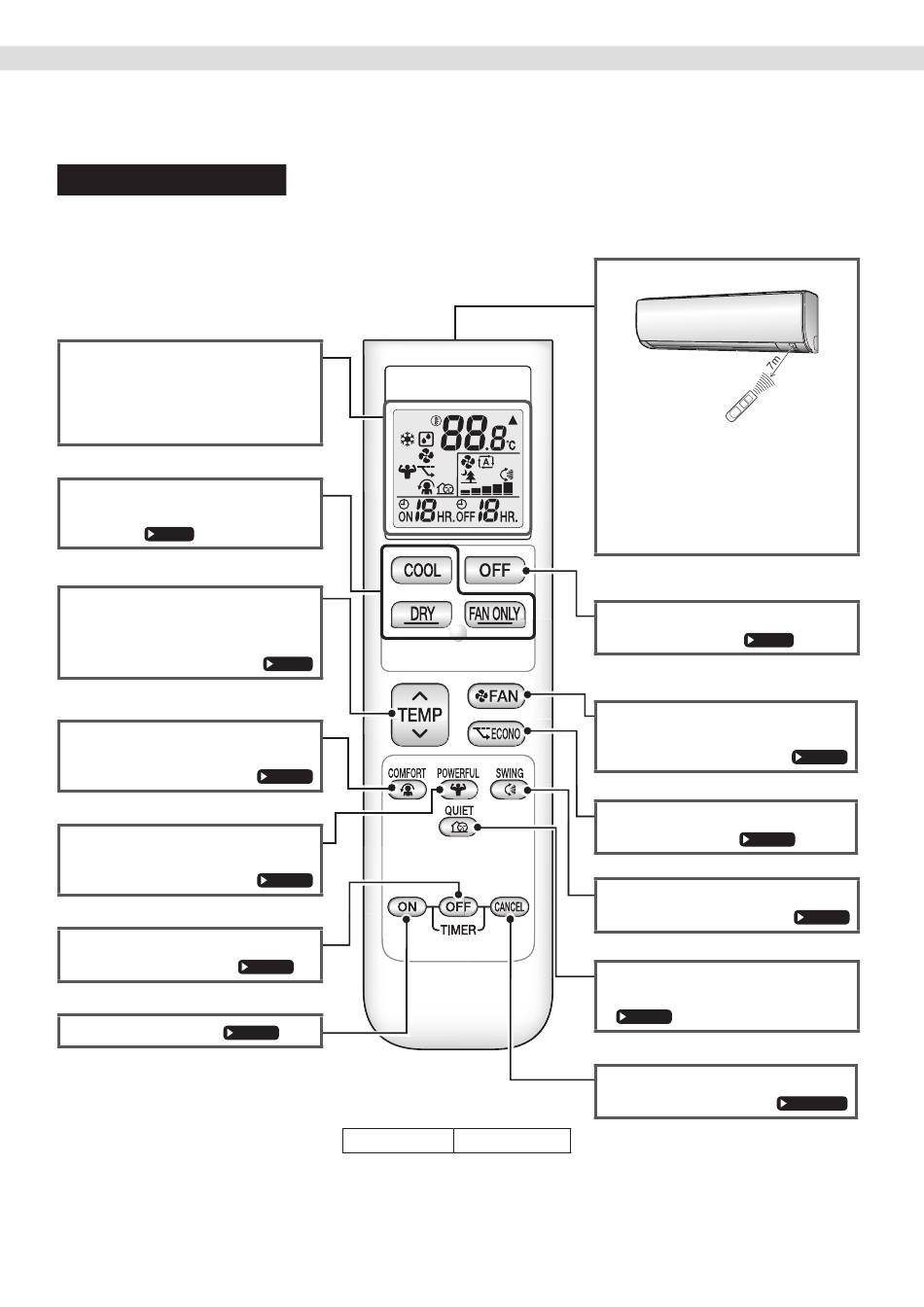

Names of Parts
Remote Controller
Display (LCD)
• Displays the current settings.
(In this illustration, each section is
shown with its displays on for the
purpose of explanation.)
Direct operation buttons
• Starts the COOL, DRY, or FAN ONLY
operation.
Page 9
TEMPERATURE
adjustment button
• Changes the temperature setting.
COMFORT button
• COMFORT AIRFLOW operation.
POWERFUL button
• POWERFUL operation.
OFF TIMER button
(NIGHT SET mode)
ON TIMER button
7
Page 9
Page 12
Page 13
Page 17
Page 16
Model name ARC480A49
Signal transmitter
• To use the remote controller, aim the
transmitter at the indoor unit. If there is
anything blocking the signals between
the unit and the remote controller, such
as a curtain, the unit may not operate.
• The maximum transmission distance
is about 7m.
OFF button
• Stops the operation.
Page 9
FAN setting button
• Selects the airfl ow rate setting.
ECONO button
• ECONO Operation.
Page 14
SWING button
• Adjusts the airfl ow direction.
QUIET button
• OUTDOOR UNIT QUIET operation.
Page 15
TIMER CANCEL button
• Cancels the timer setting.
Page 10
Page 11
Page 16,17
