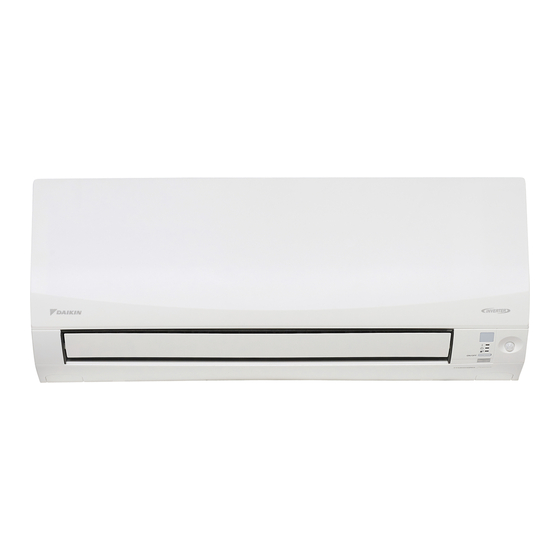

- Page 1 DAIKIN ROOM AIR CONDITIONER OPERATION MANUAL MODELS FTXF25QVMA FTXF35QVMA FTXF50QVMA...
- Page 2 Feature For your comfort and energy saving INTELLIGENT EYE The INTELLIGENT EYE sensor detects the human movement in a room. If no one is in the room more than 20 minutes, the operation automatically changes to energy saving operation. Page 14 Other functions COMFORT AIRFLOW OUTDOOR UNIT QUIET...
- Page 3 Contents Read before Operation Safety Precautions .......... Name of Parts ..........Preparation before Operation ......Operation AUTO · DRY · COOL · HEAT. FAN Operation ........Adjusting the ow Direction ... Adjusting the Airflow Rate ....COMFORT AIRFLOW Operation..INTELLIGENT EYE Operation... POWERFUL Operation .....
- Page 4 Safety Precautions Read the precautions in this manual carefully before operating the unit. Keep this manual where the user can easily The precautions described herein are as WARNING and CAUTION. They both contain important information regarding safety. Be sure to observe all precautions without fail. WARNING CAUTION Failure to follow these instructions properly may result in...
- Page 5 CAUTION Do not block the air inlets nor outlets. Impaired may result in performance or trouble. Do not sit on the outdoor unit, put things on the unit, or pull the unit. Doing so may cause accidents, such as falling or toppling down, thus resulting in injury, product malfunctioning, or product damage.
- Page 6 Name of Parts Indoor Unit Titanium apatite deodorizing filter Air inlet Front panel Air Filter Panel tab INTELLIGENT EYE sensor Detects the movements of people Horizontal blade and automatically switches Air outlet (Flap) : Page 11 between normal operation and energy saving operation. Page 14 Vertical blades (Louvers) Room temperature sensor...
- Page 7 Open the front panel Titanium apatite deodorizing filter Air filter Outdoor Unit For 25/35 class Outdoor temperature Air inlet sensor (back) (back and side) Refrigerant piping and inter-unit wiring Model name plate Air outlet Earth terminal (inside) Drain hose For 50 class Outdoor temperature Air inlet sensor (back)
- Page 8 Name of Parts Remote Controller Signal transmitter Display (LCD) It displays the current settings. (In this illustration, each section is Receiver shown with its displays on for the purpose of explanation.) To use the remote controller, aim the transmitter at the indoor unit. If there is anything to block signals between the unit and the remote controller, OFF button...
- Page 9 Preparation before Operation To set the batteries Slide the back cover to take it off. Set two dry batteries AAA.LR03 (alkaline). Set the back cover as before. To fix the remote controller holder on the wall Choose a place from where the signals can reach the unit.
- Page 10 AUTO DRY COOL HEAT FAN Operation The air conditioner operates in the user selected operation mode. To start operation Press button of your desired operation mode. AUTO operation Press button. “ ” appears on the LCD. COOL operation Press button. “ ”...
- Page 11 To change the temperature setting Press • The displayed items on the LCD will change whenever either one of the buttons is pressed. COOL operation HEAT operation AUTO operation DRY or FAN ONLY operation 18.0-32.0°C 10.0-30.0°C 18.0-30.0°C The temperature setting is Press to raise the temperature and press to lower the...
- Page 12 Adjusting the Airflow Direction You can adjust the airflow direction to increase your comfort. To start auto swing Upper and lower air ow direction Press • “ ” appears on the LCD. • The flaps (horizontal blades) will begin to swing. To set the aps at desired position •...
- Page 13 Adjusting the Airflow Rate To adjust the air ow rate setting Press...
- Page 14 COMFORT AIRFLOW Operation The air direction and flow rate are adjusted so that the air will not blow directly at people in the room. ■ o start COMFORT AIRFLOW operation Press “ ” is displayed on the LCD. • COOL and DRY HEAT operation FAN ONLY operation operation...
- Page 15 INTELLIGENT EYE Operation INTELLIGENT EYE operation “INTELLIGENT EYE” is the infrared sensor which detects the human movement. If no one is in the room for more than 20 minutes, the operation automatically changes to energy saving operation. The INTELLIGENT EYE sensor according to the following situations. [Example] When somebody is in the sensing area...
- Page 16 INTELLIGENT EYE Operation To start intelligent eye operation Press ” ” To cancel operation Press again. ” NOTE Notes on INTELLIGENT EYE operation 55° 55° 90° ey are a ay speed passers y as passers y CAUTION keep ’s...
- Page 17 POWERFUL Operation POWERFUL operation quickly maximizes the cooling (heating) effect in any operation modes. You can get the maximum capacity. ■ To start POWERFUL operation Press during operation. • POWERFUL operation ends in 20 minutes. Then the system automatically operates again with the previous settings which were used before POWERFUL operation.
- Page 18 ECONO Operation ECONO ■ ECONO operation ECONO operation is a function which enables efficient operation by limiting the maximum power consumption value. This function is useful for cases in which attention should be paid to ensure a circuit breaker will not trip when the product runs alongside other appliances.
- Page 19 ■ To start ECONO operation Press EC N • “ ” appears on the LCD. ■ To cancel ECONO operation Press again. EC N • “ ” disappears from the LCD. NOTE ■ Notes on ECONO operation • ECONO operation can only be set when the unit is running. Pressing causes the settings to be canceled, and “...
- Page 20 OUTDOOR UNIT QUIET Operation ■ OUTDOOR UNIT QUIET operation OUTDOOR UNIT QUIET operation lowers the noise level of the outdoor unit by changing the frequency and fan speed on the outdoor unit. This function is convenient during the night. ■ To start operation Press •...
- Page 21 OFF TIMER Operation Timer functions are useful for automatically switching the air conditioner on or off at night or in the morning. You can also use OFF TIMER and ON TIMER in combination. To use OFF TIMER operation Press • “ ”...
- Page 22 ON TIMER Operation To use ON TIMER operation Press 2. Press until the time setting reaches the point you prefer. To cancel ON TIMER operation Press To combine ON TIMER and OFF TIMER NOTE In the following cases, set the timer again.
- Page 23 Care and Cleaning Quick reference How to open / close the front panel Hold the front panel by the panel tabs on the both sides and open it. Press the front panel at both sides and the center to close it. Cleaning parts Front panel Wipe it with a soft damp cloth.
- Page 24 Front panel Remove the front panel. Clean the front panel. Open the front panel. Wipe it with a soft cloth soaked in water. Slide the front panel to either the left or right and Only neutral detergent may be used. pulling it toward you.
- Page 25 ERROR: undefined OFFENDING COMMAND: 1.#NAN STACK:...
