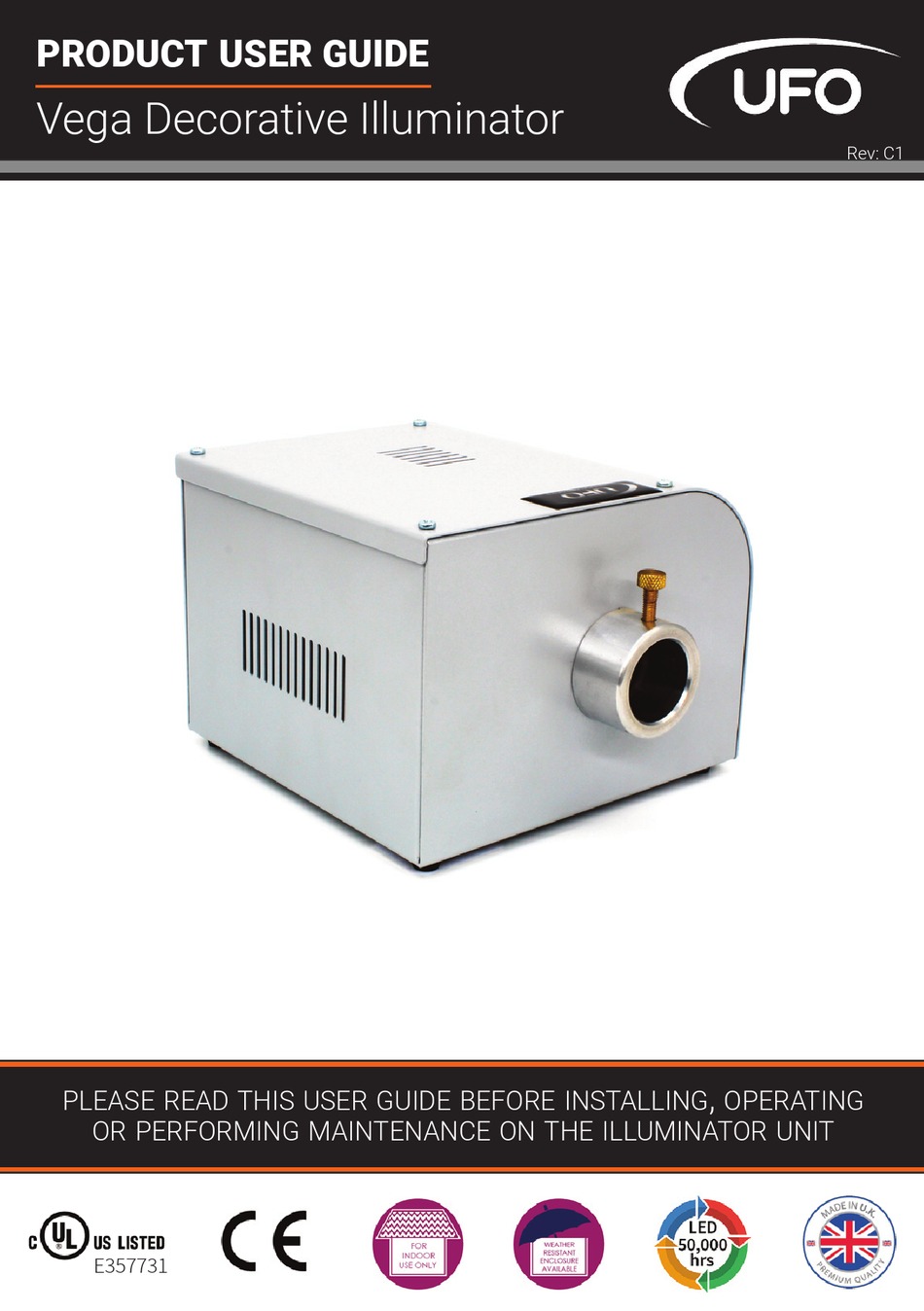

- Page 1 PRODUCT USER GUIDE Vega Decorative Illuminator Rev: C1 PLEASE READ THIS USER GUIDE BEFORE INSTALLING OPERATING OR PERFORMING MAINTENANCE ON THE ILLUMINATOR UNIT E357731...
- Page 2 UFO Vega CM / UFO Vega TM UFO Vega MCM / UFO Vega MTM UFO Vega CDMX / UFO Vega TDMX UFO Vega C 0-10V / UFO Vega T 0-10V IMPORTANT This product must be installed in accordance with the applicable installation code, by a person familiar with the construction and operation of the product, and the hazards involved.
-
Page 3: Installation
The illuminator is powered from a 24V DC PSU/Constant Voltage SELV LED driver. The driver caters for UK/European/other mains supplies using the relevant power cord supplied. VEGA DMX / 0-10 V VEGA MCM / MTM VEGA CM / TM CONNECTION... - Page 4 TA (male). The pin out details for the plugs are shown below. Either socket may be used as DMX in or DMX out. Note: UFO can supply converters for these illuminators to allow them to be interfaced to standard 3 pin XLR connectors or RJ45 connectors.
- Page 5 VEGA C 0-10 V AND T 0-10 V MODELS ONLY CONNECTION The 0-10V control type needed in the Vega illuminator is current source, not current sink. The unit relies on the control unit to supply the 0-10V control voltage. There are three connections required - the fiber port, the mains supply cable and the 0-10V control cable.
-
Page 6: Operation
VEGA CM TM AND MTM MODELS ONLY The Vega CM (color wheel) & Vega TM (twinkle wheel) have manual speed control on the decorative motor. On these versions the light output is set to maximum and cannot be dimmed. The Vega MCM & Vega MTM have manual speed control on the decorative motor and also manual dimming control of the LED. - Page 7 OPERATION VEGA CDMX COLOR WHEEL Channel Function Value Description Dimming 0255 From off at 0 to brightest at 255 Color wheel Color 1 (white) variable 059 Color wheel Color 2 (yellow) variable 059 Color wheel Color 3 (green) variable 059...
- Page 8 OPERATION NOTES ON POWERING UP THE VEGA CDMX ILLUMINATOR 1. If internal DIP switch 10 is OFF, the wheel will find its reference point and stop on color 1 (white). 2. If internal DIP switch 10 is ON, the wheel will find its reference point then rotate continuously counter clockwise at 7.5 rpm.
- Page 9 OPERATION VEGA 0-10 V MODELS ONLY OPERATING THE ILLUMINATOR 0-10V Control is available to either control a color wheel (Vega C 0-10V) or control a twinkle wheel (Vega T 0-10V). The values table for 0-10V control is shown below: Function...
-
Page 10: Maintenance
MAINTENANCE MAINTENANCE LOG Date Maintenance Undertaken Note: A record of all maintenance MUST be kept in the table above, indicating what maintenance was undertaken and when. This MUST be dated for warranty purposes. VEGA USER GUIDE... -
Page 11: Troubleshooting
Dip switch no. 10 not switched Remove cover and switch dip switch no. 10 to on indicator is illuminated LED array or drive failure Replace illuminator Note: Please complete relevant troubleshooting procedures before returning the unit to us for further investigation. UFO LIGHTING... - Page 12 No 010v signal at illuminator a DMM set to correct range due to cable or controller fault rectify cable / controller fault Note: please complete relevant troubleshooting procedures before returning the unit to us for further investigation. VEGA USER GUIDE...
-
Page 13: Technical Specification
[specific models only] LED Life 50,000 hours typical 3000°K 82 (typical) / 4000°K 82 (typical) Color Temperature 3000°K or 4000°K Material Aluminium Finish Grey Dimensions (L x W x H) / Weight 160mm x 157mm x 120mm / 1.35kg UFO LIGHTING... - Page 14 NOTES VEGA USER GUIDE...
- Page 15 NOTES UFO LIGHTING...
- Page 16 United Kingdom • United States • Germany • Europe • Universal Fibre Optics Ltd Universal Fiber Optics USA LLC UFO Licht GmbH Home Place Coldstream 1749 Northgate Blvd Andreasstraße 20 TD12 4DT Sarasota FL34234 93059 Regensburg Deutschland +44 (0)1890 883416...
