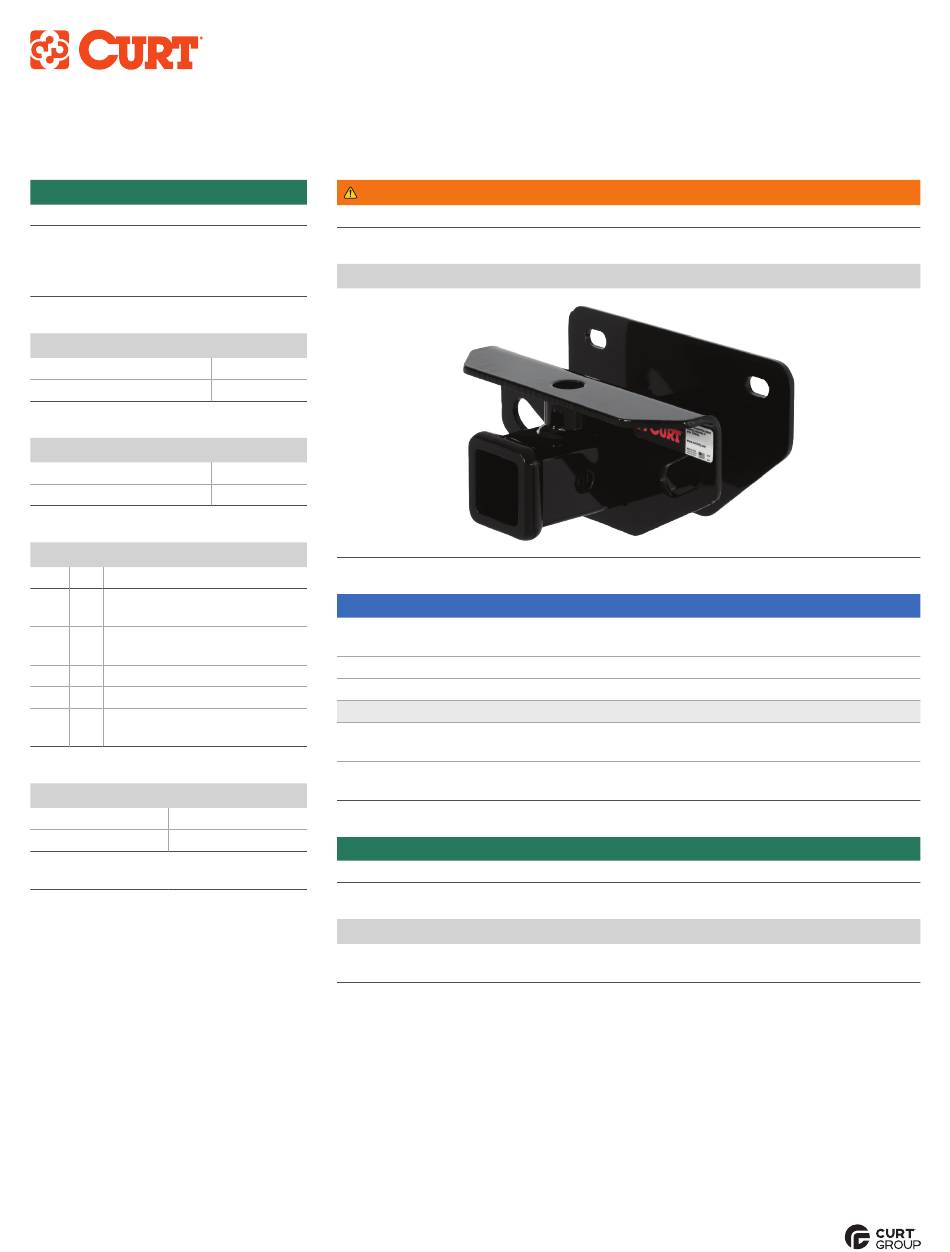

Curt Manufacturing 13333 Installation Manual

INSTALLATION MANUAL

Level of Difficulty

Easy
Installation difficulty levels are based on time
and effort involved and may vary depending on
the installer level of expertise, condition of the
vehicle and proper tools and equipment.

Weight Carrying Capacity

Gross trailer weight (GTW)
Tongue weight (TW)

Weight Distribution Capacity

Weight distribution (WD)
WD tongue weight (WDTW)

Parts List

Item Qty Description
1 2 Carriage bolt,
1/2"-13 x 1-1/2", grade 8
2 2 Square-hole spacer,
1/4" x 1-1/2" x 3"
3 2 Serrated-flange nut, 1/2"-13
4 2 Fishwire, 1/2" x 30"
5 1 Flat-head socket bolt,
3/4"-10 x 3-1/4", grade 8

Tools Required

Ratchet Torque wrench
Socket, 3/4" Hex bit socket, 1/2"
* For a tools reference guide visit
curtmfg.com/trailer-hitch-installation
CURTMFG.COM
• PRODUCT SUPPORT: 877.287.8634

WARNING

Never exceed the vehicle manufacturer's recommended towing capacity.

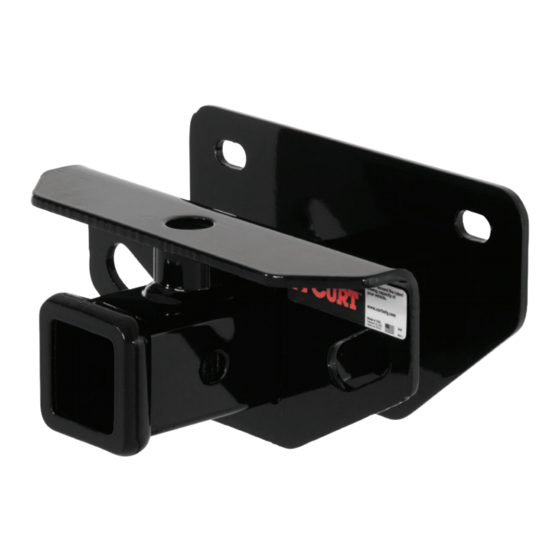

Product Photo
6,000 lbs.
600 lbs.
10,000 lbs.
1,000 lbs.

NOTICE

Visit www.curtmfg.com for a full-color copy of this
instruction manual, as well as helpful videos, guides and much more!
Before you begin installation, read all instructions thoroughly.
Proper tools will improve the quality of installation and reduce the time required.
This installation requires the use of fishwire to install hardware. No drilling is required.
Periodic inspection of the trailer hitch should be performed to ensure all
mounting hardware remains tight and structural components are secure.
To help prevent damage to the product or vehicle, refer to the specified
torque specifications when securing hardware during the installation process.

SAFETY INSTRUCTIONS

Safety glasses should be worn at all times while installing this product.

Product Registration and Warranty

CURT stands behind our products with industry-leading warranties. To get copies of the product
warranties, register your purchase or provide feedback, visit: warranty.curtgroup.com/surveys
• 13333-INS-RA • 05/13/2020 • ECN7022 • PAGE 1
