Curt Manufacturing A25 Installation Instructions

INSTALLATION INSTRUCTIONS
WARNING: NEVER EXCEED YOUR VEHICLE MANUFACTURER'S RECOMMENDED TOWING CAPACITY
FORD OEM COMPATIBLE 5TH WHEEL LEGS
Provide this manual, in its entirety, to the end-user
PARTS LIST
Item# Qty Description
1 2 Leg weldment
2 4 Bolt, locking
3 2 Handle, left
4 2 Handle, right
5 4 Flat washer
6 4 Castle nut
7 4 Puck
8 2 Safety pin, 3/8" x 1 3/4" long
9 4 Cotter pin
WARNINGS
Provide this manual in its entirety to the end-user. Read
and understand instructions before using this product.
Fully instruct and demonstrate the operation of this 5th
wheel hitch to the end user. Include the importance of
observing all warnings contained herein, including warning
labels on 5th wheel hitch mid section. Serious injury or death
may result if the warnings above are not observed.
To avoid serious injury, do not expose hands, body parts
or clothing between the truck and trailer or the truck's bed
sides and trailer. Extreme care should be observed to avoid
serious injury to self, property and observers.
9
3
8
Never exceed the rated towing capacity of your vehicle.
Trailer and contents combined must not exceed tow vehicle,
hitch and/or trailer tow ratings. Exceeding rated capacity
may result in separation. Exceeding rated capacity may
result in damage to 5th wheel hitch, towing vehicle, trailer
and or cause serious injury or death.
Never position yourself or others under the trailer's kingpin
area (danger zone) during coupling and uncoupling. Improperly
coupled trailers can separate and drop without notice.
PAGE 1 • 16017-INS-RB • 1.800.798.0813 • NEED ASSISTANCE?
1
4
6
5
7
2
• CURTMFG.COM

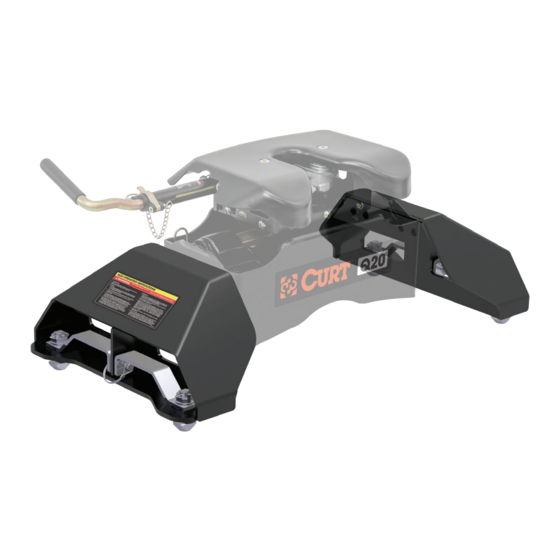

Figure 1
