Single Handle Kitchen Faucet with Sprayer
Model Number:
8.6"
8.1"
2.2"
Features:
KTS13-TB
- Brass and Zinc Alloy Construction
- Single Hole Installation
KTS13-TC
- Drip Free Ceramic Cartridge
KTS13-TO
- Maximum flow rate 2.2 gpm at 60 psi
- 2 Stage Sprayer Head
- Complies with:
20.5"
12.4"
1 1/2" Hole Size
Hose Length 25"
3/8" Compression Fitting

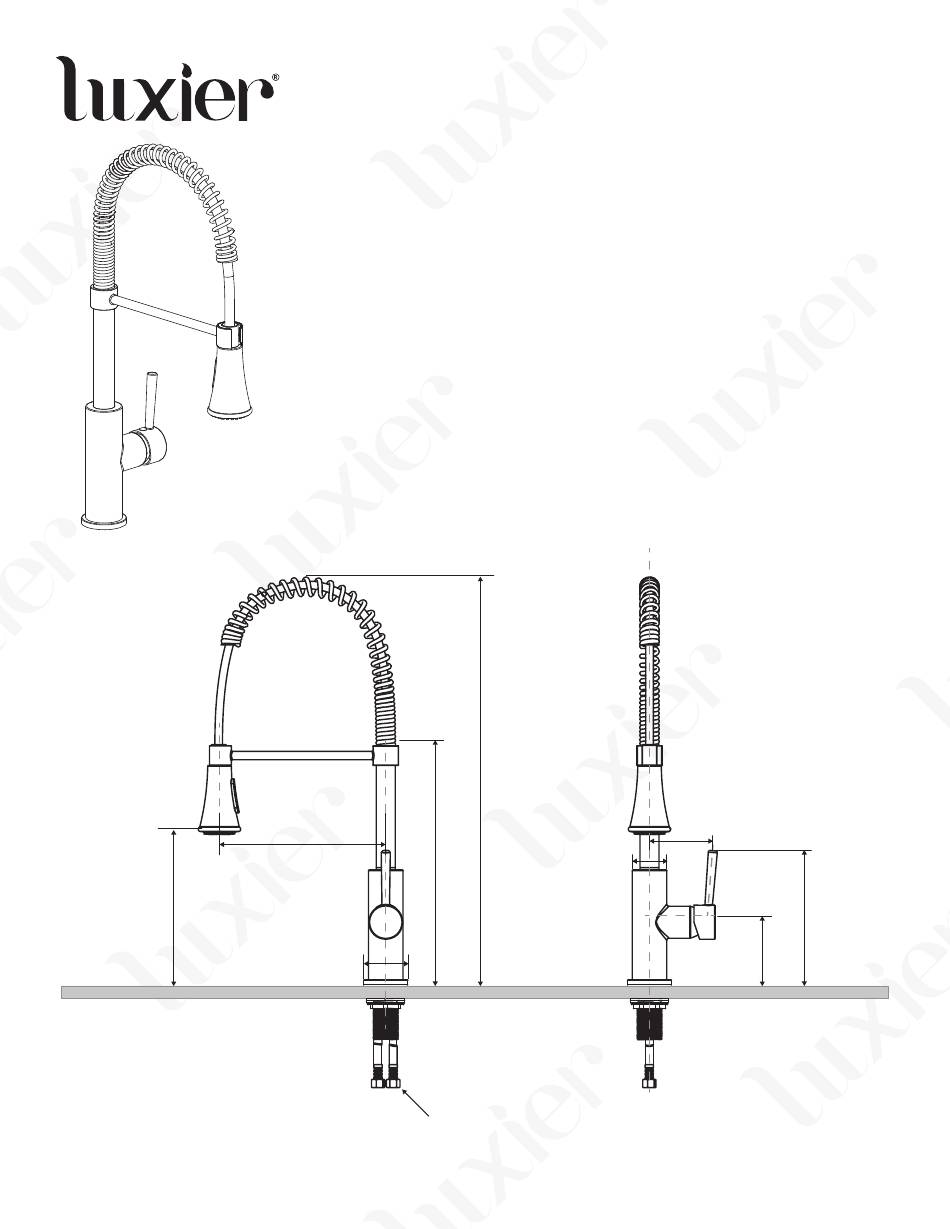

* Drawing not to scale. All Measurements are pproximate.
1
NSF 61-9
ANSI / ASME A112.18.1
cUPC
IAPMO / UPC
CA AB-1953
3.3"
1.8"
3.6"
Max. Deck Thickness 2"
7.3"
Luxier Rev.1.2 09/2016
Advertisement
Related Manuals for Luxier KTS13-TC
Summary of Contents for Luxier KTS13-TC
- Page 1 IAPMO / UPC CA AB-1953 20.5” 3.3” 8.6” 12.4” 1.8” 8.1” 7.3” 3.6” 2.2” Max. Deck Thickness 2” 1 1/2” Hole Size Hose Length 25” 3/8” Compression Fitting * Drawing not to scale. All Measurements are pproximate. Luxier Rev.1.2 09/2016...
- Page 2 (2) issue a refund of the purchase price paid for the product (Valid within 30 days from the date of purchase); or (3) issue a credit to be applied against the purchase of a new Luxier product. Shipping/delivery charges may apply and are in Luxier USA’s sole discretion.
- Page 3 • When installing your new faucet, first hand tighten the water supply hoses then use a wrench to give the compression nuts an additional (1/4) turn. Do not over tighten the compression nuts as it will reduce the integrity of the sealed connection. Luxier Rev.1.2 09/2016...
- Page 4 11. Spring 12. Swing Arm 13. Neck 14. O-ring 15. Locking Ring 16. Ring 17. Body 18. Flange 19. EVA Washer 20. Shank 21. Steel Washer 22. Mounting Nut 23. Supply Hose 24. Check Valve 25. Rubber Gasket Luxier Rev.1.2 09/2016...
