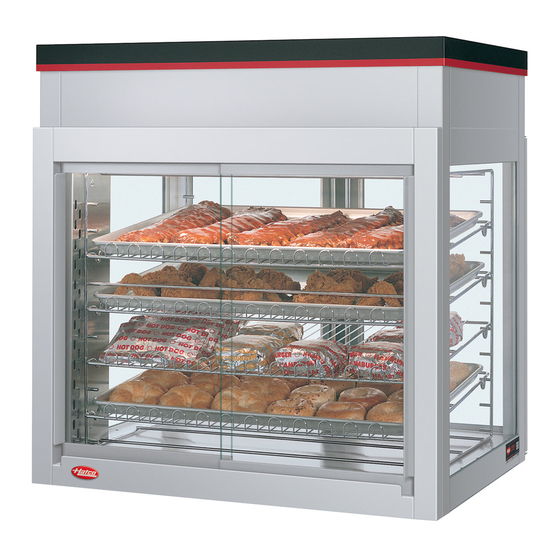

Hatco FLAV-R-SAVOR WFST-1X Installation & Operating Manual
Large capacity merchandising cabinets wfst series
Hide thumbs
Also See for FLAV-R-SAVOR WFST-1X:
- Installation and operating manual (32 pages) ,
- Brochure & specs (6 pages) ,
- Specifications (2 pages)
Table of Contents
Advertisement
Quick Links
Large Capacity Merchandising Cabinets
This manual contains important safety information
concerning the maintenance, use and operation of
this product. Failure to follow the instructions
contained in this manual may result in serious injury.
If you are unable to understand the contents of this
manual, please bring it to the attention of your
supervisor. Do not operate this equipment unless you
have read and understood the contents of this
manual.
FLAV-R-SAVOR
WFST Series
Installation &
Operating Manual
I & W #07.05.058.00
Este manual contiene importante información sobre
seguridad concerniente al mantenimiento, uso y
operación de este producto. Cualquier falla en el
seguimiento de las instrucciones contenidas en este
manual puede resultar en un serio daño. Si usted no
puede entender el contenido de este manual por
favor pregunte a su supervisor. No opere este equipo
al menos que haya leído y comprendido el contenido
de este manual.
®
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Hatco FLAV-R-SAVOR WFST-1X
Summary of Contents for Hatco FLAV-R-SAVOR WFST-1X
- Page 1 FLAV-R-SAVOR Large Capacity Merchandising Cabinets This manual contains important safety information concerning the maintenance, use and operation of this product. Failure to follow the instructions contained in this manual may result in serious injury. If you are unable to understand the contents of this manual, please bring it to the attention of your supervisor.
-
Page 2: Table Of Contents
Flav-R-Savor Large Capacity Merchandising Cabinet ® in the spaces below. Please have this information available when calling Hatco for service assistance. Model No. Serial No. Voltage Date of Purchase INTRODUCTION... -
Page 3: Safety Instructions
The revolving rack automatically pauses when the door is opened. MODEL WFST-1X The WFST-1X is similar to the WFST-1R, but features a 4-shelf multi-purpose stationary rack instead of the rotating display. See Figure 2. The rack can hold standard bun pans 18" x 26" (46 x 66 cm) or wrapped food products. -
Page 4: Electrical Specifications
Facing controls, left-hand side panel, bottom right corner. DIMENSIONS The Hatco Flav-R-Savor large capacity display cabinet is 32" wide and 32-3/4" high facing the control panel and is 22-3/4" deep (81 x 83 x 58 cm). On standard doors the opening is 28"... -
Page 5: Installation
The Flav-R-Savor Large Capacity Holding and Display Cabinets are shipped with most components installed and ready for operation. The following installation instructions must be performed before plugging in and operating the cabinet. DOOR HANDLES Install door handles using the screws supplied. See Figure 5. -
Page 6: Location
Full Size 18” x 26” (46 x 66 cm) and half-size (18” x 13” (46 x 33 cm) bun pans are available for the stationary rack on model WFST-1X and WFST-2X. DISPLAY RACKS A chrome-plated rotisserie-style rack and a chrome- plated 4-shelf multi-purpose stationary rack are available to “customize”... -
Page 7: Solid Tray Inserts
Rotisserie-Style Rack* Maximum Product Height: 5” (13 cm) *Rack designed for use with motorized display. SOLID TRAY INSERTS A set of five stainless steel tray inserts is available for the rotisserie-style rack that fits within the wire baskets, ideal for slabs of ribs. MERCHANDISING DECAL SIGNS/GRAPHICS Self-adhesive merchandising decal signs and graphics... -
Page 8: Food Holding Guide
Type of Food Bagels Biscuits Chicken - Parts Chicken - Whole Croissants Fish Frankfurters Fruit Pies Hot Dogs (Appetizers) Onion Rings Pizza Pretzels Ribs Wrapped Sandwiches NOTE: All times and settings are recommendations only and may vary depending on product preparation, cooking time and internal food temperature. OPERATION 1. -
Page 9: Cleaning
The reservoir capacity permits uninterrupted operation for approximately 3 to 6 hours, depending on the settings and how frequently the door is opened. When the red low water indicator lamp is lit, add water to the reservoir. WARNING: To prevent electric shock, always unplug the Flav-R- Savor Large Capacity Holding and Display Cabinet before any cleaning or maintenance. -
Page 10: Maintenance
Unscrew the light bulb from the unit and replace it with a new specially coated incandescent bulb. Hatco shatter-resistant light bulbs meet N.S.F. standards for food holding and display areas. Use Hatco part #02.30.043.00. WARNING: Only bulbs which meet or exceed N.S.F. standards, specifically designed for food holding areas must be used. -
Page 11: Warranty
Hatco reserves the right to accept or reject any such claim in whole or in part. Hatco will not accept the return of any Product without prior written approval from Hatco, and all such approved returns shall be made at Buyer’s sole expense. - Page 12 HATCO AUTHORIZED PARTS DISTRIBUTORS ALABAMA Jones McLeod Appl. Svc. Birmingham 205-251-0159 ARIZONA Auth. Comm. Food Equip. Phoenix 602-234-2443 Byassee Equipment Co. Phoenix 602-252-0402 CALIFORNIA Industrial Electric Huntington Beach 714-379-7100 Chapman Appl. Service San Diego 619-298-7106 P & D Appliance S. San Francisco...
