humidified Impulse Display Cabinets
Installation and Operating Manual
Do not operate this equipment unless you have
read and understood the contents of this manual!
Failure to follow the instructions contained in this
manual may result in serious injury or death. This
manual contains important safety information
concerning the maintenance, use, and operation
of this product. If you're unable to understand the
contents of this manual, please bring it to the
attention of your supervisor. Keep this manual in
a safe location for future reference.
FLAV-R-FResh
FDWD series
I&W #07.05.177.00
Register your unit online!
See IMPORTANT OWNER INFORMATION
section for details.
®
No opere este equipo al menos que haya leído y
comprendido el contenido de este manual!
Cualquier falla en el seguimiento de las
instrucciones contenidas en este manual puede
resultar en un serio lesión o muerte. este manual
contiene importante información sobre seguridad
concerniente al mantenimiento, uso y operación
de este producto. si usted no puede entender el
contenido de este manual por favor pregunte a su
supervisor. Almacenar este manual en una
localización segura para la referencia futura.
© 2010 Hatco Corporation
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Hatco FLAV-R-FResh FDWD-12-2X
Summary of Contents for Hatco FLAV-R-FResh FDWD-12-2X
- Page 1 Keep this manual in supervisor. Almacenar este manual en una a safe location for future reference. localización segura para la referencia futura. © 2010 Hatco Corporation...
-
Page 2: Table Of Contents
(specification Hours: Central Standard Time (C.S.T.) label located on the ceiling sheet inside of the unit). Please (Summer Hours: June to September – have this information available when calling Hatco for service 8:00 to 5:00 C.S.T. assistance. -
Page 3: Important Safety Information
WARNING WARNING eLeCTRIC shOCK hAzARD: hatco Corporation is not responsible for the actual food • Plug unit into a properly grounded electrical receptacle product serving temperature. It is the responsibility of the of the correct voltage, size, and plug configuration. If... -
Page 4: Model Description

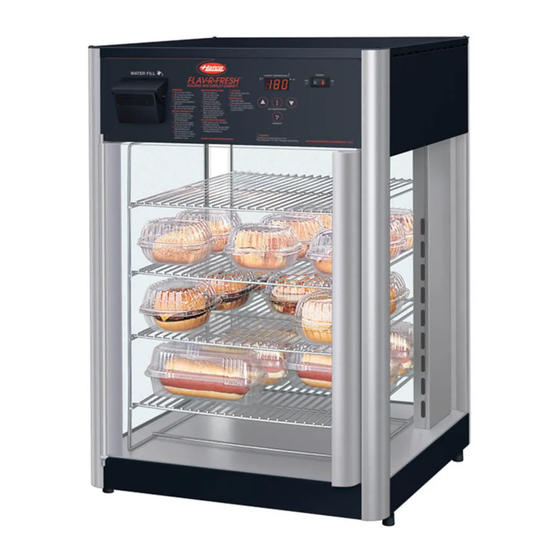

MODeL DesCRIPTION Model FDWD-2x All Models All Flav-R-Fresh Humidified Impulse Display Cabinets have an Model FDWD-2X has the same features as the FDWD-1X, but ® air heating system, humidity system with low water control includes an additional door on the opposite side of the controls protection, fluorescent lamps, tempered glass sides, and a for pass-through convenience. -
Page 5: Model Designation
NOTE: Specification label is located on the ceiling sheet inside CEE 7/7 Schuko AS-3112 of the unit. See label for serial number and verification of unit electrical information. Figure 5. Plug Configurations NOTE: Receptacle not supplied by Hatco. electrical Rating Chart Model Voltage Watts Amps... - Page 6 sPeCIFICATIONs electrical Rating Chart Model Voltage Watts Amps Plug Configuration shipping Weight FDWD-1X 1428 14.3 NEMA 5-15P 92 lbs. (42 kg) (with humidity) 1373 11.4 NEMA 5-15P 92 lbs. (42 kg) 1425 CEE 7/7 Schuko or BS-1363 92 lbs. (42 kg) 1425 CEE 7/7 Schuko or AS 3112 92 lbs.
-
Page 7: Dimensions
sPeCIFICATIONs electrical Rating Chart Model Voltage Watts Amps Plug Configuration shipping Weight FDWD-12 1390 11.6 NEMA 5-15P 98 lbs. (44 kg) (with humidity) FDWD-12 1065 NEMA 5-15P 98 lbs. (44 kg) (no humidity) FDWD-12-2X 1373 11.4 NEMA 5-15P 98 lbs. (44 kg) (with humidity) FDWD-12-2X 1048... -
Page 8: Installation
INsTALLATION General • Glass Panels — The cabinets have tempered glass panels that are protected during shipping using rubber Flav-R-Fresh Humidified Impulse Display Cabinets are ® tabs along the glass edges and tape to hold the panels shipped with most components installed and ready for securely. -
Page 9: Reversing The Access Door
INsTALLATION Reversing the Access Door 6. Remove the screws from the striker plates on the non-hinge side of the cabinet. The Flav-R-Fresh access door(s) may be hinged on either the © left or right side for convenience. Use the following procedure 7. -
Page 10: Relocation The Proximity Switch
INsTALLATION Relocating the Proximity switch 5. Remove the screw and nut from the new mounting hole. Secure the proximity switch to the mounting hole with the (Rotating Rack Models Only) screw and nut. Make sure to maintain proper switch Units equipped with a rotating rack will require relocating the orientation when tightening the hardware. -
Page 11: Operation
OPeRATION General *IMPORTANT NOTE* When using distilled water, add one teaspoon of salt to the Use the following procedures to operate Flav-R-Fresh ® water reservoir during the initial water fill only. This will ensure Humidified Impulse Display Cabinets. proper operation of the water level sensors. WARNING WARNING Read all safety messages in the IMPORTANT sAFeTy... -
Page 12: Setting The Humidity Level
OPeRATION setting the humidity Level 4. After the desired humidity level is set, wait 15 seconds without pushing any keys for the CABINET TEMPERATURE Use the following procedure to set the humidity level on display to return automatically to operational mode. humidified units. -
Page 13: Maintenance
Connecting This unit has no “user-serviceable” parts. If service is required on this unit, contact an Authorized hatco service Connecting Agent or contact the hatco service Department at 800-558- Coupling 0607 or 414-671-6350;... -
Page 14: Draining The Water Reservoir
These lamps have a special lamp cover to guard against injury and food contamination in the event of breakage. When replacing a fluorescent lamp, use Hatco P/N 02.30.074.00. Use the following procedure to replace a Figure 13. Draining Reservoir Valve fluorescent lamp. -
Page 15: Troubleshooting Guide
Lamp loose or defective. Re-install or replace fluorescent lamp. Unit operates, but is not circulating Blower motor is defective. Contact Authorized Service Agent or Hatco for air inside cabinet. assistance. The correct voltage may not be supplied Contact Authorized Service Agent or Hatco for to blower. -
Page 16: Options And Accessories
OPTIONs AND ACCessORIes 4″ (102 mm) Adjustable Legs Display Racks Several display racks are available to “customize” Flav-R- The 4″ (102 mm) adjustable legs are used to add additional Fresh to specific foodservice operations. All are nickel-plated ® height to the unit. except the pretzel tree, which is stainless steel. - Page 17 FDWD-1X models only and comes installed when ordered with the unit. sign holders NOTE: Signage not supplied by Hatco. Sign dimensions are (FDWD-1, FDWD-1x, FDWD-2, and FDWD-2x) 19-5/16″ W (491 mm) x 6-5/8″ H ( 168 mm). Order custom Use the following procedures to install either a Display Sign signs for Hatco equipment at www.hatcographics.com.
-
Page 18: Limited Warranty
Hatco’s written instructions or Without limiting the generality of the foregoing, SUCH 18 months from the date of shipment from Hatco. Buyer must WARRANTIES DO NOT COVER: Coated incandescent light establish the Product’s purchase date by returning Hatco’s... -
Page 19: Form No. Fdwdm
NOTes Form No. FDWDM-1010... -
Page 20: Authorized Parts Distributors
AUThORIzeD PARTs DIsTRIBUTORs ALABAMA IOWA NeW yORK TexAs Jones McLeod Appl. Svc. Electric Motor Service Co. Acme American Repairs, Inc. GCS Service Birmingham 205-251-0159 Davenport 319-323-1823 Brooklyn 718-456-6544 Fort Worth 800-433-1804 Goodwin Tucker Group Alpro Service Co. Armstrong Repair Service...
