Humidified Large Capacity
Installation and Operating Manual
WARNING
Do not operate this equipment unless you
have read and understood the contents of
this manual! Failure to follow the
instructions contained in this manual may
result in serious injury or death. This
manual
contains
important
information concerning the maintenance,
use, and operation of this product. If
you're unable to understand the contents
of this manual, please bring it to the
attention of your supervisor. Keep this
manual in a safe location for future
reference.

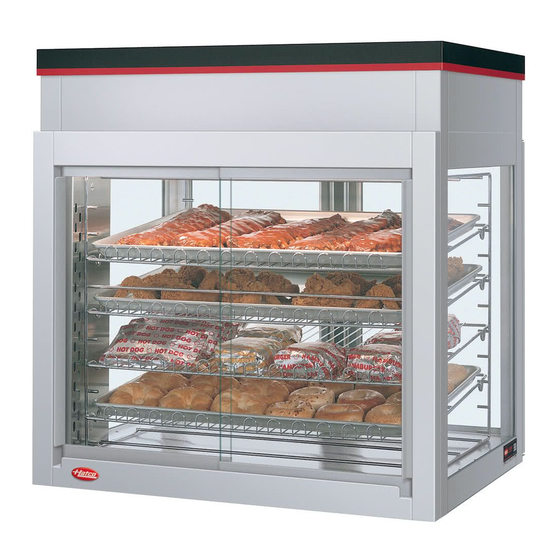

FLAv-R-SAvOR
Display Cabinets
WFST Series
P/N 07.04.248.00
ADVERTENCIA
No opere este equipo al menos que haya
leído y comprendido el contenido de este
manual! Cualquier falla en el seguimiento
de las instrucciones contenidas en este
manual puede resultar en un serio lesión
safety
o
muerte.
Este
importante información sobre seguridad
concerniente al mantenimiento, uso y
operación de este producto. Si usted no
puede entender el contenido de este
manual
por
favor
supervisor. Almacenar este manual en
una localización segura para la referencia
futura.
®
Ne pas utiliser cet équipement sans avoir
lu et compris le contenu de ce manuel !
Le
contenues dans ce manuel peut entraîner
de graves blessures ou la mort. Ce
manuel
manual
contiene
importantes
l'utilisation et le fonctionnement de ce
produit. Si vous ne comprenez pas le
contenu de ce manuel, veuillez le signaler
pregunte
a
su
à votre supérieur. Conservez ce manuel
dans un endroit sûr pour pouvoir vous y
référer plus tard.
AVERTISSEMENT
non-respect
des
instructions
contient
des
informations
concernant
l'entretien,
© 2012 Hatco Corporation

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FLAV-R-SAVOR WFST Series and is the answer not in the manual?

Questions and answers

Related Manuals for Hatco FLAV-R-SAVOR WFST Series

Summary of Contents for Hatco FLAV-R-SAVOR WFST Series

  • Page 1 à votre supérieur. Conservez ce manuel manual in a safe location for future supervisor. Almacenar este manual en dans un endroit sûr pour pouvoir vous y reference. una localización segura para la referencia référer plus tard. futura. © 2012 Hatco Corporation...

  • Page 2: Table Of Contents

    Large Capacity Display Cabinets are ® designed to hold prepared foods for prolonged periods of time while maintaining that “just made” quality. Hatco Holding and Display Cabinets provide the best environment for food products by regulating the air temperature while at the same time balancing the humidity level.

  • Page 3: Important Safety Information

    This unit is for holding pre-heated food product only. electrician to determine and install proper voltage and Hatco is not responsible for the actual food product size electrical receptacle. serving temperature. It is the responsibility of the user to •...

  • Page 4: Model Description

    MODEL DESCRIPTION All Models all Large Capacity Display Cabinets feature incandescent Control Panel lights, tempered glass sides, and French-style doors. Units can be configured with or without a humidity system. Sliding glass doors are available for one side only on models WFST-1X and WFST-2X.

  • Page 5: Specifications

    If plug and receptacle do not match, contact a qualified electrician to determine and install the proper voltage and size electrical receptacle. NOTE: Receptacle not supplied by Hatco. NEMA L14-20P CEE 7/7 Schuko BS 1363...

  • Page 6: Dimensions

    SPECIFICATIONS Dimensions Width Depth Height Footprint Footprint Model Width (D) Depth (E) 32-1/8″ 25-1/4″ 32-3/4″ 29″ 19-7/8″ WFST-1X (814 mm) (641 mm) (831 mm) (736 mm) (504 mm) 32-1/8″ 27-5/8″ 32-3/4″ 29″ 19-7/8″ WFST-2X (814 mm) (703 mm) (831 mm) (736 mm) (504 mm) Door Opening: 28″...

  • Page 7: Food Holding Guide

    INSTALLATION General 1. Remove the unit from the carton. Two people are required for this step. Hatco Flav-R-Savor Large Capacity Holding and Display ® Cabinets are shipped with most components pre-assembled. NOTE: To prevent delay in obtaining warranty coverage, Care should be taken when unpacking shipping carton to avoid complete online warranty registration.

  • Page 8: Operation

    OPERATION General 3. On humidified units, fill the water Use the following procedures to operate a Flav-R-Savor Large reservoir with clean water. To fill the Water ® Capacity Holding Cabinet. reservoir: Fill Cup a. Lift up the WaTER FILL cup cover and pull forward.

  • Page 9: Maintenance

    This unit has no “user-serviceable” parts. If service is 3. Remove any food pans and/or racks in the unit. required on this unit, contact an Authorized Hatco Service Agent or contact the Hatco Service Department at 4. Position a one gallon (four liter) container under the valve.

  • Page 10: Removing Lime And Mineral Deposits

    5. Set both the air temperature and humidity to their highest settings and allow the unit to run for 30 minutes. NOTE: Hatco shatter-resistant light bulbs meet NSF standards for food holding and display areas. For 120 volt 6. Turn off the unit, unplug the power cord, and allow the unit applications, use Hatco P/N 02.30.043.00.

  • Page 11: Troubleshooting Guide

    POWER ON/OFF (I/O) switch to the ON (I) position. Unit operates, but is not Blower motor is defective. Contact an authorized Hatco Service agent or Hatco for circulating air inside cabinet. assistance. The correct voltage may not be supplied to Contact an authorized Hatco Service agent or Hatco for blower.

  • Page 12: Options And Accessories

    6” (152 mm) adjustable stainless steel legs, and two performing any maintenance or cleaning. stacking brackets. NOTE: Signage not supplied by Hatco. Sign dimensions are Use the following procedure to stack two WFST units. This 31-15/16″ W (811 mm) x 6-1/4″ H (159 mm). Order custom procedure requires at least two people: signs for Hatco equipment at www.hatcographics.com.

  • Page 13: Limited Warranty

    Product’s purchase date by registering the Product bulbs, fluorescent lights, heat lamp bulbs, coated halogen light with Hatco or by other means satisfactory to Hatco in its sole bulbs, halogen heat lamp bulbs, xenon light bulbs, LED light discretion.
  • Page 14 NOTES Form No. WFSTm-0612...
  • Page 15 NOTES Form No. WFSTm-0612...

  • Page 16: Authorized Parts Distributors

    HATCO AUTHORIzED PARTS DISTRIBUTORS ALABAMA IOWA NEW yORK TEXAS Jones mcLeod appl. Svc. Electric motor Service Co. acme american Repairs, Inc. GCS Service Birmingham 205-251-0159 Davenport 319-323-1823 Brooklyn 718-456-6544 Fort Worth 800-433-1804 Goodwin Tucker Group alpro Service Co. armstrong Repair Service...
