If you have any questions regarding assembly or if parts are missing, DO NOT return this item to the
store where it was purchased. Please call our toll-free customer service number and have your
instructions and parts list ready to provide the model name, part name or factory number:
Or visit our website 24 hours a day, 7 days a week for product assistance at
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION.

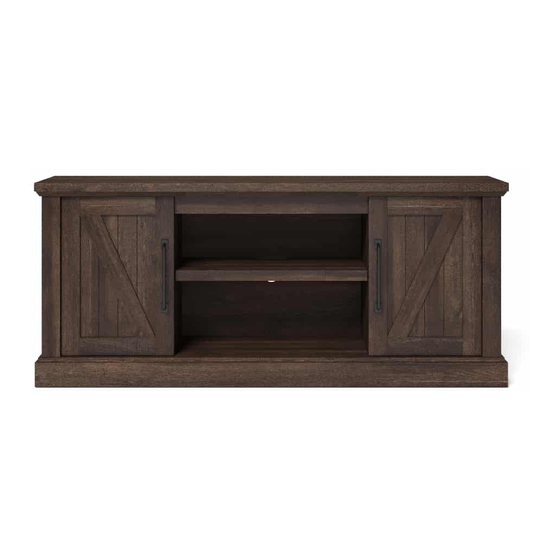

Media TV Console
Model # BJAVCL65-3
ADULT ASSEMBLY REQUIRED
Pacific Standard Time: 8:30 a.m. - 4:30 p.m., Monday to Friday
www.whalenfurniture.com
Or e-mail your request to parts@whalenfurniture.com
PLEASE READ AND KEEP FOR FUTURE REFERENCE.
Date 2021-06-15
1-866-942-5362
Rev. 0001-A
LOT NUMBER:
DATE PURCHASED: /
/
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Whalen BJAVCL65-3
Summary of Contents for Whalen BJAVCL65-3
- Page 1 LOT NUMBER: DATE PURCHASED: / Media TV Console Model # BJAVCL65-3 ADULT ASSEMBLY REQUIRED If you have any questions regarding assembly or if parts are missing, DO NOT return this item to the store where it was purchased. Please call our toll-free customer service number and have your...
-
Page 2: Special Note
G E N E R A L I N F O R M A T I O N , T I P S A N D T R I C K S 1. Please read the Assembly Instructions prior to assembling this product. 2. - Page 3 IMPORTANT Before you begin: Open, identify and count all parts prior to assembly. Lay out parts on a flat and non- abrasive surface. You will need the parts identified on page 4 and 5 of this instruction manuals. NOTE: IT IS VERY IMPORTANT TO USE GLUE WITH THE DOWELS. EXCESS GLUE CAN BE WIPED OFF WITH A DAMP CLOTH.
- Page 4 Parts and Hardware List Please read completely through the instructions and verify that all listed parts and hardware are present before beginning assembly. A- Top Panel (Qty. 1) B-Left Side Panel (Qty. 1) C- Left Partition Panel (Qty. 1) D- Right Side Panel (Qty. 1) E- Right Partition Panel (Qty.
- Page 5 Parts and Hardware List Please read completely through the instructions and verify that all listed parts and hardware are present before beginning assembly (1) Cam Lock (2) Cam Bolt (3) M8 x 30 mm Wood Dowel (Qty. 44+2 extra) (Qty. 44+2 extra) (Qty.
- Page 6 Assembly Instructions NOTE: Please do not fully tighten all bolts until you finish assembling all parts. Once assembled, go back and fully tighten all bolts. This will make it easier during assembly of unit. 1. Unpack the unit and confirm that you have all the hardware and required parts. Assemble the unit on a carpeted floor or the empty carton to avoid any scratch.
- Page 7 Assembly Instructions Cam screw holes must face in 4. Attach Back Skirting (H) between the Left and Right Skirtings (I and J) by engaging two Cam Locks (1). 5. Attach Base Middle Supports (K) to the Back Skirting (H) by engaging one Cam Lock (1) per support.
- Page 8 Assembly Instructions 6. Attach the Front Skirting (G) to the previous assembly by engaging four Cam Locks (1). 7. Attach the assembled base to the Bottom Panel (F) by engaging sixteen Cam Locks (1).
- Page 9 Assembly Instructions 8. Secure the base in place by attaching one Corner Conector (7) at each skirting joint with two 12 mm Pan Head Screws (6). Wood dowel holes for side panels 9. Securely screw the Cam Bolts (2) into the designated small holes on the top surface of the Bottom Panel (F) with a Phillips screwdriver.
- Page 10 Assembly Instructions 10. Securely screw the Cam Bolts (2) into the designated small holes on the Top Panel (A) and Partition Panels (C and E) with a Phillips screwdriver. 11. Glue the Wood Dowels (3) into the side holes on the Side Panels (B and D), Partition Panels (C and E) and Top Front Stretcher (L).
- Page 11 Assembly Instructions 12. Attach Top Front Stretcher (L) between the Partition Panels (C and E) by engaging two Cam Locks (1). 13. Align the drilled holes on the Bottom Panel (F) with the inserted Wood Dowels on both Partition Panels (C and E), then press them together. 14.
- Page 12 Assembly Instructions Door hinge mounting bases point towards the front of the unit 15. Attach the Side Panels (B and D) to the Bottom Panel (F) by engaging four Cam Locks (1). 16. Attach the Top Panel (A) to the Top Front Stretcher (L), Side Panels (B and D) and Partition Panels (C and E) by engaging eleven Cam Locks (1).
- Page 13 Assembly Instructions 17. Now, go back and tighten all cam locks. Make sure that all the parts are tight and there are no gaps between the pieces. This will help keep the unit square. 18. Turn the assembled unit over so that its back is facing up. 19.
- Page 14 Assembly Instructions 23. Stand the previous assembly upright. 24. Insert four Shelf Supports (8) into the holes at your desired height on each compartment. Make sure that you place the shelf supports at the same level so the shelves are not tilted. 25.
- Page 15 Assembly Instructions 30. Stick the Rubber Bumpers (10) at the outer corners of both Doors (P and Q) where they meet the Partition Panels (C and E). NOTE: To prevent your TV from tipping, you must install the Stopper if you place a flat panel television on the top panel.
- Page 16 Assembly Instructions Tools required: Phillips screwdriver, stud finder, pencil, tape measure, power drill and 1/8” drill bit. 33. Ask for assistance to position the assembled TV console at the desired location against a wall. If necessary, adjust the pre-attached floor levelers at the bottom of the Front Skirting (G) to correct the tilt and level the doors.
-
Page 17: Care And Maintenance
Care and Maintenance Use a soft, clean cloth that will not scratch the surface when dusting. Use of furniture polishes is not necessary. Should you choose to use polishes, test first in an inconspicuous area. Using solvents of any kind on your furniture may damage the finish. ... -
Page 18: Quality Guarantee
Should this product be defective in workmanship or materials or fail under normal use, we will repair or replace it for up to one (1) year from date of purchase. Every Whalen Furniture product is designed to meet your highest expectations. We guarantee that you will immediately see the value of our fine furniture.
