The H2TU-C-202 provides two sets of maintenance screens for monitoring system activity and assessing
performance.
•
The Monitor screens provide a graphical representation of circuit activity and allow initiation of loopbacks.
•
The Performance screens provide current, 25-hour, 48-hour, and 31-day performance histories and a
continuous alarm history.
•
The Event Log provides a description of the 100 most recent events.
S O
YSTEM VERVIEW
Future product enhancements will support up to two regenerators with three HDSL2 spans, as shown in
The Monitor and Performance screens provide important activity and performance information about the HDSL2
spans and span devices.
H2TU-C-202 List 1E
S A
YSTEM

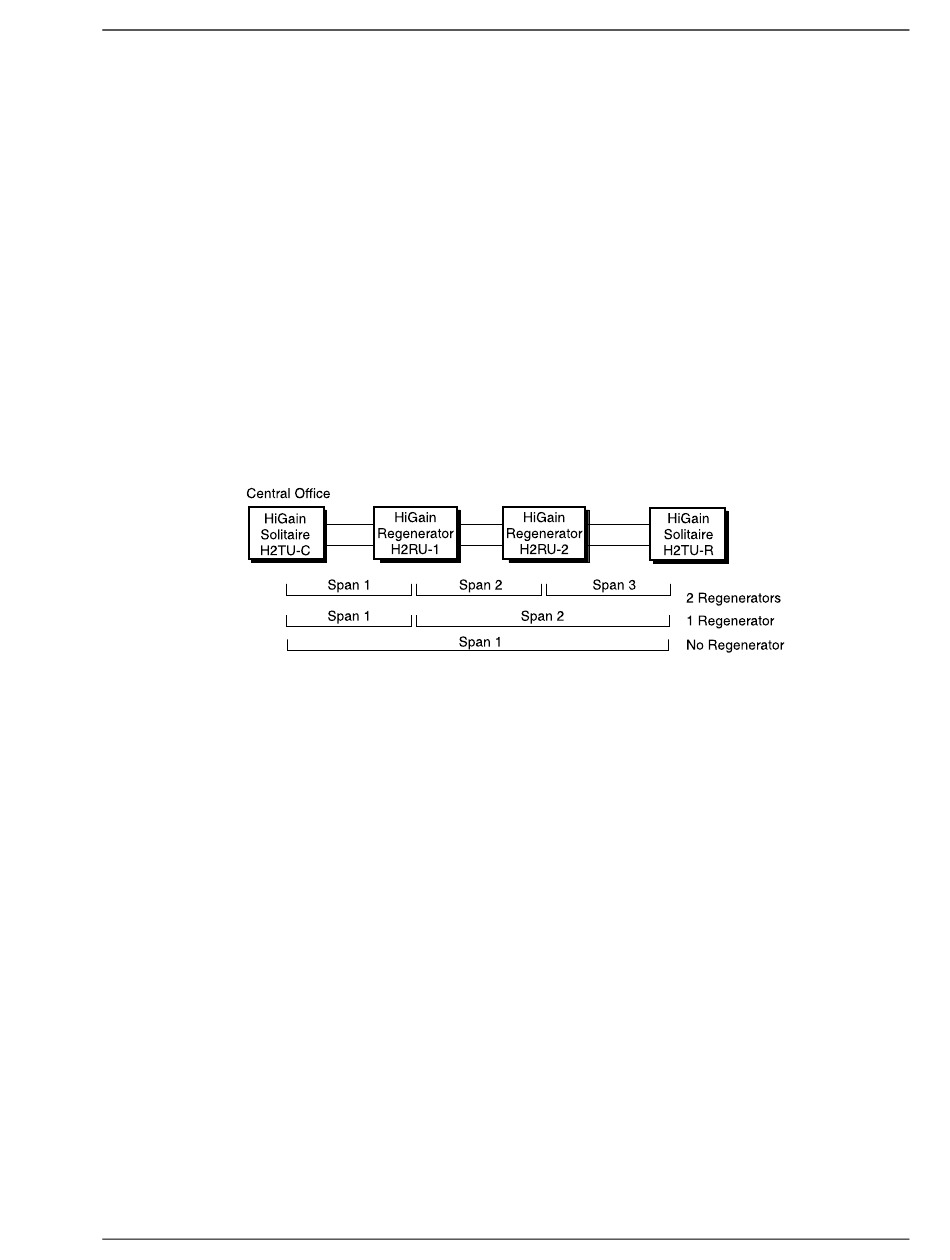

Figure 13. System Spans
