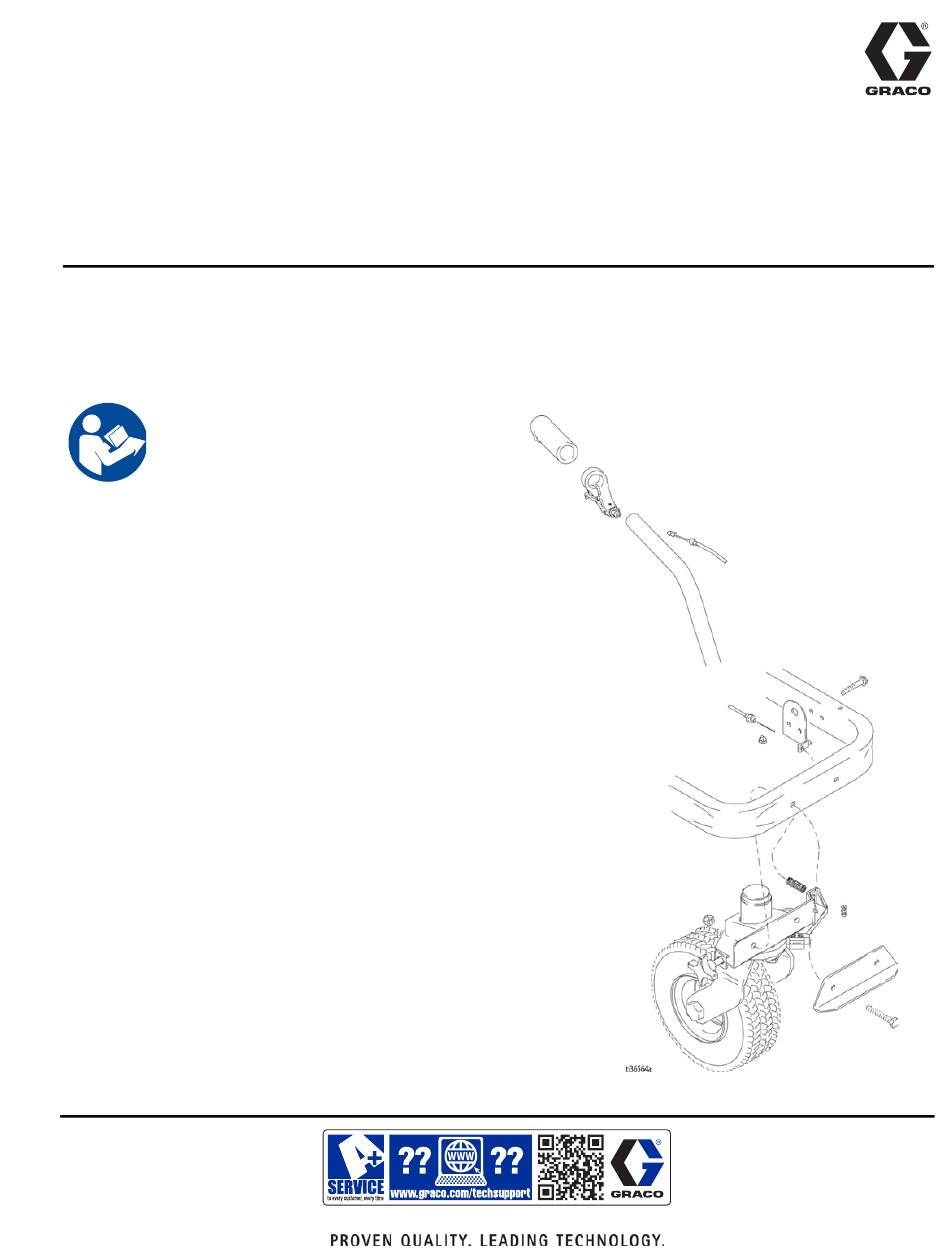

Instructions - Part List
Swivel Wheel Parts Kits for
Line Lazer 3500, 5000, 3900, 5900, 200HS, 200DC,
ES 1000, ES 2000, 200 MMA
Model 241105, Series A
Important Safety Instructions
Read all warnings and instructions in this
manual before using the equipment.
Save these instructions.
308943E
EN
