Hardware kit

Advertisement

Nomadik is a registered trademark of STMicroelectronics

Features

Nomadik STn8815 multimedia application
processor: STn8815A 12 mm x 12 mm
package
1-Gbit DDR mobile SDRAM
Flash memory
– 2-Gbit OneNAND Flash
– 1-Gbit NAND Flash (optional)
Video
– 4.3" WVGA RGB 24-bit LCD display with
touch screen as default display
– Generic I/O connector for custom display
– SMIA CCP2 camera interface with 3 Mpixel
AF sensor and Flash gun module in kit
– CCIR parallel camera interface
– Analog TVout with STw8009 IC
Audio
– STw5095 stereo audio codec supporting 2
loudspeakers, 1 headset stereo, dual
stereo microphones and 1 external
microphone
– Class D amplifier
– FM stereo and BT interface
Power management
– Power management companion IC
STw4811
– Battery and sector operated
– Battery charging via AC/DC adapter / USB
– Battery charge control system + fuel gauge
Memory card interface for SD/MMC
Peripherals and connectivity
– Bluetooth 2.1 stacked with FM radio
STLC2590
– ST WLAN 802.11 b/g STLC4550/60
– USB OTG high speed
– MEMs enabling "smart UI"
– GPS daughter board connector
November 2007
For further information contact your local STMicroelectronics sales office.

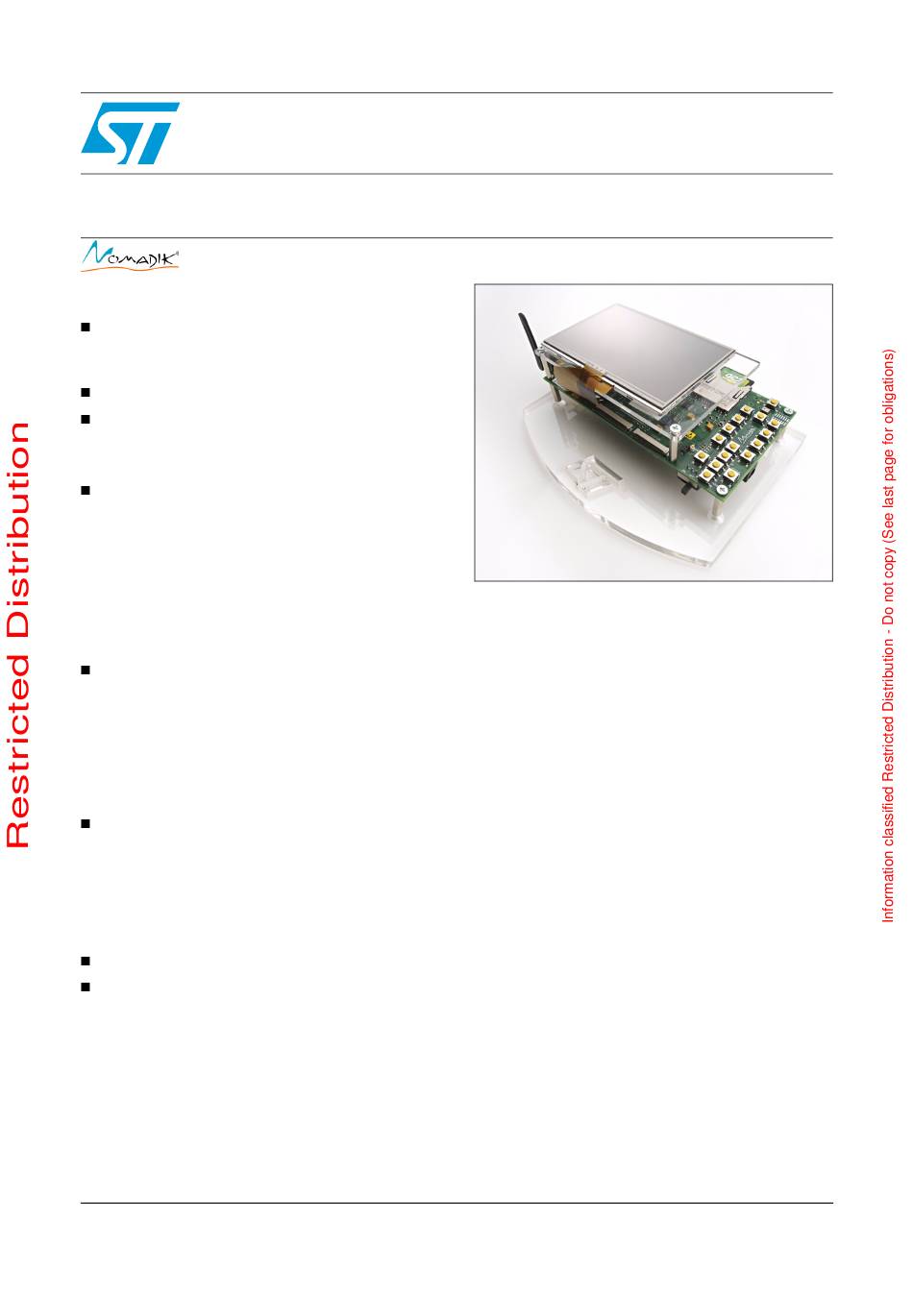

Nomadik NHK-15 hardware kit
– 4-bit CE-ATA HDD interface
– SIM card interface for content protection
– 4x4 matrix keyboard and open interface for
custom keyboard
– Trace and debug: JTAG, ETM, Nexus,
RS232, XTI and Ethernet
– I/O expansion connector for:
– Mobile TV DVB-H, S-DTB, T-DMB
interfaces
– Data modem interface for return channel
– Other GPIOs

Description

The Nomadik hardware kit, NHK-15, is a
comprehensive hardware environment enabling
full STn8815 Nomadik family advantages for
media convergence devices. It allows easy and
fast development of applications and products
such as: internet tablets, portable multimedia and
TV players and personal navigation devices.
The NHK-15 is the ST reference hardware
delivery for STn8815 Linux software offerings and
the application development tool for Linux and
WinCE developer's community.
NM850 Rev 3
NHK-15
Data Brief
1/6
www.st.com
6

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Nomadik NHK-15 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for ST Nomadik NHK-15

  • Page 1 – Bluetooth 2.1 stacked with FM radio TV players and personal navigation devices. STLC2590 The NHK-15 is the ST reference hardware – ST WLAN 802.11 b/g STLC4550/60 delivery for STn8815 Linux software offerings and – USB OTG high speed the application development tool for Linux and –...
  • Page 2 STLC2590 B.T+FM MSP2 WQVGA TFT LCD WVGA TFT LCD CLCD VGA TFT LCD (optional) STLC4550/60 MSP3 TSC2003 UART1 FSMC JTAG Touch screen control ST device DVB-H / S-DTB T-DMB Data modem Debug board int. Other vendor Connectors NM850 Rev 3...
  • Page 3 NHK-15 development kit NHK-15 package contents NHK-15 package contents The NHK-15 is delivered with all the elements required for operation. The starter kit comprises: NHK-15 development board mounted on Plexiglas ® with a WVGA display Camera with flash gun module Debug board Headset Loudspeakers...
  • Page 4 Ordering information NHK-15 development kit Ordering information Table 1. Order code and description Product code Comments The procurement of this hardware kit requires a prior signature of Nomadik STN8815NHK NDA which protects Nomadik and their platform chipsets including software, schematics, documentation and any other deliverables. References Table 2.
  • Page 5 NHK-15 development kit Revision history Revision history Table 3. Document revision history Date Revision Changes 14-Sept-2007 Initial release. Cover page amended: NHK-15 is the reference hardware delivery for 08-Oct-2007 Linux platforms only. Cover page amended: new photo. STLC4560 replaced with 22-Nov-2007 STLC4550/60 throughout.
  • Page 6 No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted under this document. If any part of this document refers to any third party products or services it shall not be deemed a license grant by ST for the use of such third party products or services, or any intellectual property contained therein or considered as a warranty covering the use in any manner whatsoever of such third party products or services or any intellectual property contained therein.
