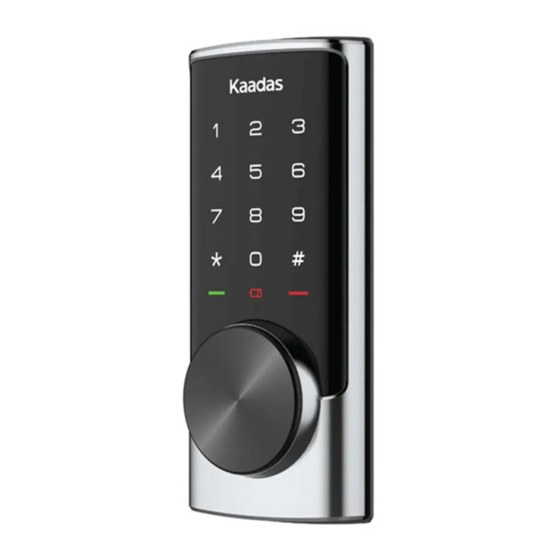

Kaadas RX-C User Manual

RX-C
User Manual
www.kaadasgroup.com
Shenzhen Kaadas Intelligent Technology Co.,Ltd reserves all rights
for the final interpretation to this user manual
All design and specifications are subject to change without notice.
3
Preparing for Installation
Addtional Parts Tools Needed
Door prep
Optional Bolt
1. 2-1/8" (54mm) hole saw
Faceplate
2. 1" (26mm) boring bit
3. 7/64" (2.5mm) drill bit
4. 3/8" (10mm) drill bit
5. Chisel&Hammer
A. Measure the dimension of the hole shown.If the measurement is 1-1/2"(38mm), remove the fire cup.
Fire
cup
φ1-1/2"
(38mm)
B. Change faceplate,if necessary.
Door
edge
No change
necessary.
1 2
C. Adjust the deadbolt.
NOTE: Bolt ships with backset in 2-3/8"(60mm) position. If required, turn the bolt case and pull to extend to
2-3/4" (70mm)backset position. (see picture below)
φ2-3/8"
φ2-3/8"
(60mm) (60mm)
1
φ2-3/4"
(70mm)
Lock installation
#2 Philips screwdriver
Important Notice:
Make sure your door is prepared prior to installation.
Only drill a upper hole if you wish the lock to have
added stability. Please refer to the provided templatefor
drilling if needed.
No adjustment needed.
φ2-1/8"
(54mm)
Door
edge
3
2
φ2-3/4"
(70mm)
1
Installation Guide
Interior assembly
Mounting
screws(2)
Battery
cover
Mounting
plate
2
Specifications
Exterior assembly
Battery cover
Keypad
Cylinder
Reset button
Thumb turn
Micro USB port
Reboot button
158mm(L)x71mm(W)x29mm(H)
6-7/32"x2-51"/64x1-9/64"
179mm(L)x72mm(W)x47mm(H)
7-3/64"x2-53"/64x1-27/32"
4
Installation
1. Install strike on the door frame.
NOTE: Make sure to allow for the bolt to be centered in the strike.
or
strike
2. Use a screwdriver to test if deadbolt works smoothly.
4. Hold the exterior assembly flush to the door, pull
the key tailpiece and cable through the door hole.
This hole is for the optional
cross bolt provided for
stabilizing your lock. If you
drilled a hole, securely tighten
the post before mounting on
you door.
NOTE: Cable must go through
door hole under the bolt.
NOTE: The tailpiece should be
kept in a horizontal position.
6. Secure both assemblies using 8/32x34 and1/4x65
screws.Make sure that exterior assembly is vertically
aligned.Tighten securely with a #2 Philips screwdriver.
Exterior assembly
Cross bolt
Bolt
Backup key
Interior assembly
Wireless
module
socket
six month
3. Make sure the bolt in retracted(unlocked) postion.
NOTE: The bolt must be in retracted (Unlocked)
position before installing the lockset.
5. Positon the inside mounting plate by first routing
the cable and connector throughthe mounting
plate's cable hole.
7. Attach cable assembly to the interior assembly
PCB by lining up notches on top of cable connector
to slots on PCB
connector.
Press connector
in firmly using
thumbs untill
commpletely
connected.
PCB connector
Cable connector
