Summary of Contents for Kaadas K8-T

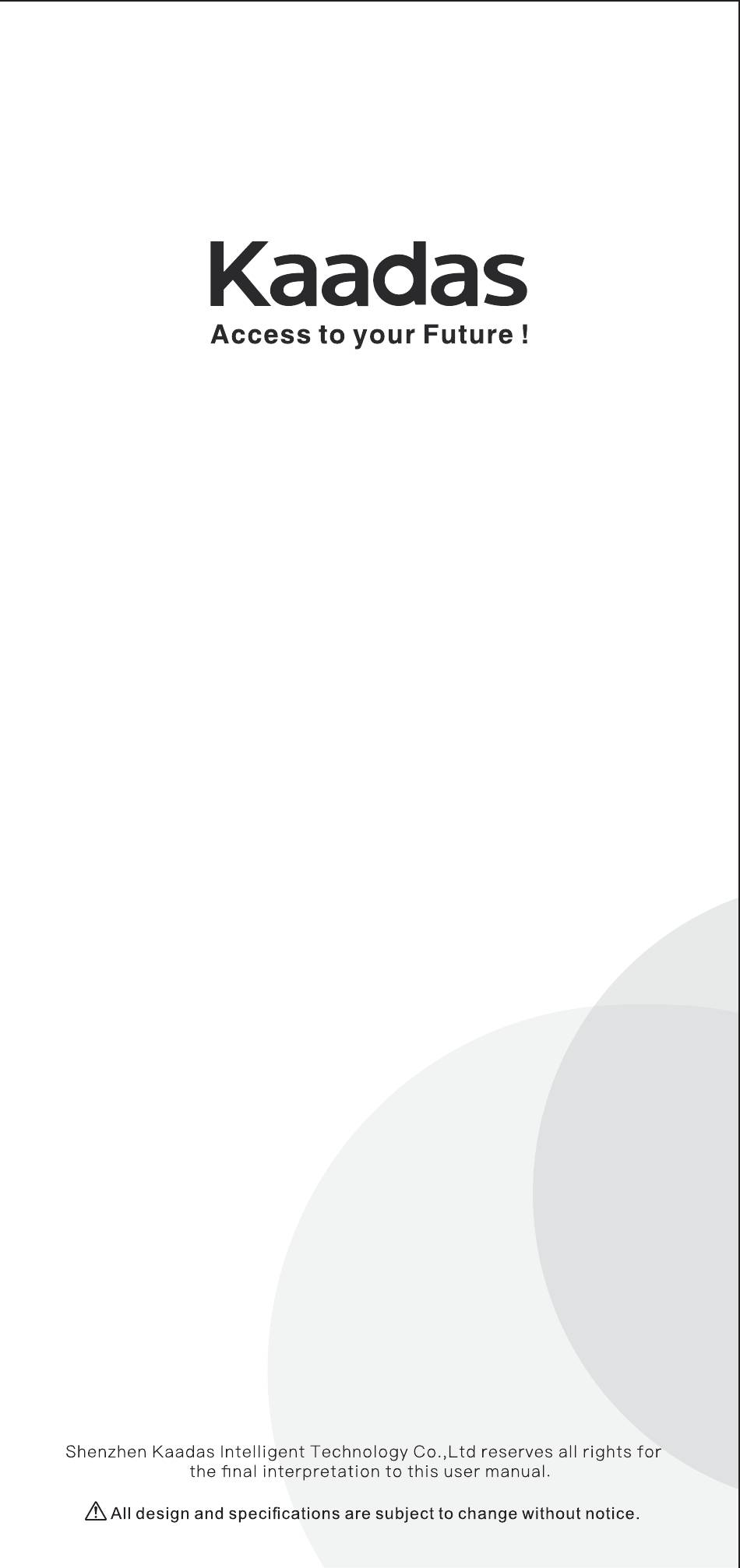

  • Page 1 K8-T User Manual www.kaadasgroup.com...
  • Page 2 CAUTIONS This section contains important information to ensure the user's safety and prevent potential damage to property. Please, read this section carefully and use the product accordingly. CAUTION 1. Master PIN Code: Default Master PIN code is [12345678],please modify it immediately. 2.
  • Page 3 Latch bolt Shaft socket Lock body Deadbolt Sensor latch Mechanical key CAUTION Pictures of components above are just reference, please refer to the material object.
  • Page 4 P ac kage C ontent and E x plos ive V iew This described package content is for reference only, the real products should be considered as final. If some components lost, please check with the sellers. Quantity Number Item name Remark Outside escutcheon Inside escutcheon...
  • Page 5: Before Installation

    Before Installation Confirm open direction This product can be installed on left-in, left-out,right-in, and right-out doors. Left opening In door Left-in Out door In door Left-out Out door Right opening In door Right-in Out door In door Right-out Out door Change open direction Please change position of screws according to open direction.
  • Page 6: Installation

    Installation Drill holes according to the installation Fix mortise screws. template, and put the mortise lock inside the door. Note: Please make sure the dead bolt is inside of mortise lock during Install the connecting screw bolt and fix Put connecting cable through the it on the outside escutcheon, put the door, insert the shaft into hole on pressure spring and square shaft into...
  • Page 7: Menu Table

    How to set up your product How to enter master mode 1. Wake up touchscreen keypad with palm. 2. Press [*] twice, input master PIN code, and press [#] to confirm. 3. Voice guide: Enter the Master Mode. Note: Change master PIN code is required immediately for menu operation.
  • Page 8: User Settings

    User settings Enroll User PIN Code Access into master mode, press [1] for user setting.Then press [1] to enroll user PIN code. Enter 2 digital user number (00-09), and confirm with [#] k ey. Enter user PIN code (6-12 digits) , and confirm with [#] key;...
  • Page 9 Delete User PIN Code Access into master mode, press [1] for user setting.Then press [4] to delete user PIN code. Press [1] to delete single user Enter 2 digital user number ( 00-09), and confirm with [#] key Voice prompt of "Deletion succeeded" Press [2] to delete all users Voice prompt of "Deletion succeeded"...
  • Page 10: System Setting

    Opening Mode Setting Access into master mode, press [1] for user setting.Then press [7] for opening mode setting. Press [1] for normal mode (single verification) ,which means opening by PIN code or fingerprint or card. Press [2] for security mode (double verification) ,which means opening by PIN code+fingerprint or PIN code +card or fingerprint+card...
  • Page 11: Language Setting

    Language Setting Access into master mode, press [2] for system setting.Then press [4] for language setting. Press [1] for Chinese Voice. Press [2] for English Voice. Bluetooth Setting Access into master mode, press [5] for bluetooth setting. Press [1] to connect bluetooth. Press [2] to disconnect bluetooth.
  • Page 12: Normal Mode

    How to use your lock Normal Mode 6.1.1 PIN code opening 1. Touch pad screen by palm to lighten keypad 2. Enter the enrolled PIN code with end of [#]. Voice prompt “door opened” 3. Push or Pull handle to open the door Notes The random numbers can be added before and after the real PIN code, this prevents the user PIN code from...
  • Page 13: Auto /Manual Mode

    Open door by mechanical key override In case of forgetting PIN code, battery run out or system error; Mechanical key is used to open door as backup mode. Insert the key into key hole and rotate it with proper angles. Then push or pull handle to open the door.
  • Page 14: Locking Operation

    Locking Operation 6.6.1 Auto locking In auto mode, door will be locked automatically in 1.5 seconds after closing. Voice prompts "door closed" 6.6.2 Manual locking In manual mode, click [CLOSE] button to lock the door from inside or verify user fingerprint /PIN code / card to lock the door from outside.
  • Page 15 Safe Handle Feature Safe Handle Switch 1.Enable: move the safe handle switch to display ‘red’mark. Once safe handle feature is enabled, the indoor handle will be locked. 2.Disable: move the safe handle switch to display‘green’mark. The indoor handle can be pushed or pulled freely.
  • Page 16: Replace Battery

    Replace Battery 6.12 1.5V AA Alkaline Battery is required.Total is 8 pcs, divided into 2 groups. One group is ok for power supply, two groups is used for longer time. 6.13 Reboot Button Press the reboot button to restart the lock, when the system is unresponsive.
