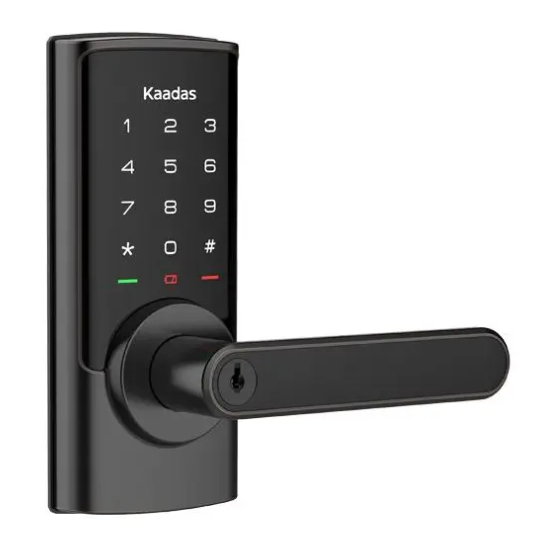

Kaadas RX-B User Manual

RX-B/RX-D
User Manual
www.kaadasgroup.com
Shenzhen Kaadas Intelligent Technology Co.,Ltd reserves all rights
for the final interpretation to this user manual
All design and specifications are subject to change without notice.
3

Preparing for Installation

Addtional Parts Tools Needed
Door prep
Optional Bolt
1. 2-1/8" (54mm) hole saw
Faceplate
2. 1" (26mm) boring bit
3. 7/64" (2.5mm) drill bit
4. 3/8" (10mm) drill bit
5. Chisel&Hammer
A. Measure the dimension of the hole shown.
No adjustment needed.
φ2-1/8"
(54mm)
C. Adjust the deadbolt.
NOTE: Bolt ships with backset in 2-3/8"(60mm) position. If required, turn the bolt case and pull to extend to 2-3/4"
(70mm)backset position. (see picture below).The bolt must be in retracted(unlocked) position when you are changing
backset.
φ2-3/8"
φ2-3/8"
(60mm) (60mm)
φ2-3/4"
(70mm)
Lock installation
#2 Philips screwdriver
Important Notice:
Make sure your door is prepared prior to installation.
Only drill a upper hole if you wish the lock to have
added stability. Please refer to the provided templatefor
drilling if needed.
B. Change faceplate,if necessary.
No change
necessary
φ2-3/4"
(70mm)
1

Installation Guide

Exterior assembly
Cross bolt
Backup key
2
Specifications
Exterior assembly
Keypad
Cylinder
Micro USB port
Reboot button
Exterior assembly 169mm(L)x157mm(W)x64.7mm(H)
Interior assembly 182.4mm(L)x157.5mm(W)x69.3mm(H)
AA alkaline battery X 4
Battery(not included)
(Operation voltage: 4.6~6.0V)
4

Installation

1. Install latch.
NOTE: Make sure latch angle faces door jamb.
Jamb
OR
Strike
2. Install strike onto door jamb.
Jamb
3. Install crossbolt.
5. Positon the inside
mounting plate by
first routing the
cable and connector
through the
mounting plate's
cable hole. Secure
both assemblies
using 8/30 screws.
Battery
cover
Interior assembly
Mounting
plate
Bolt
Mounting
screws(3)
screws(2)
Interior assembly
Battery cover
Wireless module
socket
Reset button
Manual Mode
Operation temperature：
-4°F to 129°F(-20°C to 55°C)
Last up to six mouth
(10 times open/close per day)
Wood Block
(Not included)
Angle
4. Install keypad.
6. Attach cable
assembly to the
interior assembly
PCB by lining up
notches on top
of cable connector
to slots on PCB
PCB connector
connector. Press
Cable connector
connector in firmly
using thumbs untill
commpletely
connected.
