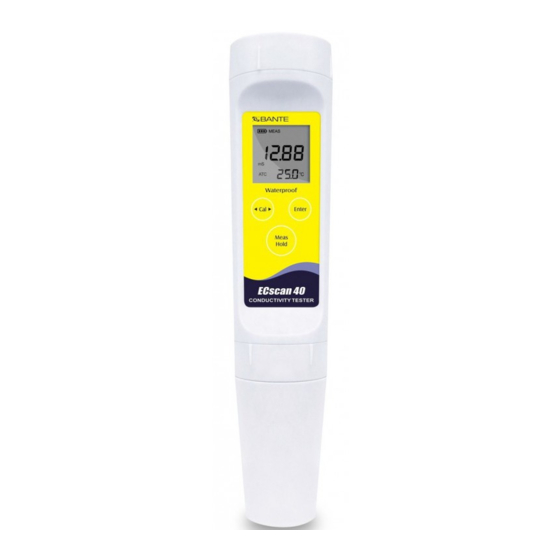

- Page 1 ECscan40 Pocket Conductivity/TDS/Salinity Tester Instruction Manual BANTE INSTRUMENTS LIMITED Technology to create the future...
-
Page 2: Unpacking The Meter
ECSCAN40 POCKET CONDUCTIVITY/TDS/SALINITY TESTER Introduction Thank you for selecting the ECscan40 pocket conductivity tester. This manual provides a step-by-step guide to help you operate the meter, please carefully read the following instructions before use. Unpacking the Meter The following list describes the standard accessories of the tester. After the unpacking, please check all accessories are complete. If any are damaged or missing, please contact nearest distributor. -
Page 3: Power On/Off
ECSCAN40 POCKET CONDUCTIVITY/TDS/SALINITY TESTER Display The tester is equipped with a clear LCD display that used to show measured value, mode indicators and unit indicators. ppm ppt INDEX: INDICATOR DESCRIPTION MEAS Indicates tester is in the measurement mode Indicates tester is in the calibration mode... -
Page 4: Setup Menu
ECSCAN40 POCKET CONDUCTIVITY/TDS/SALINITY TESTER Setup Menu ECscan40 tester contains an integrated setup menu that allows you to customize each option to meet measurement requirements. PARAMETER DESCRIPTION OPTIONS DESCRIPTION DEFAULT ■ 1 point Calibration Point 2 points 3 points TDS Factor Adjustable range: 0.1 to 1.0... - Page 5 ECSCAN40 POCKET CONDUCTIVITY/TDS/SALINITY TESTER Enter 4. Press CAL key to select the temperature unit ( C or F). Press ENTER key to confirm, the tester goes to temperature calibration mode, the display shows “ C/CAL”. Enter 5. If you do not want to perform temperature calibration, press ENTER key, the tester goes to next option. If needed, press CAL key to enter the temperature calibration mode, the display shows current temperature reading.
-
Page 6: Conductivity Calibration
Conductivity Calibration ECscan40 tester allows up to 3 points calibration in the conductivity mode. To ensure higher accuracy, we recommend that you perform 3 points calibration or select a standard value close to the sample value you are measuring. The tester will automatically detect these conductivity standard solutions and prompt the user to calibrate the meter. - Page 7 ECSCAN40 POCKET CONDUCTIVITY/TDS/SALINITY TESTER Dip the electrode into the calibration solution, the tester immediately shows current calibration standard (e.g. 1413µS/cm). Press ENTER key, the default calibration value begins flashing. Enter Press CAL key to set each digit, press ENTER key to confirm. When the setting is done, ensure the displayed value matches your calibration standard.
-
Page 8: Temperature Calibration
ECSCAN40 POCKET CONDUCTIVITY/TDS/SALINITY TESTER Press ENTER key, the default calibration value begins flashing. Press CAL key to set each digit, press ENTER key to confirm. When the setting is done, ensure the displayed value matches your calibration standard. Press ENTER key to start the calibration. Wait for the reading to stabilize, the display shows “END”. The tester returns to measurement mode. -
Page 9: Hold Function
Hold Function ECscan40 tester has two data hold modes. When the Auto-Hold function is enabled, the tester will automatically sense a stable endpoint measured value and freeze it, “HOLD” indicator will appear on the display. If the Auto-Hold function is disabled, press HOLD key, the tester will immediately freeze currently displayed value. -
Page 10: Electrode Care And Maintenance
ECSCAN40 POCKET CONDUCTIVITY/TDS/SALINITY TESTER Electrode Care and Maintenance After each use, the electrode module should be rinsed thoroughly in deionised water. ■ If there is a build-up of solids inside the measurement area of the cell, these should be removed very carefully with a cotton bud soaked ■... -
Page 11: Specifications
ECSCAN40 POCKET CONDUCTIVITY/TDS/SALINITY TESTER Specifications MODEL ECSCAN40 Range 0~20.00µS/cm, 200.0µS/cm, 2000µS/cm, 20.00mS/cm ±1% F.S Accuracy Conductivity Resolution 0.01, 0.1, 1 Calibration Points 1 to 3 points Calibration Solutions 10µS/cm, 84µS/cm, 1413µS/cm, 12.88mS/cm Range 0~10ppt (Max. 20ppt, depending on factor setting) ±1% F.S... - Page 12 ECSCAN40 POCKET CONDUCTIVITY/TDS/SALINITY TESTER Addendum: How to prepare the conductivity standard solutions Place AR potassium chloride reagent in a 50mL beaker and dry in an oven for 3 to 5 hours at 105°C, then cool to room temperature in desiccator.
-
Page 13: Warranty
The warranty period for tester is one year from the date of shipment. Above warranty does not cover sensor and calibration solutions. For more information, please contact nearest authorized distributor. BANTE INSTRUMENTS LIMITED E-mail: banteinstruments@yahoo.com Phone: +8621-6404-1598 Website: www.bante-china.com The information in this document is subject to change without notice. Copyright © Bante Instruments Limited, 2015. All rights reserved.
