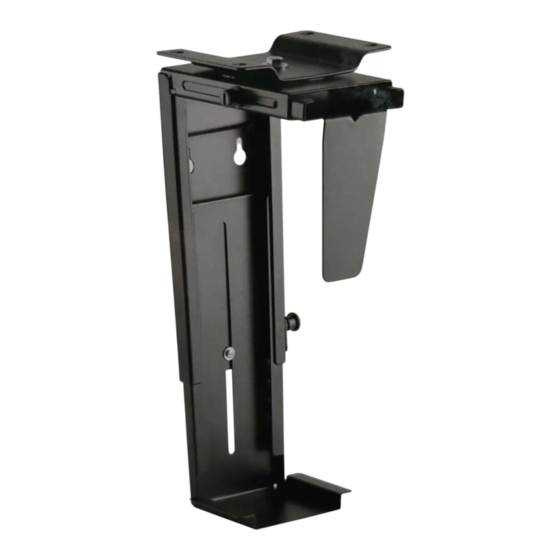

CPU Holder Instruction Manual
Website:
www.huanuoav.com
Model: HNCPB
Thank you for choosing this HUANUO product! At HUANUO we
strive to provide you with the best quality products and
services in the industry. Please share your experience of our
product with others at www.huanuoav.com/reviews if you are
satisfied. Should you have any issues, please don't hesitate to
contact us.
Technical Support:
1-800-556-0533 Mon-Fri 10am - 5pm (PST) (USA) (CAN)
Other Info:
support@huanuoav.com (US/CA)
V5.0
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for HUANUO HNCPB
Summary of Contents for HUANUO HNCPB
- Page 1 CPU Holder Instruction Manual V5.0 Model: HNCPB Thank you for choosing this HUANUO product! At HUANUO we strive to provide you with the best quality products and services in the industry. Please share your experience of our product with others at www.huanuoav.com/reviews if you are satisfied.
- Page 2 IMPORTANT SAFETY INFORMATION • Please read through these instructions completely before attempting installation. If you do not understand the instructions or have any concerns or questions, please contact customer service at support@huanuoav.com. • Check package contents against Supplied Parts and Hardware List to assure that all components were received undamaged.
- Page 3 Step 1 Attach the Pads [E] to the CPU Holder [A] Step 2 Adjust the Height of the CPU Holder [A] CAUTION: TO AVOID ANY DAMAGES, PLEASE TAKE OFF CPU BEFORE MAKING HEIGHT ADJUSTMENT 1. Loosen the preassembled bolt [H1]. 2.
- Page 4 4. Fasten the bolt [H1] and release the bolt [H2] to fix the CPU holder [A] in place Note: the height of CPU holder [A] should be greater or equal to that of CPU Step 3 Secure CPU Holder Step 3a For Desk Installation Option Secure CPU Holder [A] to the Bottom of Desk Using Screws [B] and Washers [F]...
- Page 5 Step 3b For Wood Stud Installation Option 0.6 in.(15 mm) 1/8 in. (ø3 mm) Note: Do not use wall anchor for [Not Included] wood stud installation Step 3b-2 Drill 4 pilot holes using a Step 3b-1 Position the CPU 1/8 in.(3 mm) diameter drill bit. Make sure holder [A] at your desired the depth is not less than 0.6 in.(15mm).
- Page 6 Step 3c For Concrete Wall Installation Option 1.6 in.(40 mm) 1/4 in. Note: Be sure the anchors [D] are (ø6 mm) seated flush with the concrete [Not Included] surface. Step 3c-2 Drill 4 pilot holes using a 1/4 in.(6 mm) diameter drill bit. Make sure the Step 3c-1 Position the CPU holder [A] depth is not less than 1.6 in.(40 mm).
- Page 7 Step 4 Put CPU into the CPU Holder Loosen the Knobs [K] to Increase the Width of the CPU Holder [A], Step 4-1 Then Put CPU into the CPU Holder [A] Adjust the Width of CPU Holder [A] According to the Width of CPU, Step 4-2 Then Tighten the Knobs [K]...
- Page 8 Thank you again for choosing this HUANUO product! All of us at HUANUO do appreciate your product purchase. We hope that you are as happy with your product as we designing and manufacturing it for you. We strive to provide you with the best quality products and services in the industry.
