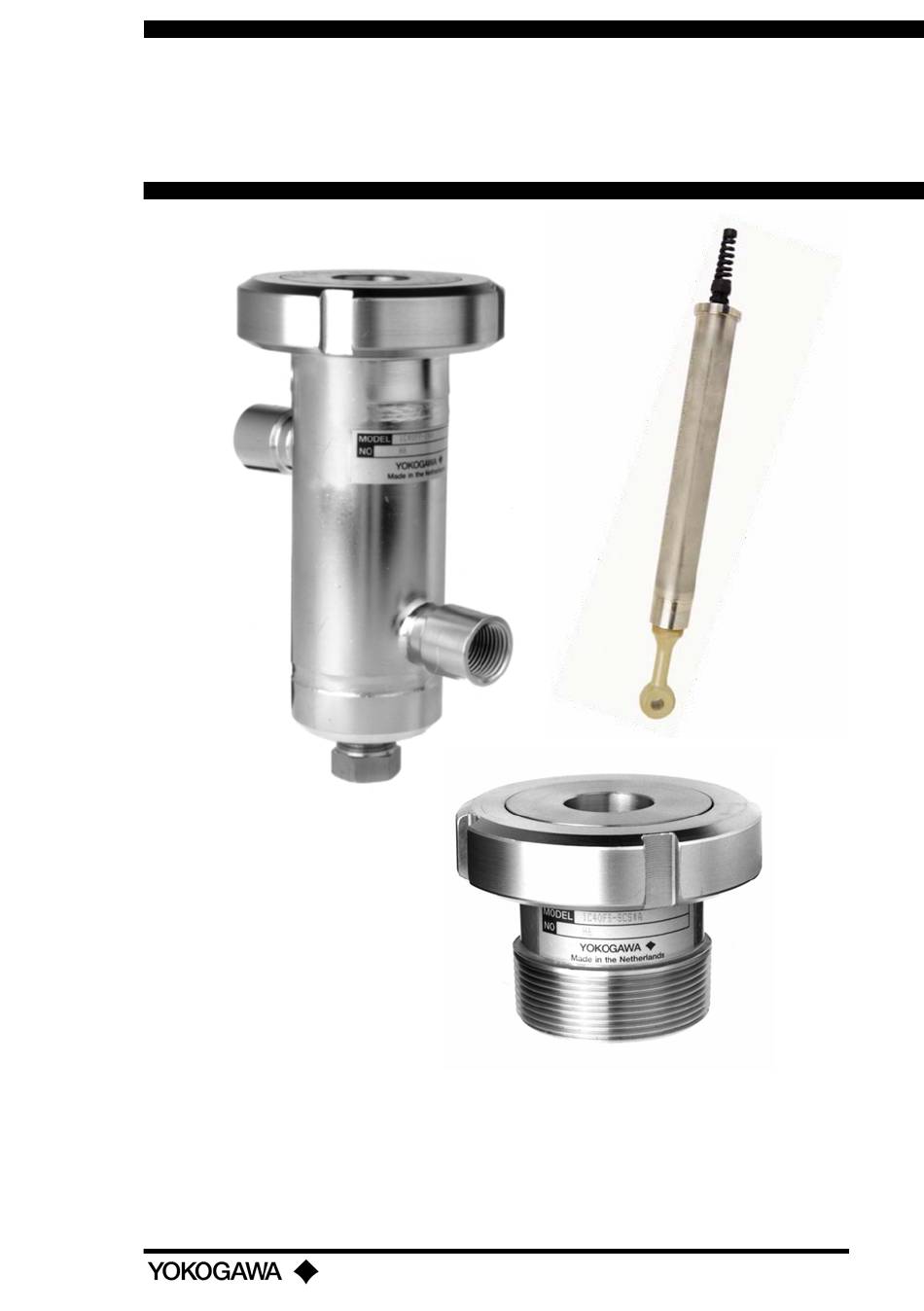

- Page 1 User’s Model ISC40FF, ISC40FS, ISC40FD Sensor fitting Manual IM 12D07K04-01EN-P edition...
- Page 2 IM 12D07K04-01EN-P...
-
Page 3: Table Of Contents
2.1.2 Operating range .................. 6 2.1.3 Shipping details (Without options) ............ 6 2.1.4 Process connections ................6 2.2 INSTALLATION OF ISC40 SENSOR IN ISC40FF ........7 2.3 DIMENSIONS ................... 8 2.4 MODEL CODE ISC40FF FITTING ............10 2.5 SPARE PARTS ISC40FF FITTING ............11 3. -
Page 4: Preface
1. PREFACE 1.3 Warranty and Service 1.1 Introduction Yokogawa products and parts are guar- The sensor fitting program for inductive anteed free from defects in workman- conductivity measurement model ISC40 ship and material under normal use is designed to meet the most common... -
Page 5: Serial Number
1.4 Serial number The Serial number is defined by nine (9) alphanumeric characters: Production location Year/Month code Tracking number Example: N3P400123 Table 1: Production Year code Table 2: Production Month code Year Year Year Year code code Month Month code January 2014 2026... -
Page 6: Isc40Ff Flow Fitting
The ISC40 sensor type -GG and -TG are supplied with a Viton gasket. This gasket may be used with the older series of ISC40FF fittings. It should be discarded when the sensor is mounted in combination with the ISC40FF type -PA and -FA. -
Page 7: Installation Of Isc40 Sensor In Isc40Ff
2.2 INSTALLATION OF ISC40 SENSOR IN ISC40FF Installation of the flow fittings involves two steps: • Installation of the sensor The sensor has to be mounted in the flow fitting. It is important that the position of the sensor in the fitting allows easy flow through the hole of the sensor donut (refer to Section 3 of ISC40 manual). -
Page 8: Dimensions
Dimensions in mm (inches) Stainless steel /FF1 PVDF /FP1 Polypropylene Stainless steel ISC40FF-FA ISC40FF-PA /FF2 PVDF /FP2 Polypropylene Stainless steel /FF3 PVDF /FP3 Polypropylene Stainless steel Flange “wall“ distance /FF4 PVDF Figure 3: Flow fitting ISC40FF-P, ISC40FF-F /FP4 Polypropylene IM 12D07K04-01EN-P... - Page 9 /FS1 SS ISC40FF-SA /FS2 SS /FS3 SS Flange “wall“ distance Figure 4: Flow fitting ISC40FF-S /FS4 SS IM 12D07K04-01EN-P...
-
Page 10: Model Code Isc40Ff Fitting
2.4 MODEL CODE ISC40FF FITTING Table 3: Model and suffix code table Model Suffix Code Option Description ISC40FF Flow fitting for inductive conductivity Polyvinylidenefluoride (PVDF) Polypropylene (PP) Material Stainless steel AISI 316 (SS) Process connection A Screw thread acc to ANSI / ASME NPT... -
Page 11: Spare Parts Isc40Ff Fitting
2.5 SPARE PARTS ISC40FF FITTING Options ISC40FF Flow fitting, flange adapters Part no. Description Process connection Material O-ring(s) K1521AL /FF1 DN15 PN10 Viton Viton K1521AP /FF2 DN25 PN10 Silicon Viton K1521AE /FF3 ANSI ½” - 150lbs Kalrez Viton K1521AH /FF4 ANSI 1”-150lbs... -
Page 12: Isc40Fs Flow Fitting Subassembly
3. ISC40FS FLOW FITTING SUBASSEMBLY 3.1 General Specifications 3.1.1 Materials Model ISC40FS-FCSA : PVDF (Kynar); Viton Model ISC40FS-PCSA : Polypropylene; Viton Model ISC40FS-SCSA : AISI 316 SS; Viton Model ISC40FS-SCWN : AISI 316 SS; Viton Non-wetted parts sensor : AISI 304 SS 3.1.2 Operating range Temperature Model ISC40FS-FCSA... -
Page 13: Installation Of Isc40 Sensor In Isc40Fs
3.2 INSTALLATION OF ISC40 SENSOR IN ISC40FS The key difference between a sensor adapter and a subassembly is, that with subas- sembly installation the sensor can be removed from the process installation without removing the subassembly first. This allows easier access to the sensor for mainte- nance activities. -
Page 14: Dimensions
3.3 DIMENSIONS Dimensions in mm (inches) Figure 7: Dimensions ISC40FS with sensor installed (dimensions in mm (inches)) IM 12D07K04-01EN-P... -
Page 15: Model Code Isc40Fs Flow Fitting Subassembly
3.4 MODEL CODE ISC40FS FLOW FITTING SUBASSEMBLY Table 4: Model and suffix code table Model Suffix Code Option Description ISC40FS inductive conductivity flow fitting, subassembly Polyvinylidenefluoride (PVDF) Material Polypropylene (PP) Stainless steel (SS) Process 2” coupling screw-in connection coupling weld acc to DIN 11851 (only for -S) Screw thread screw thread acc to ANSI / ASME (only for -CS) -
Page 16: Spare Parts Isc40Fs Flow Fitting Subassembly
3.5 SPARE PARTS ISC40FS FLOW FITTING SUBASSEMBLY Parts ISC40FF Flow fitting Part no. Description Dimensions Material O-ring(s) K1541KD Holder+O-rings 2” PVDF Viton K1541KL Holder+O-rings 2” Polypropylene Viton K1541KA Holder+O-rings 2” AISI 316 SS Viton Note: Other O-ring materials are available as sparepart Parts ISC40FS subassembly Part no. -
Page 17: Isc40Fd Immersion Fitting
4. ISC40FD IMMERSION FITTING 4.1 General Specifications 4.1.1 Materials Wetted parts without options Model ISC40FD-S : AISI 316 SS, Viton Model ISC40FD-V : PVC-C, Viton Flange ISC40FD-S-**-SF* : AISI 316 SS Non-wetted parts sensor Tube pigtail : plastic 4.1.2 Operating range Temperature Model ISC40FD-S : Max. -
Page 18: Installation Of Isc40 Sensor In Isc40Fd
4.2 INSTALLATION OF ISC40 SENSOR IN ISC40FD Installation of the immersion fittings involves two steps: • Installation of the sensor The sensor has to be mounted in the immersion fitting (see Figure 8). • Installation in the application On a railing or stanchion »... -
Page 19: Dimensions Isc40Fd
Figure 10: Option /FA Alternative ways of mounting the immersion fitting are: • Guide pipe To facilitate this type of mounting the immersion fitting has a larger diameter at the top. The user supplied guide pipe (internal diameter > 52 mm) is fitted to the wall or mounting rail. - Page 20 Figure 12: Pipe mounting set - option /MS1 Figure 13: Adjustable flange - option /FA Figure 14: Protection hose, option /PH5, /PH10 IM 12D07K04-01EN-P...
-
Page 21: Model Code Isc40Fd
4.4 MODEL CODE ISC40FD Table 5: Model and suffix code table Model Suffix Code Option Description ISC40FD immersion fitting Stainless steel AISI 316 (SS) Material Polyvinylchloride (PVC) 0.5 meter 0.6 m 0.7 m 0.8 m 0.9 m 1.0 m 1.1 m 1.2 m Length 1.3 m... -
Page 22: Spare Parts Isc40Fd
4.5 SPARE PARTS ISC40FD Options ISC40FD Flow fitting Part no. Description Process connection Material K1541ZY /MS1 Carbon steel K1520EV DN50 PN10; ANSI 2” lbs K1500CJ /PH5 PVC, PA6.6 K1500CK /PH10 PVC, PA 6.6 O-rings ISC40FD Immersion fitting Part no. Description Dimensions O-rings -S Material Quantity... -
Page 23: Chemical Compatibility
5. CHEMICAL COMPATIBILITY Table 6: Chemical compatibility chart IM 12D07K04-01EN-P... - Page 24 IM 12D07K04-01EN-P Subject to change without notice Copyright© Printed in The Netherlands, 01-2202...
