IMPORTANT: Do not install or use this
M9203-AGx-2(Z) Series On/Off and Floating Point
Electric Spring Return Actuator in or near
environments where corrosive substances or vapors
could be present. Exposure of the electric actuator
to corrosive environments may damage the internal
components of the device, and will void the
warranty.
Dimensions
6-3/8
(162)
4-55/64
(123.6)
1-1/8
(28.7)

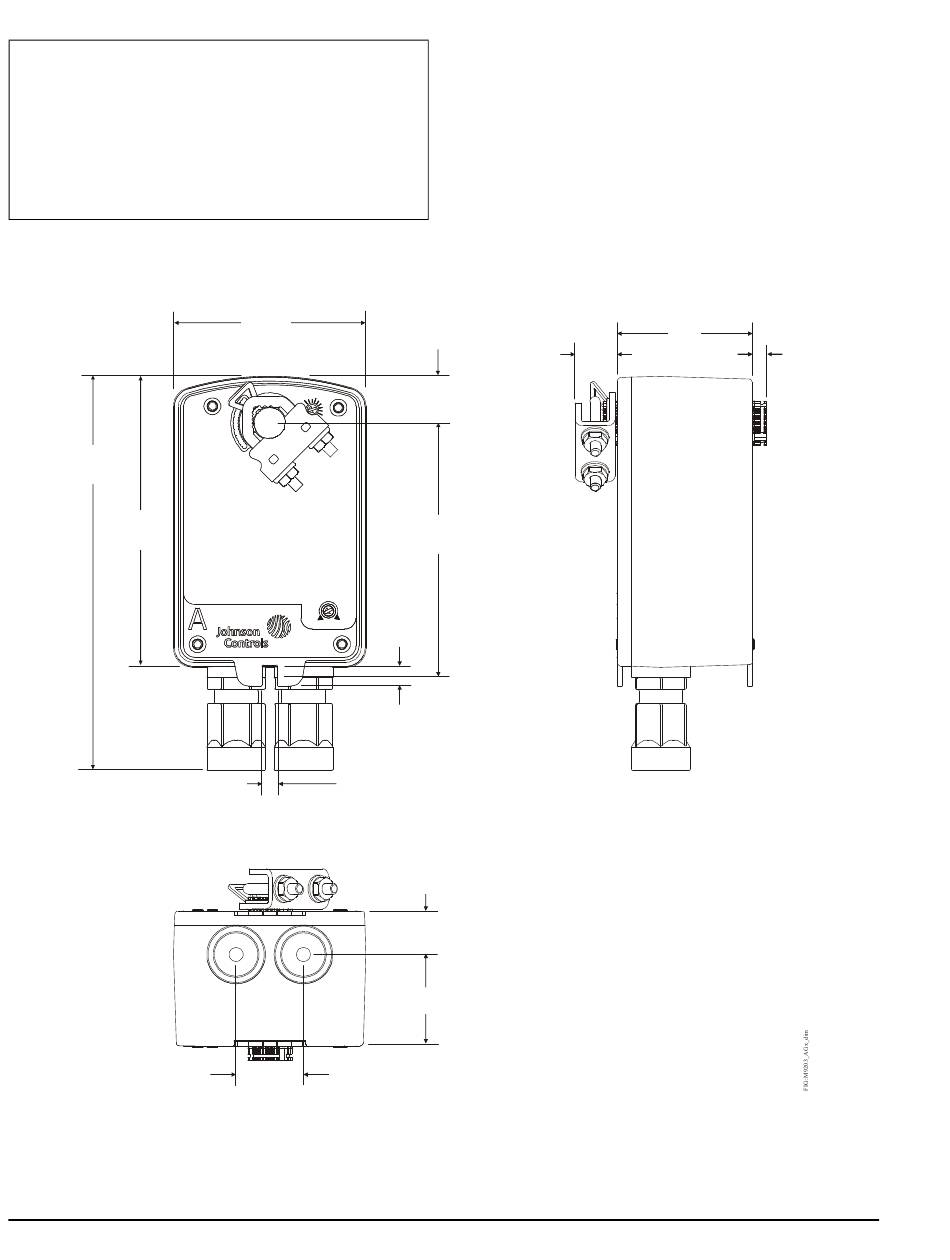

Figure 1: M9203-AGx-2 Series On/Off and Floating Point Electric Spring Return Actuator
2 M9203-AGx-2(Z) Series On/Off and Floating Point Electric Spring Return Actuators Installation Guide
3-15/16
(82)
25/32
10 30 10 30
50 50
70 70
90 90
4-15/64
(107.5)
RA RA
DA DA
5/16 (8) Slot Length
1/4 (6.5) Slot Width
47/64
(18.7)
1-35/64
(39.2)
Dimensions, in. (mm)
Parts Included
• M9203-AGx-2(Z) actuator
• M9203-603 adjustable stop kit
• M9000-604 anti-rotation bracket with two
No. M3.5 x 9.5 mm, pan-head, cross-recessed
(Phillips), self-drilling and self-tapping screws
Special Tools Needed
• 10 mm wrench/socket
• drill with Phillips bit, driver size 1
45/64
(18)
(20)
2-1/4
(57.5)
15/64
(6)
